G-LINE Bergen
The G-Line Bergen is a sleek and modern side-mounted glass railing system designed for both residential and commercial applications.
Design allows for flexible installation on balconies, terraces and elevated walkways, providing unobstructed views and enhanced spatial openness. The Bergen system combines Scandinavian design principles with robust functionality. The powder-coated finish ensures long-lasting protection against weather elements.
- Description
- Glass options
- Installation
- Standards & Safety
- Packaging and Transport
- Documents and manuals
A sleek and durable aluminium glass railing system where safety glass panels are installed between the posts. Ideal for balconies and terraces, offering a transparent, modern appearance combined with strong structural performance.
Technical Specifications:
-
Standard height: depends on national regulations; minimum 1.0 m above the walking surface, maximum 1.1 m.
-
Post spacing: depends on local requirements and glass thickness.
-

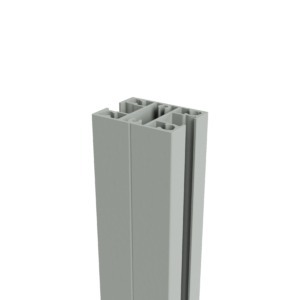

Post profile dimensions: 45 × 60 mm.
-
Handrail dimensions: 51 × 43 mm or Ø 42.4 mm.
-
Glass thickness: nominal 8.76 mm laminated safety glass.
-
Total railing thickness: 51 mm.
The aluminium profiles are powder-coated for excellent corrosion resistance and long-lasting finish. Fasteners are uncoated, allowing easy maintenance or replacement when required.
- Clear glass: Maximum transparency and light transmission
- Toned glass: Subtle tint for reduced glare and enhanced privacy
- Opal glass: Frosted finish for privacy while maintaining light flow
Base Structure
Posts can be installed on either a concrete, timber or steelbase structure.
Installation Method

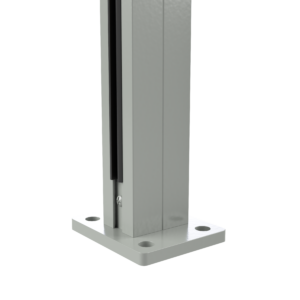

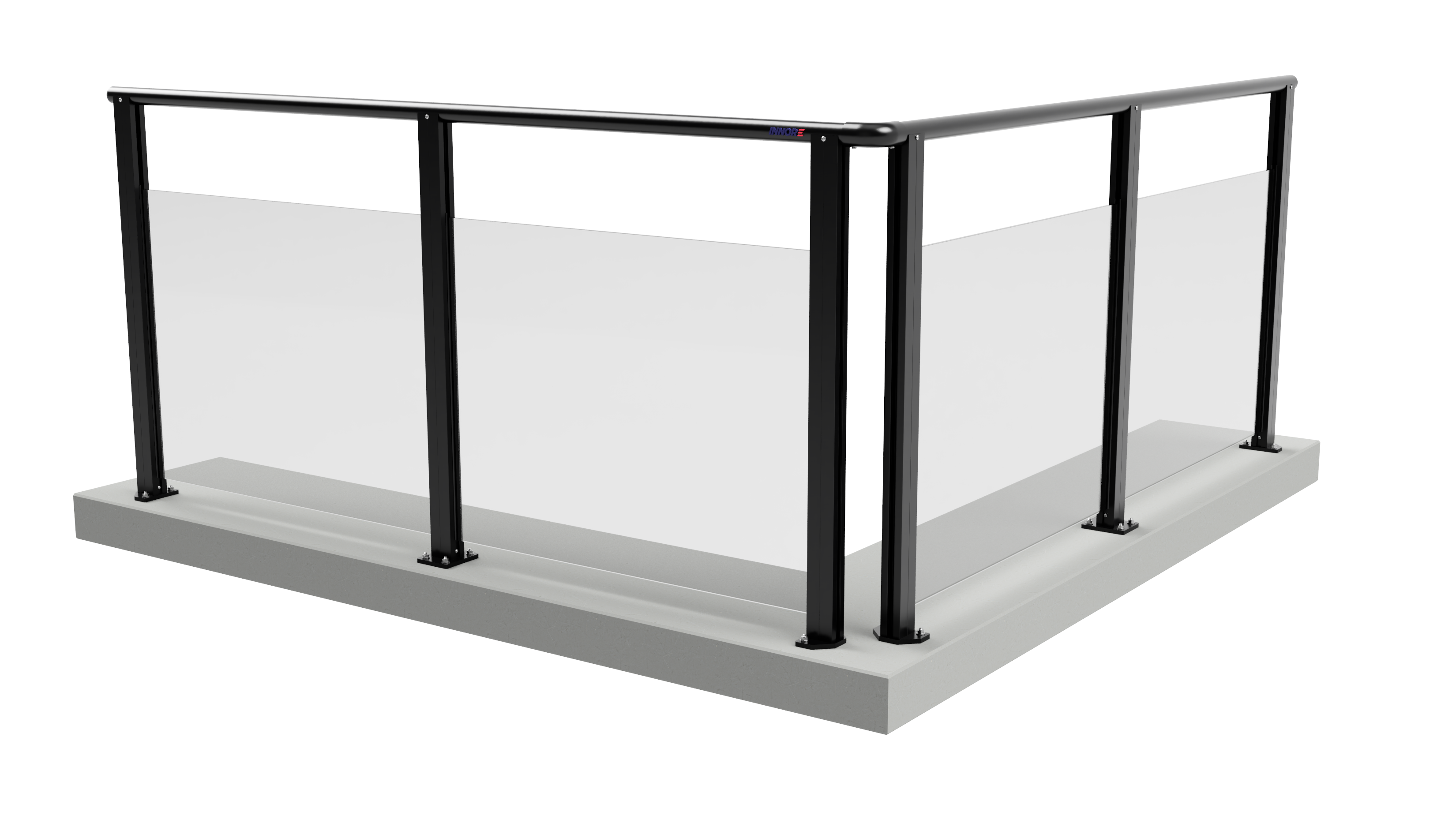

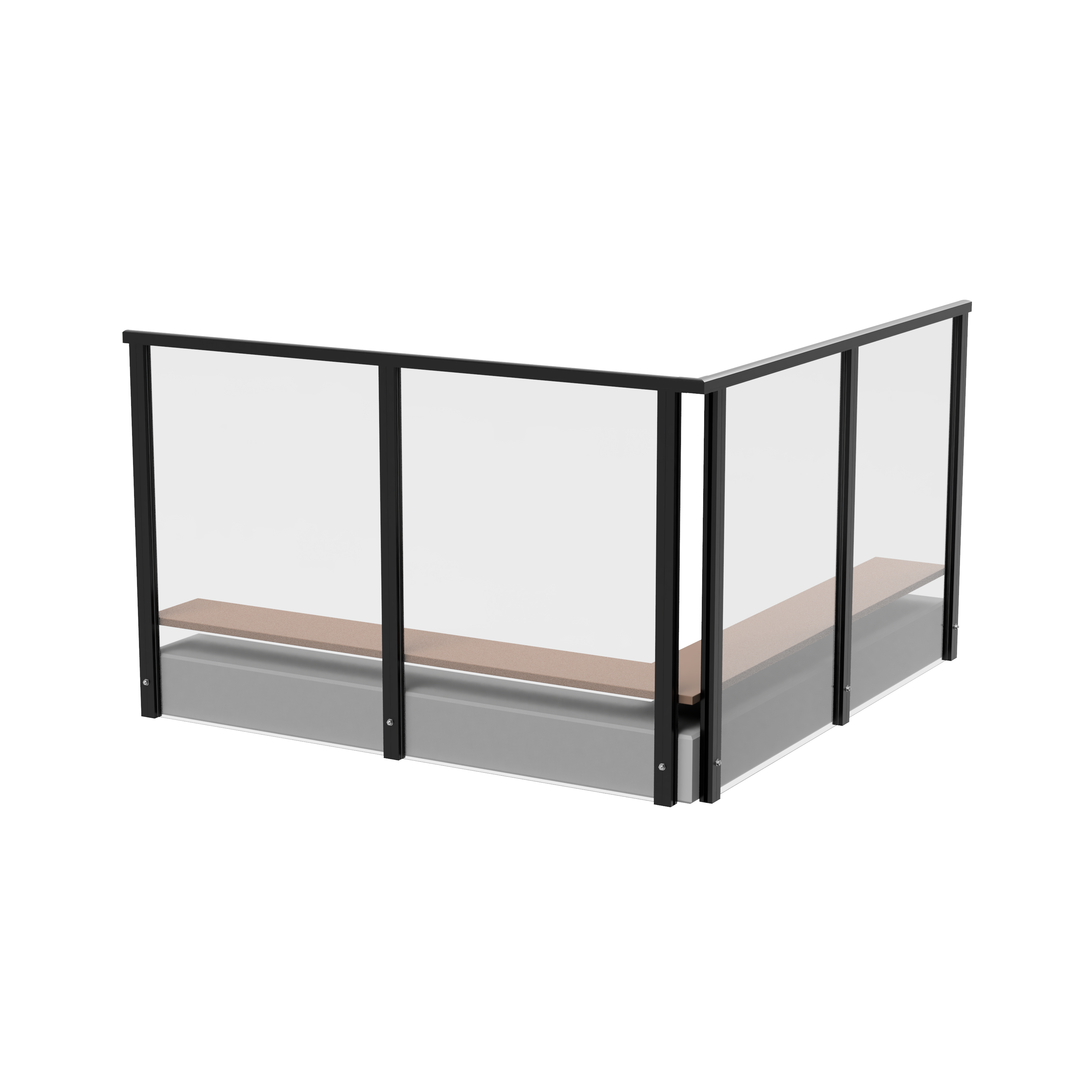

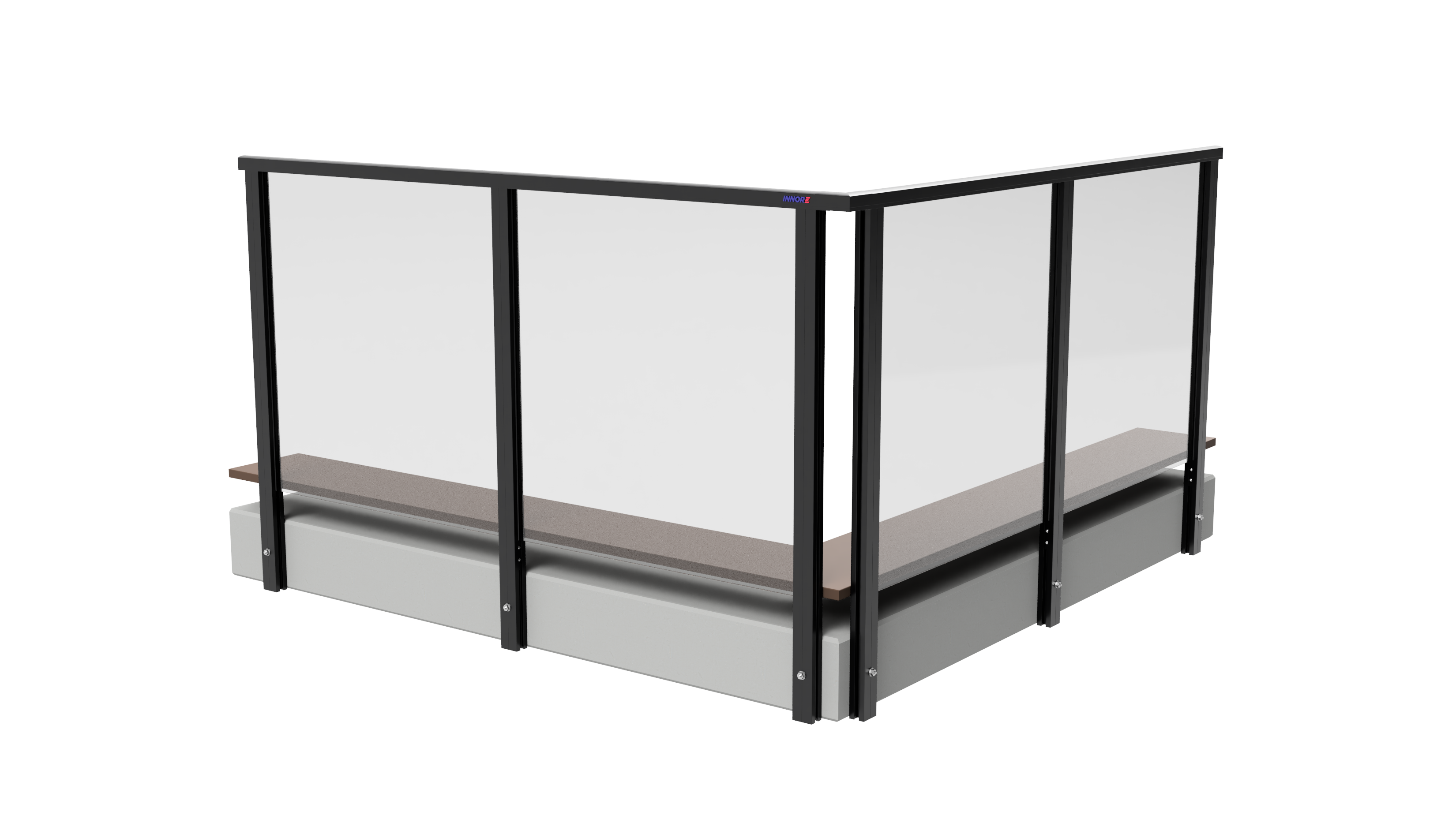

Posts may be mounted either from the side or from the top.
Concrete Base Requirements
The concrete must meet a minimum class of C25/30 according to EN 206 standard. The minimum concrete thickness is 160 mm, and the anchor embedment depth must be at least 200 mm. HILTI HSA-R M12×145 mm anchors are used for fixing, with one anchor per post.
Timber Structure Requirements
The timber structure must have a minimum height of 180 mm. The timber plate has a total thickness of 90 mm. Installation uses a Rothoblaas HBS PLATE EVO fastening kit measuring 10×140 mm (3 pieces) together with A4 M12 washers (3 pieces per post).
Installation manual
You can find installation manual here!
Our glass railing system fully complies with European safety standards and has been rigorously tested for impact resistance and structural integrity. The safety glass panels exceed impact resistance requirements, ensuring reliable protection against accidental impacts and weather exposure.
The system is engineered to withstand required safety loads and maintain structural integrity under real-world conditions, making it ideal for balconie and terraces.
Built with high-quality materials and precision engineering, these railings provide long-term durability and performance that meets European safety regulations.
The railing system arrives in wooden pallet designed specifically for safe transportation. Each component is individually secured and separated within the crate to minimize movement and protect against damage during shipping. Proper securing of all packages during transport is essential to prevent load shifting and potential harm to the products.
We recommend inspecting all packages upon arrival and following proper installation procedures to ensure the glass components remain intact and functional.
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
