G-LINE Oslo
The G-Line Oslo is a side or top-mounted aluminium glass railing system with 46×46 mm posts, 25×37 mm glass lath, and 8.76 mm laminated glass.
Powder-coated for long-term durability, the system provides modern aesthetics, strong structural performance, and excellent safety.
- Description
- Technical Specifications
- Materials
- Surface Finish
- Mounting Options
- Load-Bearing Capacity
- Transport
- Documents and manuals
The G-Line Oslo is a modern aluminium glass railing system where laminated or laminated & tempered safety glass is mounted between aluminium horizontal profiles and supported by 46×46 mm posts. Designed for balconies and terraces. The Oslo railing system offers a clean, minimalist look with excellent durability, safety, and weather resistance.
All visible aluminium components are powder-coated for ease of maintenance and long-term serviceability.
Optional Features
-
Glass tones: Clear, Opal, Bronze, Grey
-
Aluminium profiles: RAL powder-coating colours available
-
Standard height: Depends on national regulations; minimum 1.0 m above walking surface
-

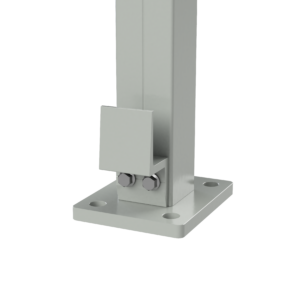

Post profile dimensions: 46×46 mm
-
Handrail dimensions: 51×43 mm, 82×35 mm, 25×37 mm horizontal profile
-
Horizontal profile dimensions: 25×37 mm
-
Glass thickness: Nominal 8.76 mm safety glass (EN 14449)
-
Total railing thickness: 51 mm
-
Post spacing: Determined according to local regulations and glass thickness requirements
-
Posts: Aluminium EN-AW 6005A-T6
-
Handrails: Aluminium EN-AW 6063-T66
-
Horizontal profile: Aluminium EN-AW 6063-T66
-
Glass: Laminated or laminated/tempered safety glass (EN 14449)
-
Anchors: Acid-resistant stainless steel A4(For fastening to concrete)
-
Timber-screws: Carbon steel, corrosion class C4(For fastening to timber)
-
Aluminium profiles: Powder-coated (RAL colour range)
-
Glass finish: Visible edges polished; other edges edges are factory-ground
-
Fasteners: Not powder coated

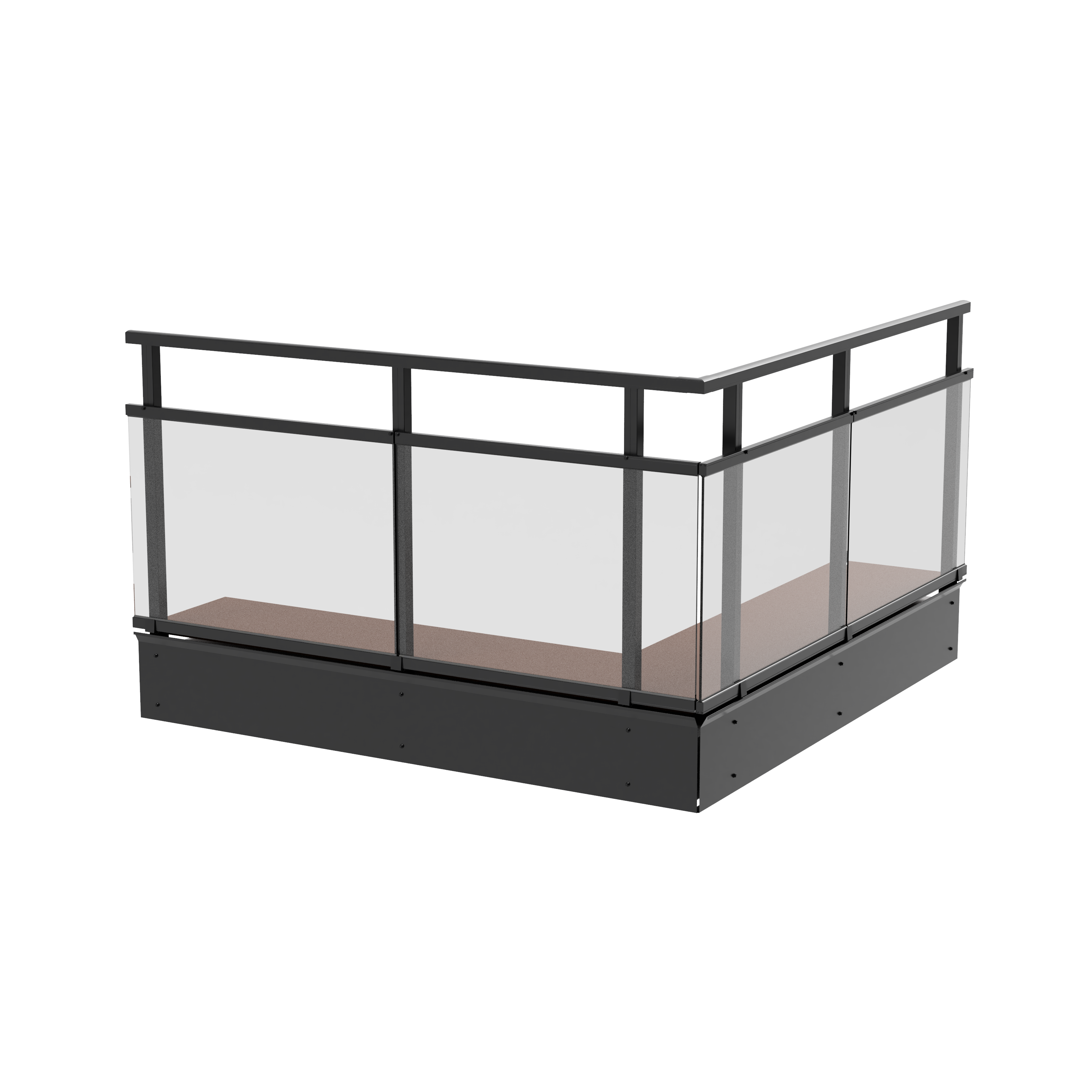

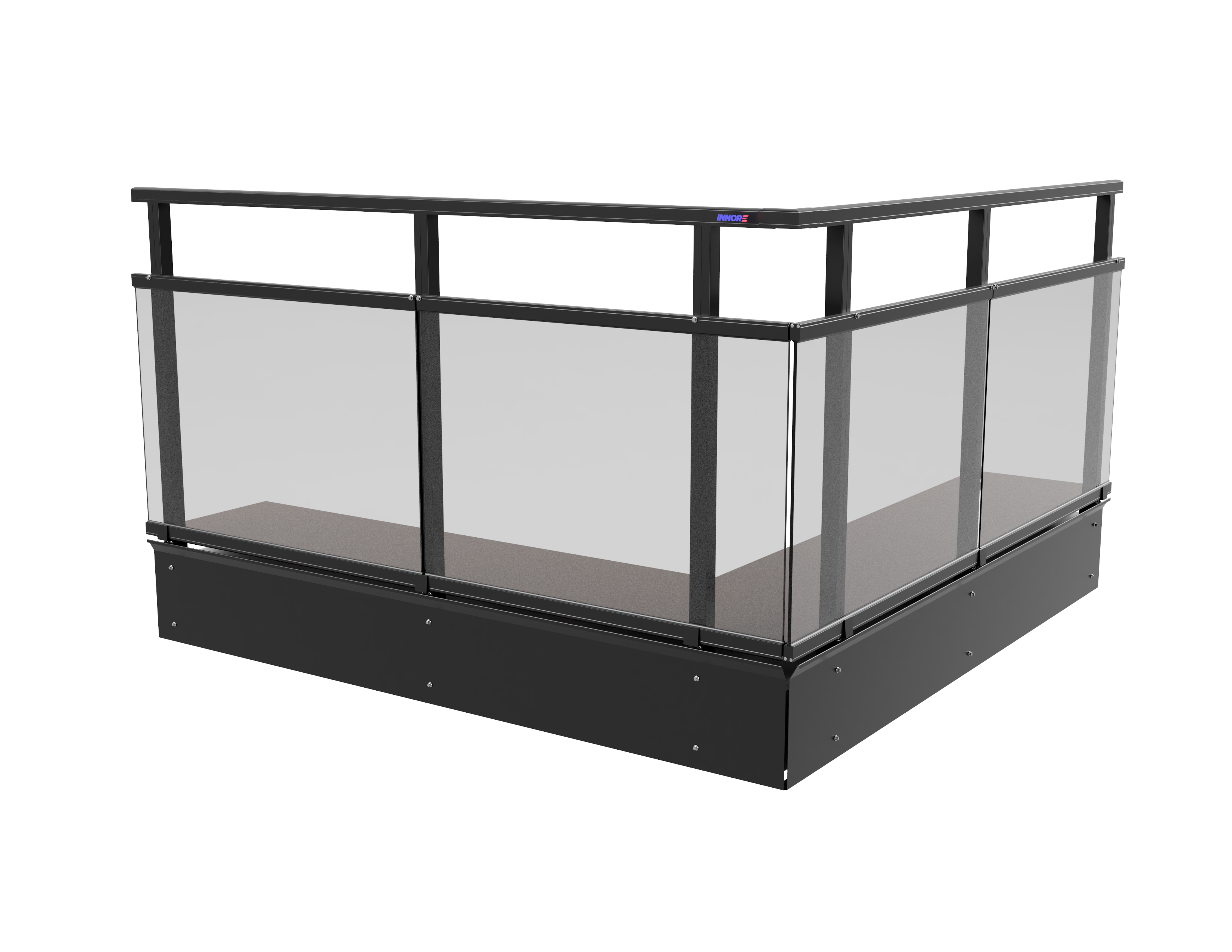

Side mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 200 mm
-
Minimum concrete height : 160 mm
-
Anchor type: Hilti HSA-R M12(For fastening to concrete)
-
Minimum timber structure height: 200 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas VGS EVO 11×100 mm(For fastening to timber)

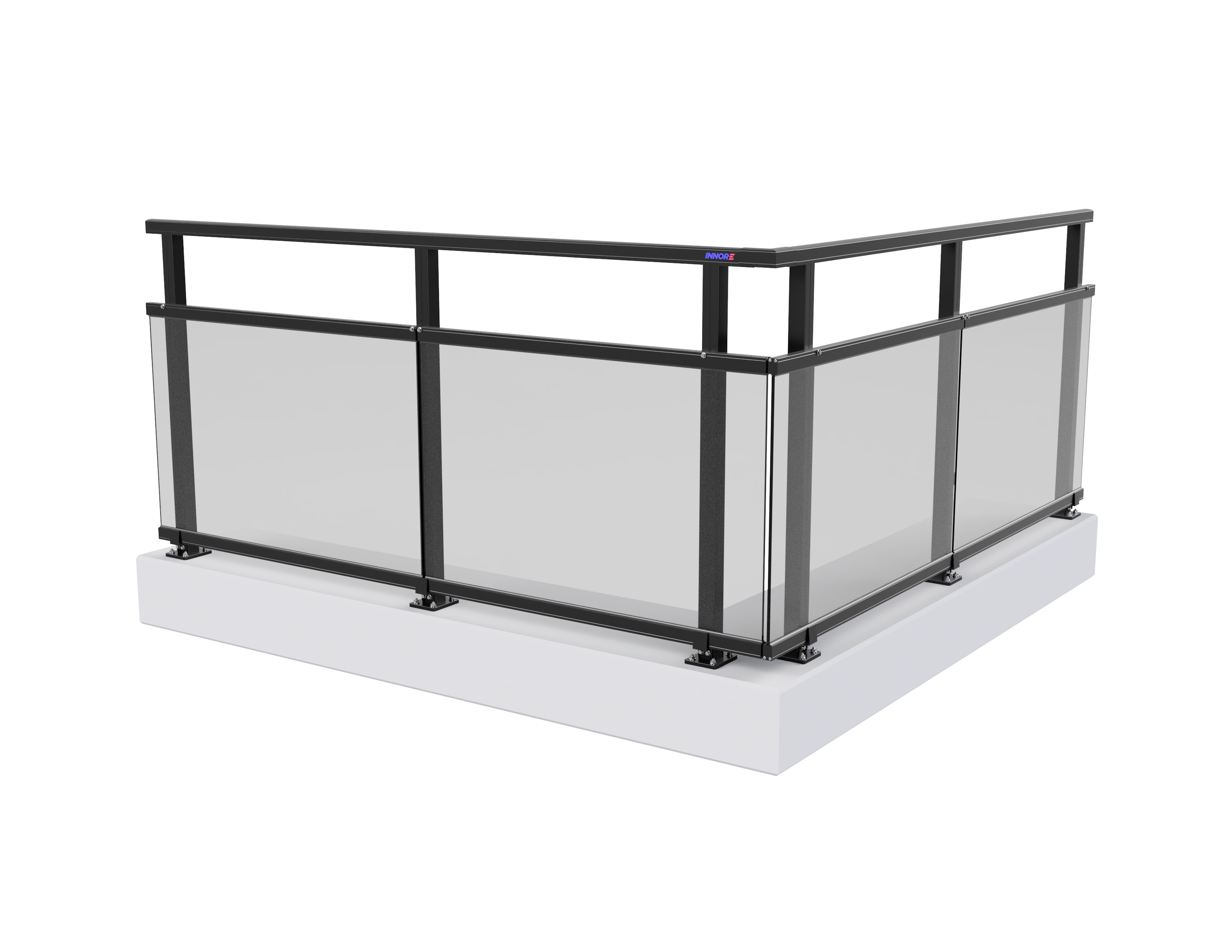

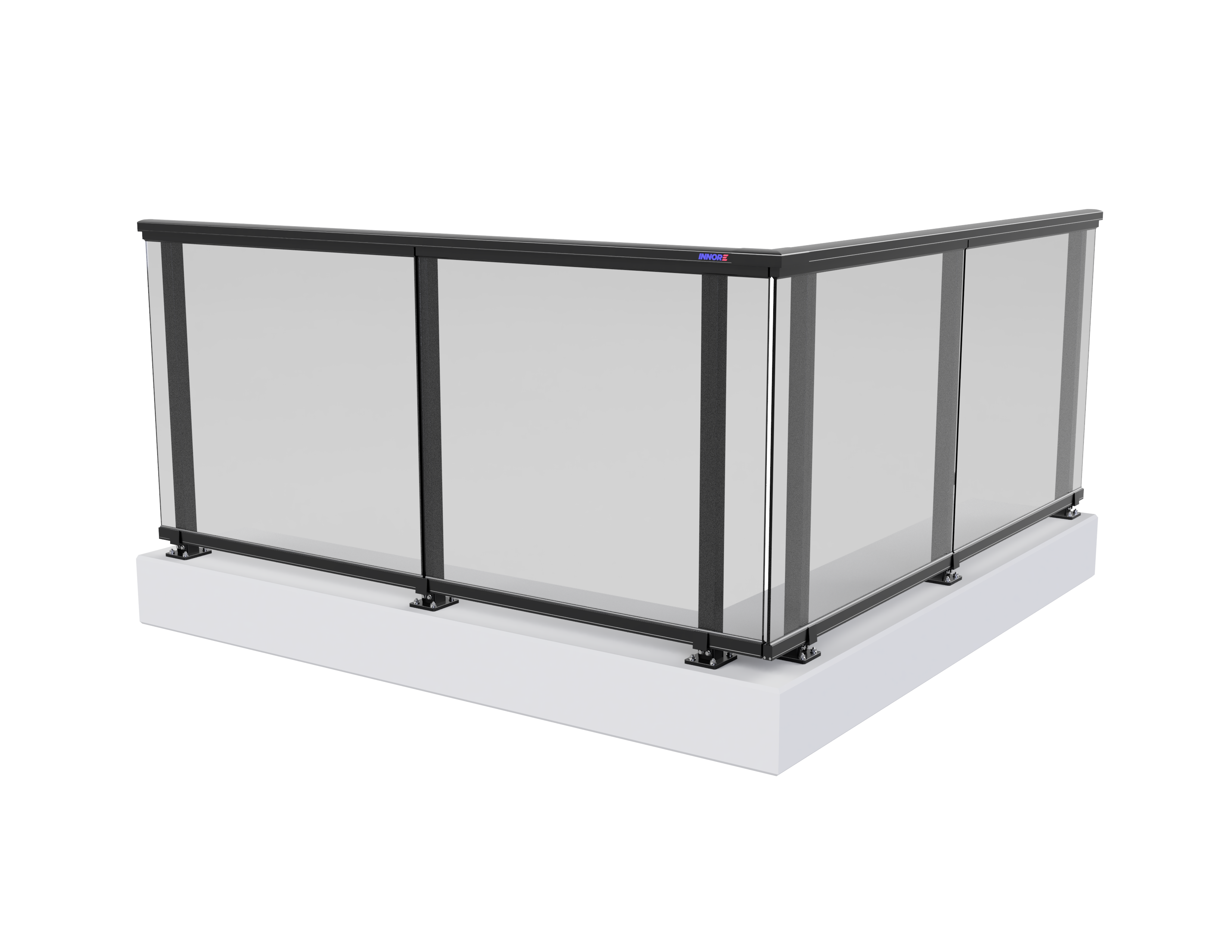

Top-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 150 mm
- Minimum concrete structure height: 90mm
-
Anchor type: Hilti HSA-R M8 (For fastening to concrete)
-
Minimum timber structure height: 180 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas HBS PLATE EVO (For fastening to timber)
Parabet-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness:90 mm
- Minimum concrete structure height: 180mm
-
Anchor type: Hilti HSA-R M12 (For fastening to concrete)
-
Minimum timber structure height: 180 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas HBS PLATE EVO (For fastening to timber)
-
Compliance standards: EN 1991-1-1, EN 1999-1-1, EN 1990
-
Post bending resistance: Rd = 2.5 kNm
-
Maximum line load (handrail): Qk = 1.0 kN/m (calculated for 1.2 m height according to NS 3510)
-
Maximum point load: Qk = 1.0 kN
-
Pendulum impact resistance: 2(B)2 (EN 12600:2002)
The railing system arrives in wooden pallet designed specifically for safe transportation. Each component is individually secured and separated within the crate to minimize movement and protect against damage during shipping. Proper securing of all packages during transport is essential to prevent load shifting and potential harm to the products.
We recommend inspecting all packages upon arrival and following proper installation procedures to ensure the glass components remain intact and functional.
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
