A-LINE Molde
The A-Line Molde is a powder-coated aluminium railing system featuring vertical 20×40 mm vertical profiles and a 26×48 mm profile structure. Designed for installation on concrete or wood, it provides durable fall protection with a clean, modern architectural look.
- Description
- Technical Specifications
- Materials
- Surface Finish
- Mounting Options
- Load-Bearing Capacity
- Transport
- Documents and manuals
A-Line Molde is an aluminum railing system with vertical bars (20 × 40 mm) placed between horizontal aluminum profiles (26 × 48 mm). The system is designed for balconies and terraces where strong fall protection and a clearly structured visual appearance are required. Molde combines Scandinavian design, strong engineering and durable materials.
All aluminum components are powder coated, ensuring long-term resistance to UV radiation, moisture and corrosion.
-
Standard height: Depends on national regulations; minimum 1.0 m above walking surface
-
Post profile dimensions: 20×40 mm
-
Handrail dimensions: 26x48mm Horizontal profile
-
Horizontal profile dimensions: 26x48mm
-
Post spacing: Determined according to local regulations and glass thickness requirements
-
Posts: Aluminium EN-AW 6005A-T6
-
Handrails: Aluminium EN-AW 6063-T66
-
Horizontal profile: Aluminium EN-AW 6063-T66
-
Anchors: Acid-resistant stainless steel A4(For fastening to concrete)
-
Timber-screws: Carbon steel, corrosion class C4(For fastening to timber)
-
Aluminium profiles: Powder-coated (RAL colour range)
-
Fasteners: Not powder coated

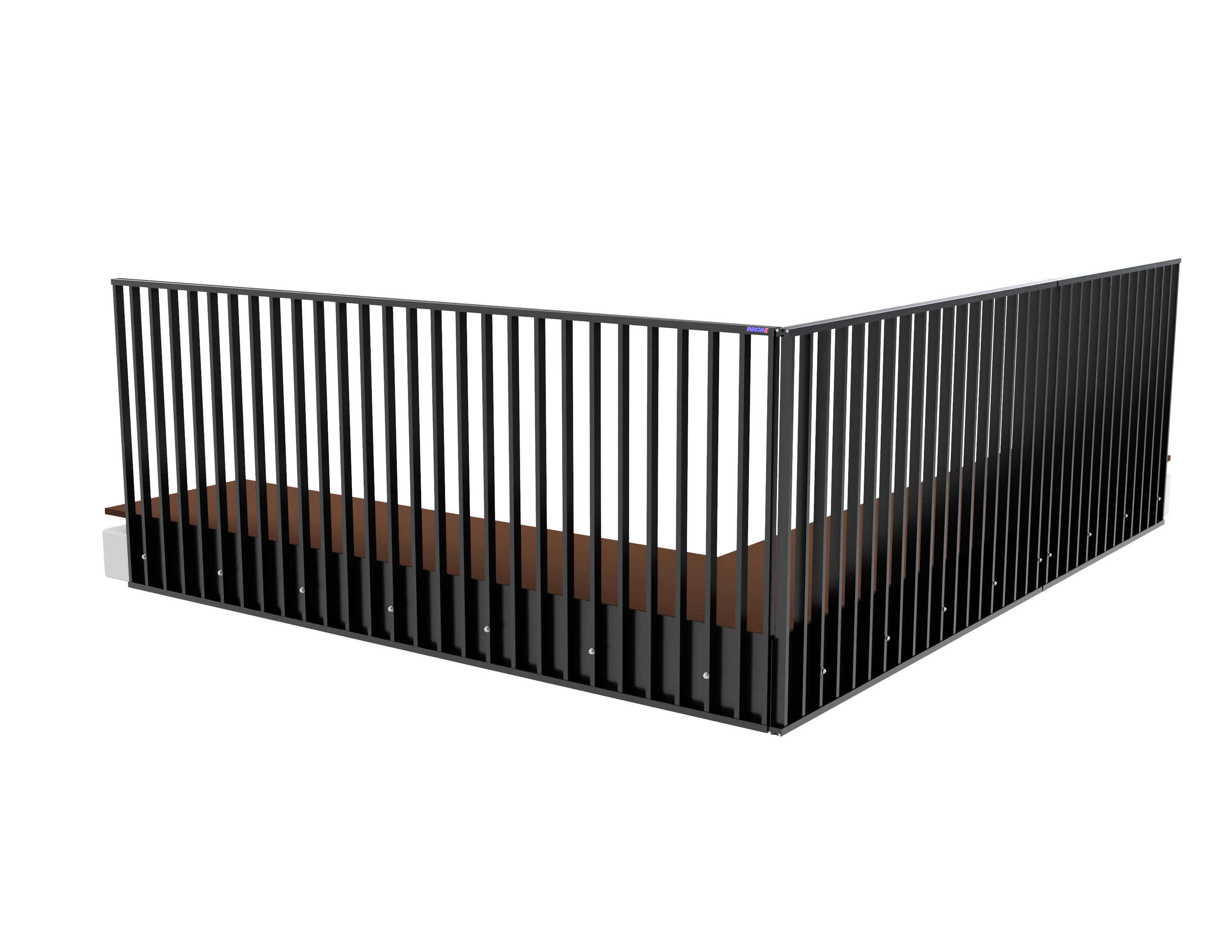

Side mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 160 mm
-
Minimum concrete height : 160 mm
-
Anchor type: Hilti HSA-R M10(For fastening to concrete)
-
Minimum timber structure height: 180 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas HBSP EVO(For fastening to timber)

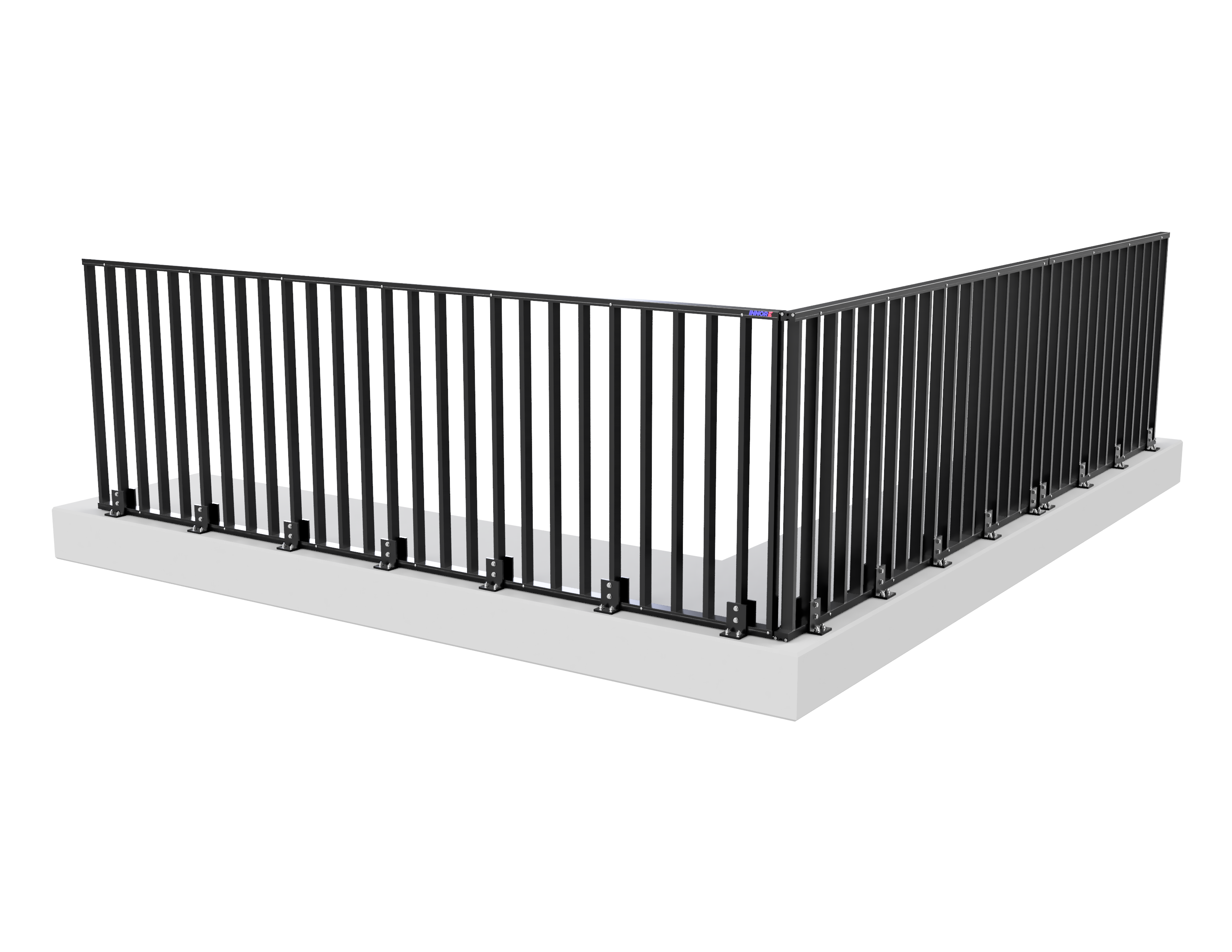

Top-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 200 mm
- Minimum concrete structure height: 130mm
-
Anchor type: Hilti HSA-R M8 (For fastening to concrete)
-
Minimum timber structure height: 148 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas HBS PLATE EVO (For fastening to timber)
Parabet-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness:120 mm
- Minimum concrete structure height: 350mm
-
Anchor type: Hilti HSA-R M10 (For fastening to concrete)
-
Minimum timber structure height: 180 mm
-
Timber structure thickness: 100 mm
-
Timber fixing set: Rothoblaas TBS EVO (For fastening to timber)
-
Compliance standards: EN 1991-1-1, EN 1999-1-1, EN 1990
-
Post bending resistance: Rd = 2.5 kNm
-
Maximum line load (handrail): Qk = 1.0 kN/m (calculated for 1.2 m height according to NS 3510)
-
Maximum point load: Qk = 1.0 kN
-
Pendulum impact resistance: 2(B)2 (EN 12600:2002)
The railing system arrives in wooden pallet designed specifically for safe transportation. Each component is individually secured and separated within the crate to minimize movement and protect against damage during shipping. Proper securing of all packages during transport is essential to prevent load shifting and potential harm to the products.
We recommend inspecting all packages upon arrival and following proper installation procedures to ensure the glass components remain intact and functional.
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
