A-LINE Bodo
The A-Line Bodo is a sleek and modern side-mounted aluminium railing system developed for residential and commercial use. Its design allows for flexible installation on balconies and terraces, offering a safe and stylish solution that complements contemporary architecture.
- Description
- Technical Specifications
- Materials
- Surface Finish
- Mounting Options
- Load-Bearing Capacity
- Transport
- Documents and manuals
The A-LINE BODO is an aluminium railing system featuring vertical pickets (20×20 mm) mounted on horizontal aluminium profiles (34×29 mm). The railing is assembled to the 46x46mm posts. Bodo railing is side-, top- or parapet-mounted to the structure, offering a clean and modern appearance while maintaining excellent strength and durability.
All aluminium components are powder-coated for long-lasting corrosion protection. The system is ideal for balconies, terraces, and public areas where both safety and design are essential.
-
Standard height: Depends on national regulations; minimum 1.0 m above walking surface
-

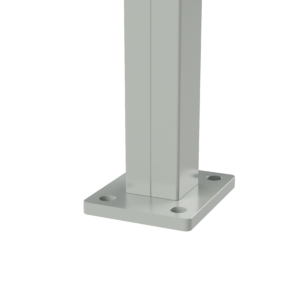

Post profile dimensions: 46×46 mm
- Vertical pickets: 20×20 mm
-
Handrail dimensions: 51×43 mm, 82×35 mm, 34×29 mm horizontal profile
-
Horizontal profile dimensions: 34×29 mm
-
Post spacing: Determined according to local regulations
-
Posts: Aluminium EN-AW 6005A-T6
-
Handrails: Aluminium EN-AW 6063-T66
-
Horizontal profile: Aluminium EN-AW 6005A-T6
- Vertical pickets: Aluminium EN-AW 6005A-T6
-
Anchors: Acid-resistant stainless steel A4(For fastening to concrete)
-
Timber-screws: Carbon steel, corrosion class C4(For fastening to timber)
-
Aluminium profiles: Powder-coated (RAL colour range)
-
Fasteners: Not powder coated

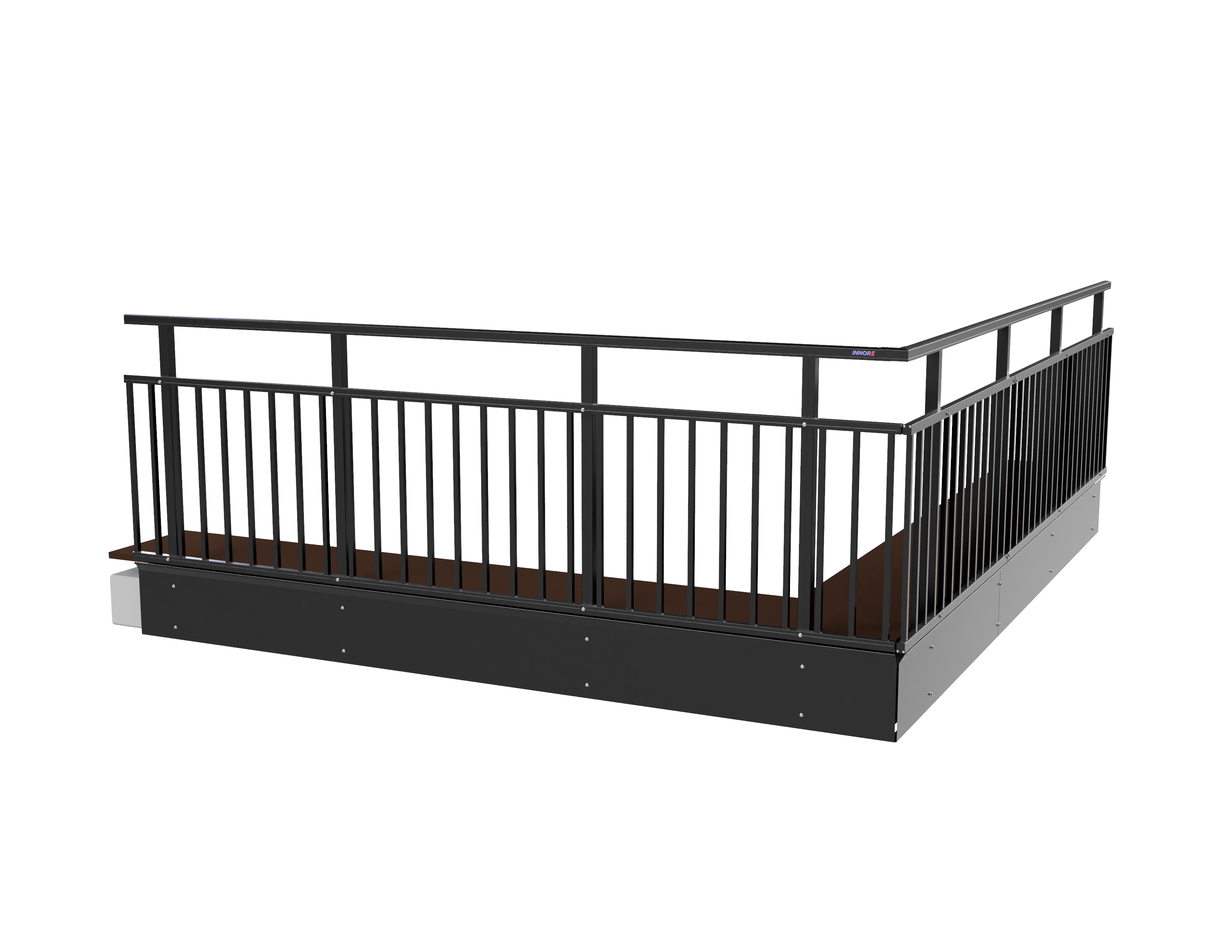

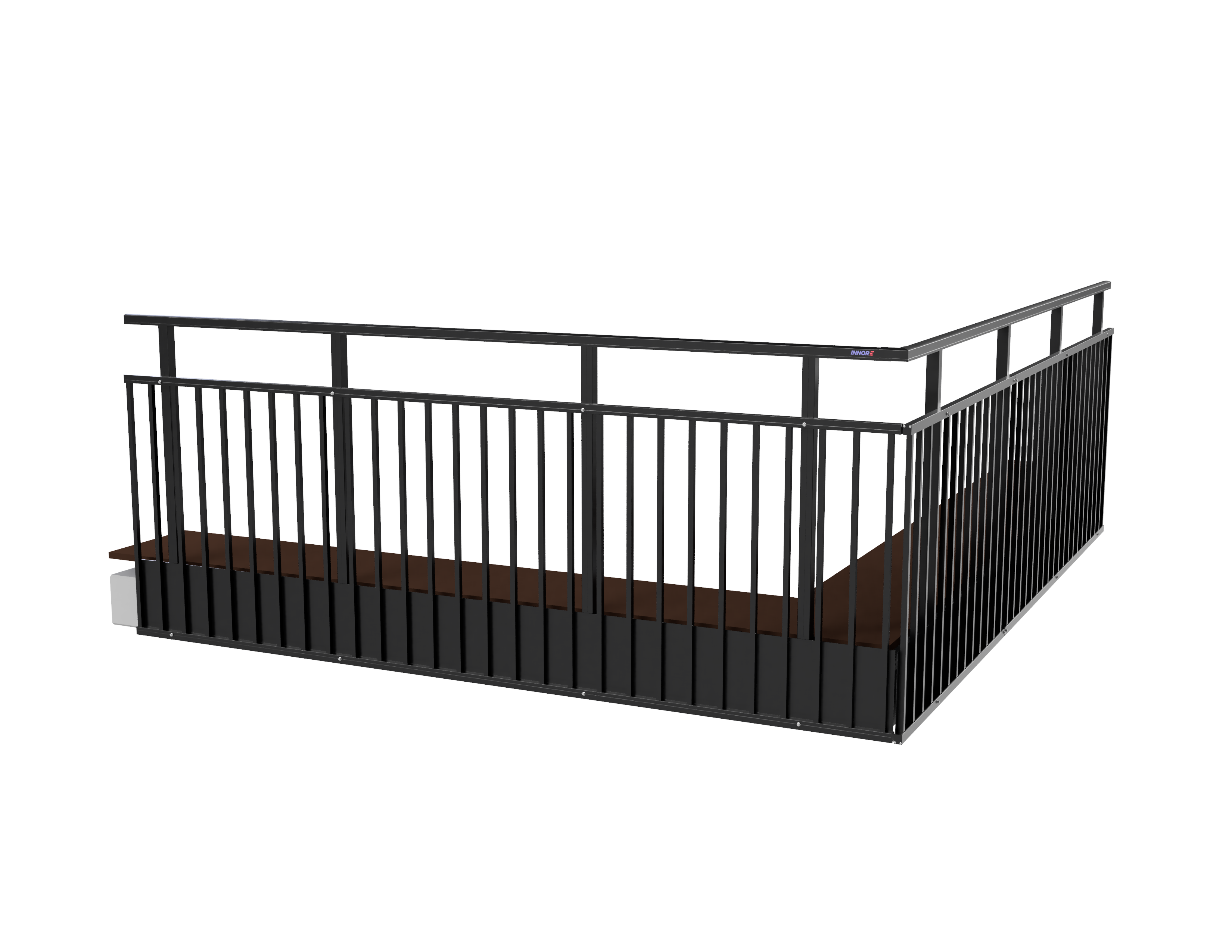

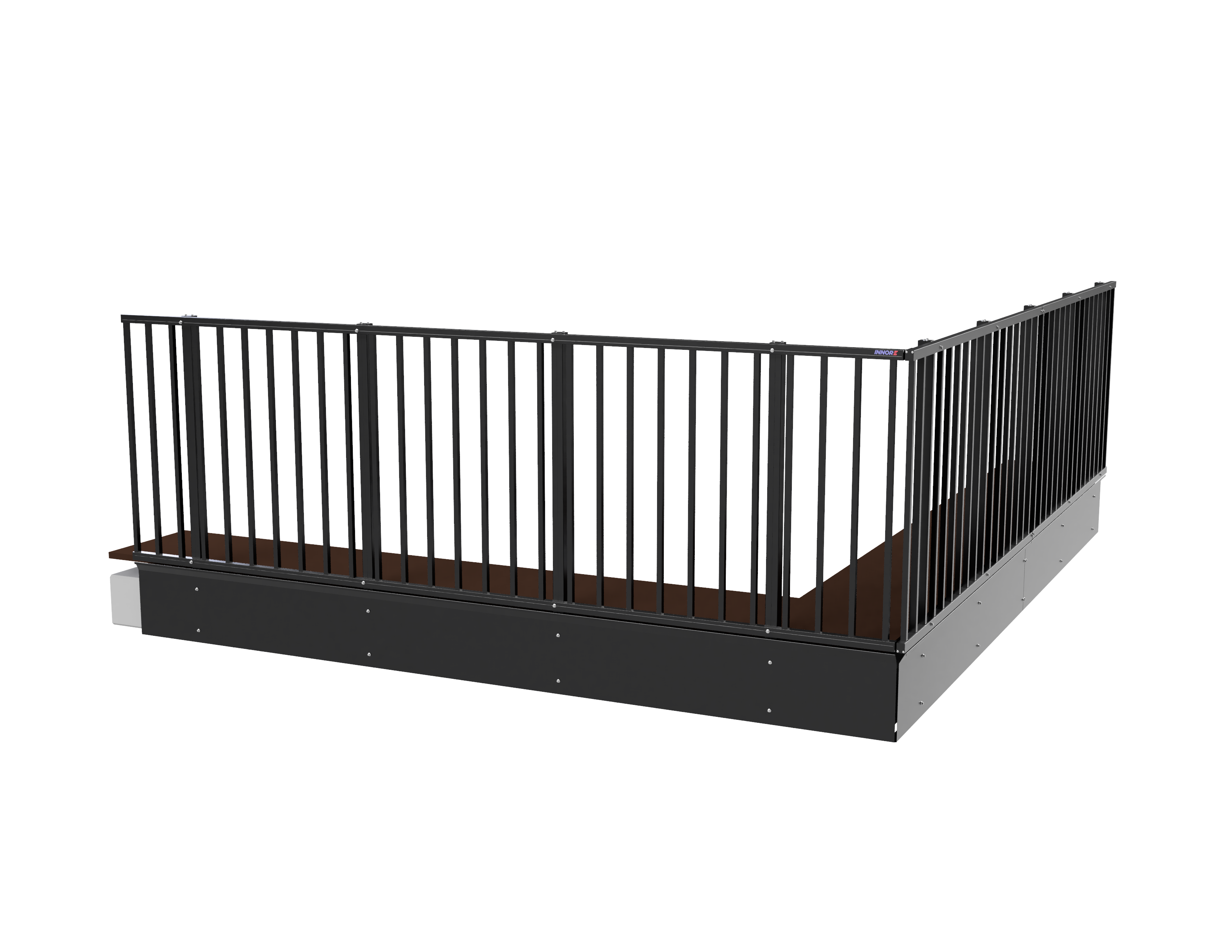

Side mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 180 mm
-
Minimum concrete height : 160 mm
-
Anchor type: Hilti HSA-R M12(For fastening to concrete)
-
Minimum timber structure height: 190 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas VGS EVO 11×100 mm(For fastening to timber)

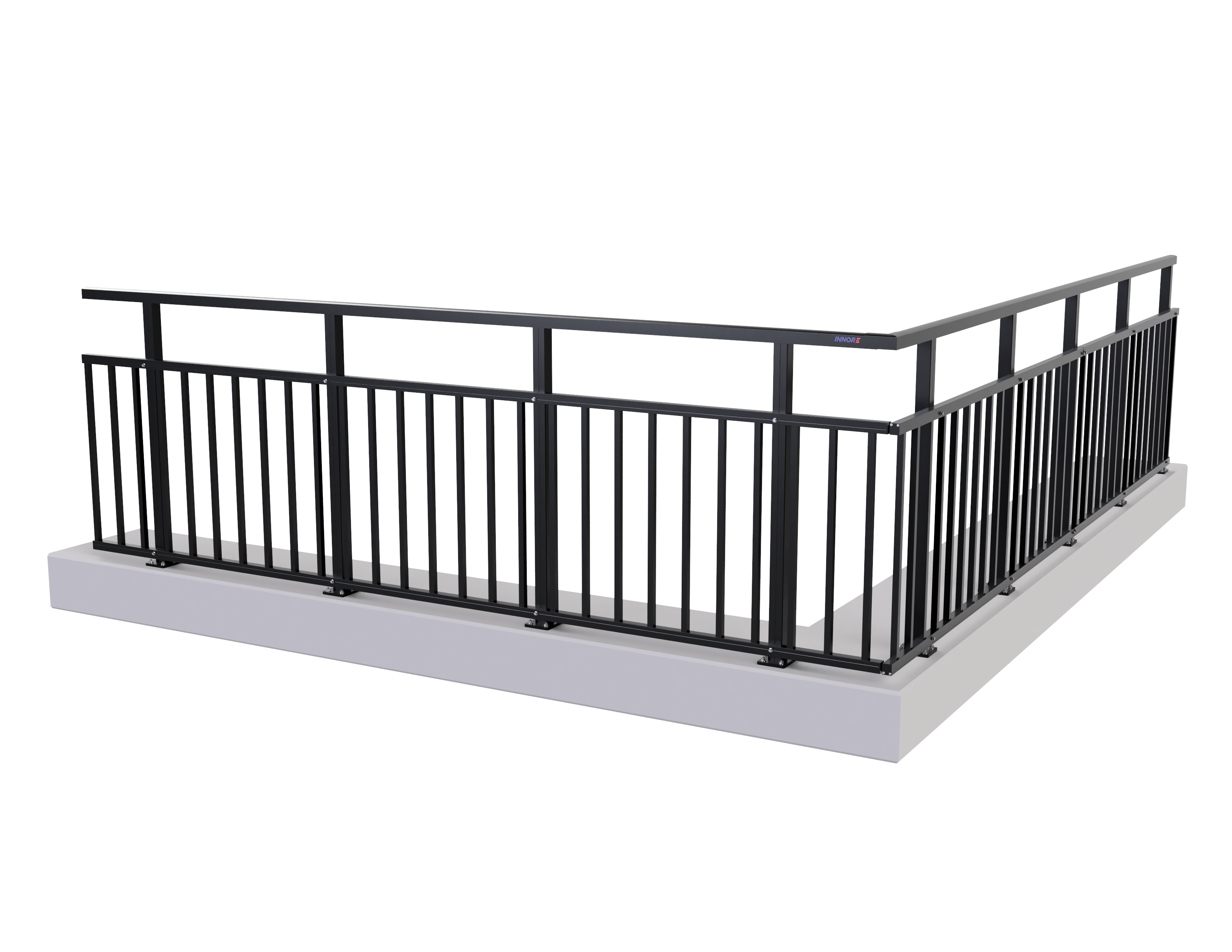

Top-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 130 mm
- Minimum concrete structure height: 130mm
-
Anchor type: Hilti HSA-R M8 (For fastening to concrete)
-
Minimum timber structure height: 148 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas HBS PLATE EVO (For fastening to timber)
Parabet-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 180 mm
- Minimum concrete structure height: 350mm
-
Anchor type: Hilti HSA-R M12 (For fastening to concrete)
-
Minimum timber structure height: 180 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas TBS EVO (For fastening to timber)
-
Compliance standards: EN 1991-1-1, EN 1999-1-1, EN 1990
-
Post bending resistance: Rd = 2.5 kNm
-
Maximum line load (handrail): Qk = 1.0 kN/m (calculated for 1.2 m height according to NS 3510)
-
Maximum point load: Qk = 1.0 kN
-
Pendulum impact resistance: 2(B)2 (EN 12600:2002)
The railing system arrives in wooden pallet designed specifically for safe transportation. Each component is individually secured and separated to minimize movement and protect against damage during shipping. Proper securing of all packages during transport is essential to prevent load shifting and potential harm to the products.
We recommend inspecting all packages upon arrival and following proper installation procedures to ensure the components remain intact and functional.
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
