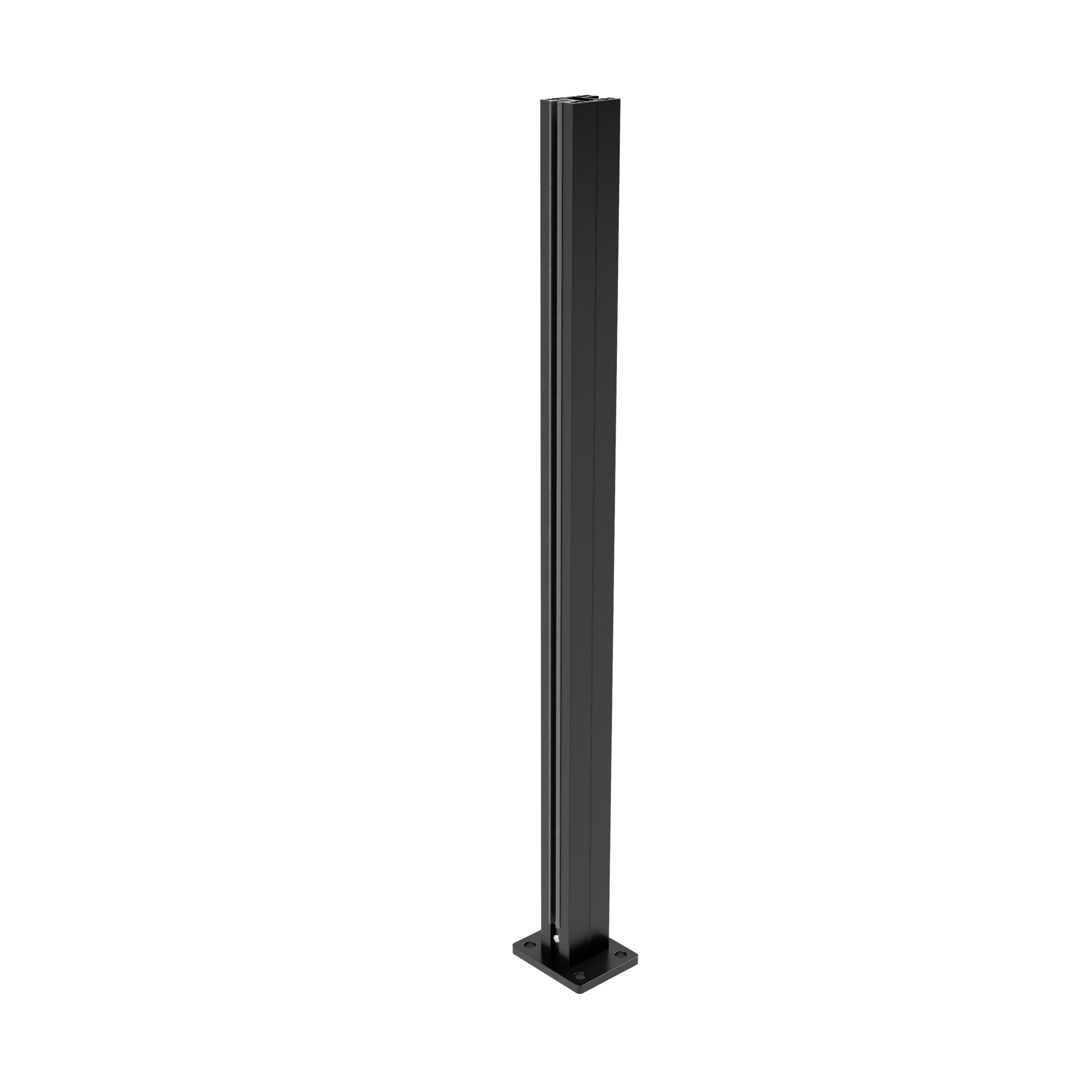

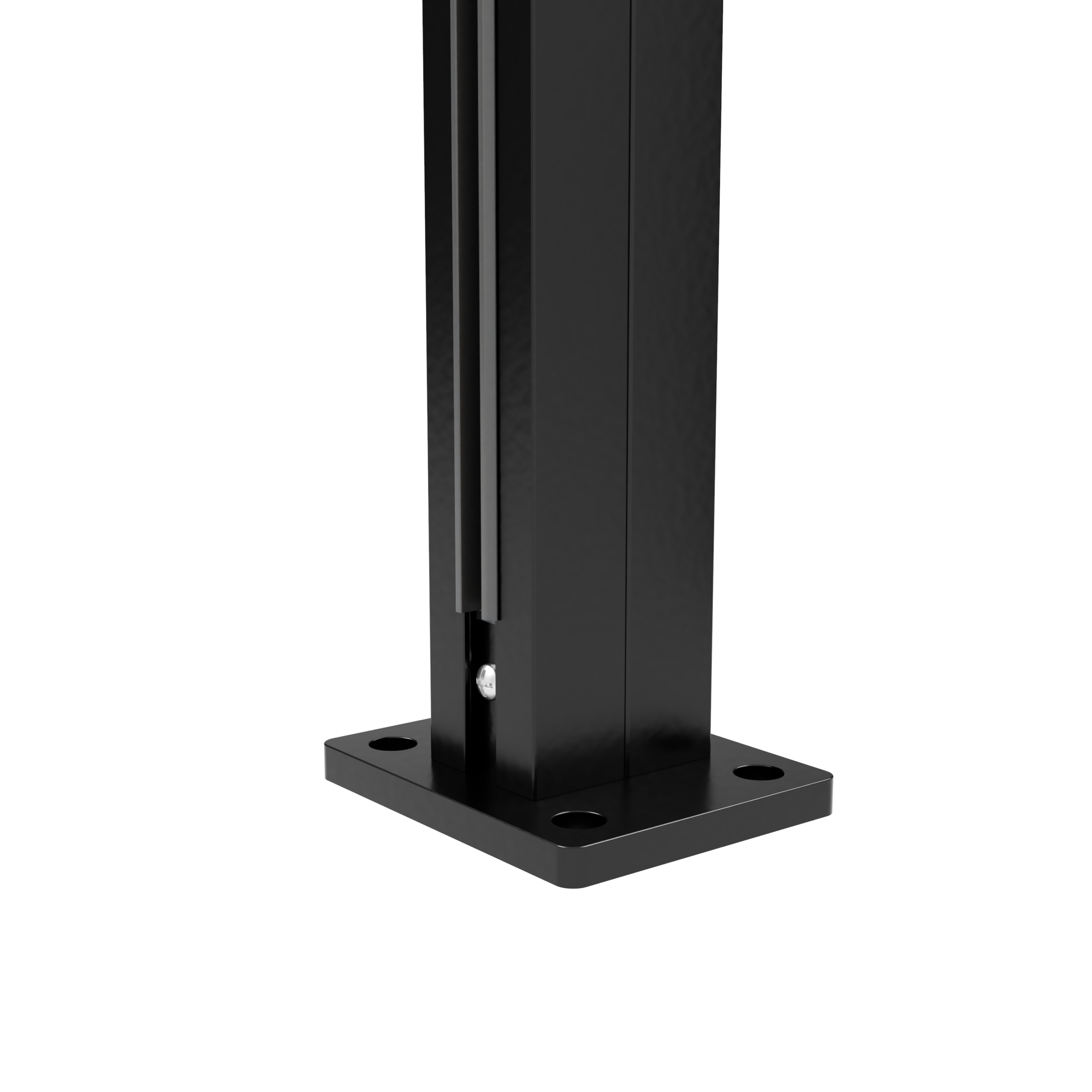

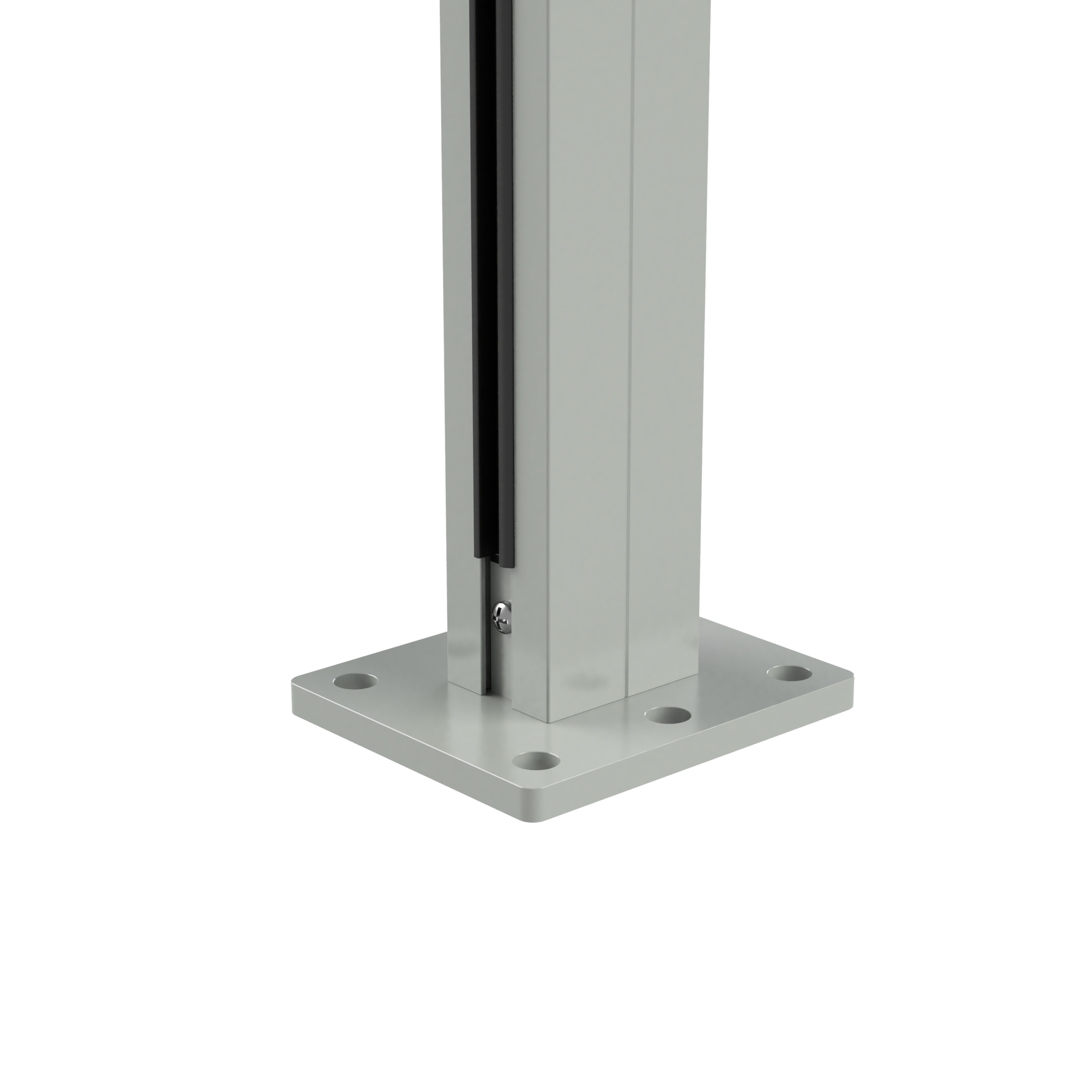

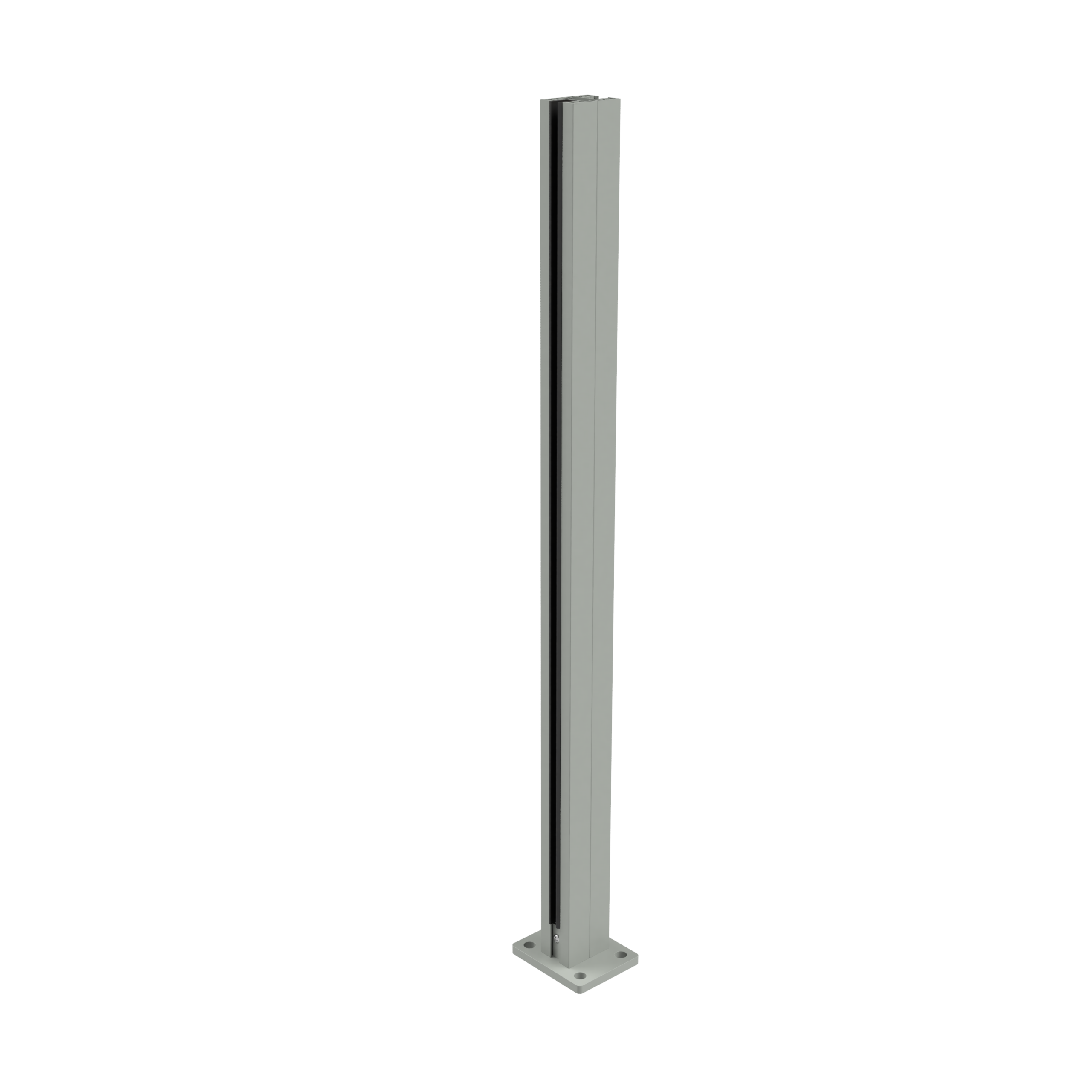

BERGEN 45×60 COLUMN – Top-mounted for Timber & Concrete
The 45×60 mm aluminium post is a structural component designed for aluminium glass railing systems. It provides excellent strength, stability, and compatibility with various glass infill and handrail configurations.
The post is suitable for mounting on concrete or timber substructures, ensuring versatility for balconies and terraces railings.
Estimated production time is 5 weeks.
Price range: 138,89 € through 148,42 €
- Description
- Technical Specifications
- Material and Finish
- Performance and Application
- Maintenance Information
- Packaging and Delivery
The BERGEN 45×60 mm aluminium column is a robust and elegant structural element designed for modern glass railing systems. Manufactured from high-strength EN-AW 6005A-T6 aluminium, it delivers excellent load capacity and long-term durability.
Each post is precision-engineered and powder-coated for superior corrosion protection and a smooth finish that withstands harsh weather conditions.
Price includes fasteners and glass seals.
-
Profile dimensions: 45 × 60 mm
-
Mounting type: Top-mounted (base plate installation)
-
Height: Product height is 1495 mm which can cut to the right size on the site
-
Wall thickness: Optimized for structural rigidity and lightweight performance
-
Compatible handrails: 51×43 mm rectangular or Ø42.4 mm round handrail
Made from high-strength aluminium alloy EN-AW 6005A-T6, ensuring superior corrosion resistance and stability.
Available in a range of durable finishes:
-
Powder-coated– customizable tones for architectural harmony
All finishes are tested for C3 corrosion resistance (ISO 12944-2).
-
Designed for top-mounted installation on concrete or timber substructures
-
Provides high rigidity and structural load capacity
-
Compatible with rubber and plastic sealing accessories for glass fixation
-
Ideal for balconies and terraces
-
Easy to install and maintain, reducing on-site installation time
- Maintenance: Periodic cleaning recommended to preserve coating
Each post is packed in protective wrapping to prevent scratches during handling and transport.
