G-LINE Inspent
The G-Line Inspent is a fully glazed, aluminium railing system with 21.52 mm laminated safety glass.
Aluminium details are powder-coated for long-term durability, it combines modern Scandinavian design with excellent safety performance and unobstructed views, suitable for both residential and commercial buildings.
- Description
- Technical Specifications
- Materials
- Surface Finish
- Mounting Options
- Load-Bearing Capacity
- Transport
- Documents and manuals
The G-Line Inspent is a fully glazed, side, top or parapet-mounted aluminium railing system combining strength, elegance, and transparency. The system features structural aluminium profiles which supportingsafety glass panels fixed directly to the construction.
Designed for balconies and terraces, the Inspent system offers a clean, unobstructed view while ensuring compliance with modern safety and building standards.
Optional Features
-
Glass tones: Clear, opal, bronze, grey
-
Aluminium profiles: RAL powder-coating colours available
- Standard height: Depends on national regulations; minimum 1.0 m above the walking surface
-
Profile dimensions:
-

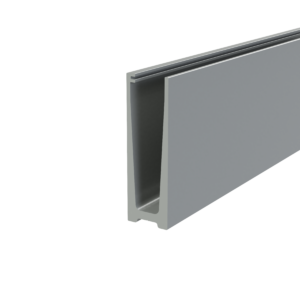

Side-Mounted profile – 63x138mm

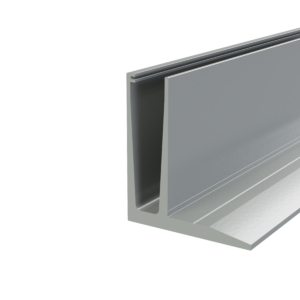

- Top-Mounted profile – 125x138mm
- Parapet-Mounted profile -63x138mm
-
-
Handrail options:
-
Aluminium 25×25×2 mm
- Aluminium 30x30x2 mm
-
-
Glass thickness: Nominal 21.52 mm laminated/tempered safety glass (EN 14449)
-
Main profile: Aluminium EN-AW 6005A-T6
-
Handrail (25×25 mm): Aluminium EN-AW 6063-T66
-
Handrail (30×30 mm): Aluminium EN-AW 6060-T66
-
Anchors: Acid-resistant stainless steel A4 (For fastening to concrete)
-
Timber-screws: Carbon steel, corrosion class C4(For fastening to timber)
-
Profiles and handrails: Powder-coated (RAL colour range)
- Glass: Visible edges polished, other edges are factory-ground
-
Fasteners: Not powder coated

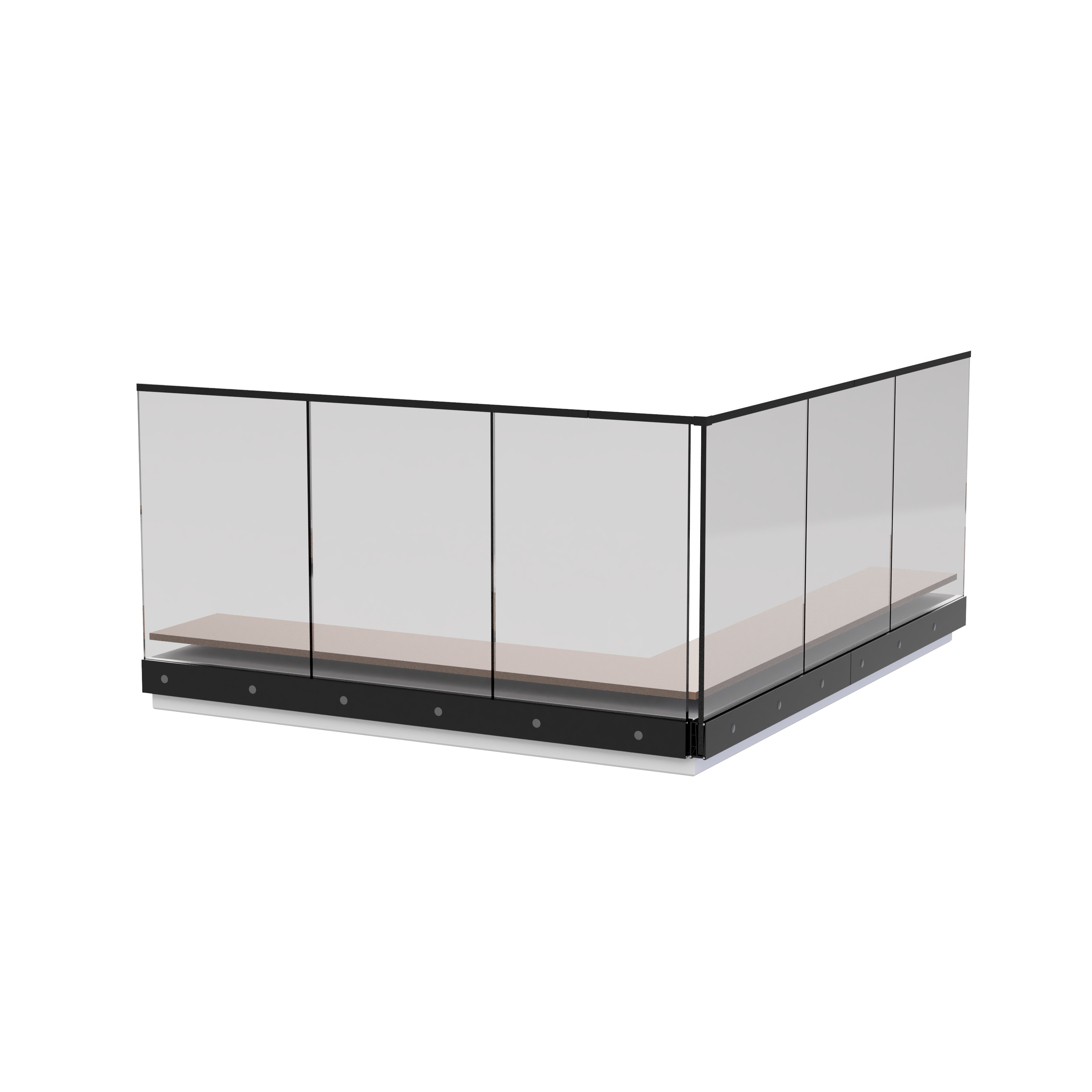

Side mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 160 mm
-
Minimum concrete height : 140 mm
-
Anchor type: Hilti HSA-R M10(For fastening to concrete)
-
Minimum timber structure height:145 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas VGS EVO 11×100 mm(For fastening to timber)

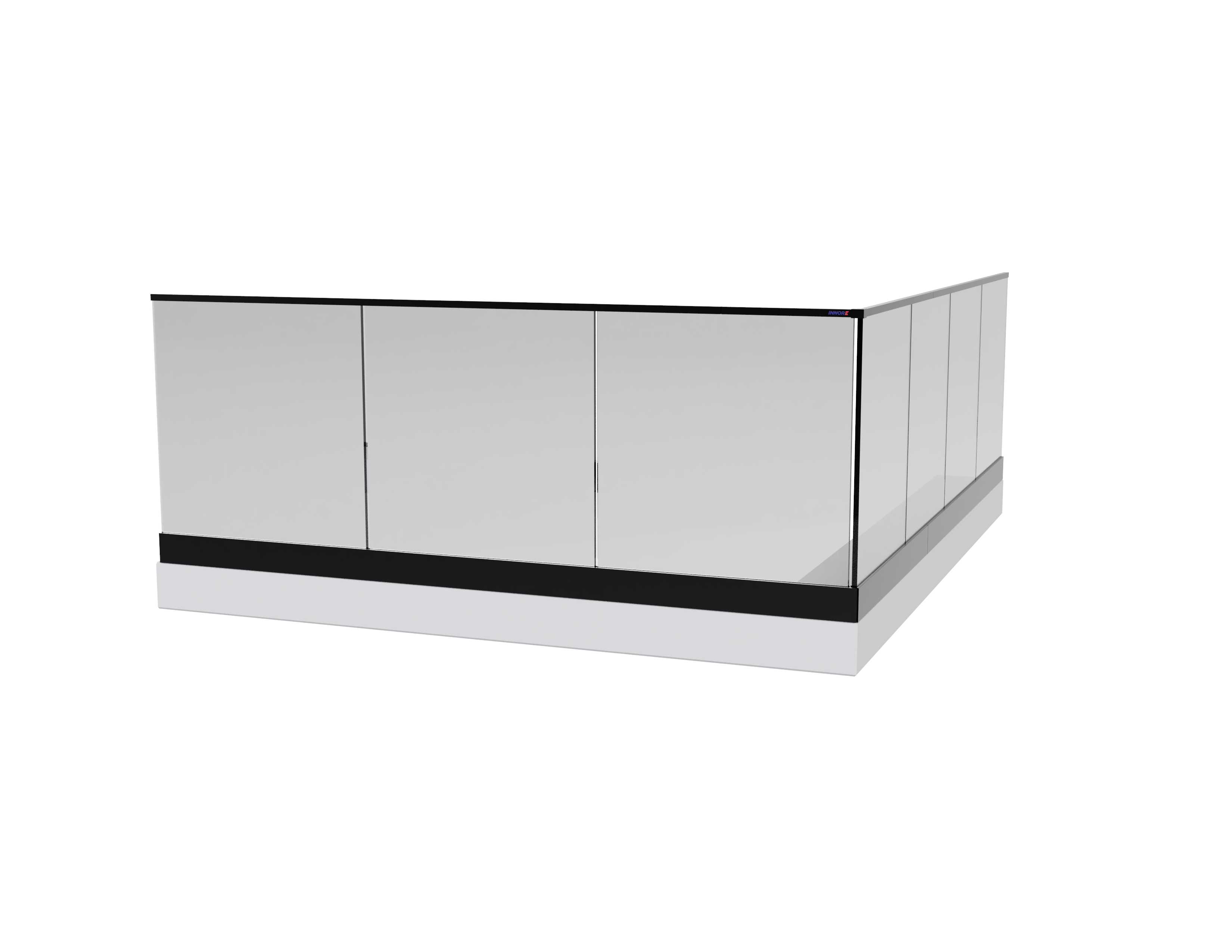

Top-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 150 mm
- Minimum concrete structure height: 160mm
-
Anchor type: Hilti HSA-R M10 (For fastening to concrete)
-
Minimum timber structure height: 145 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas HBS PLATE EVO (For fastening to timber)

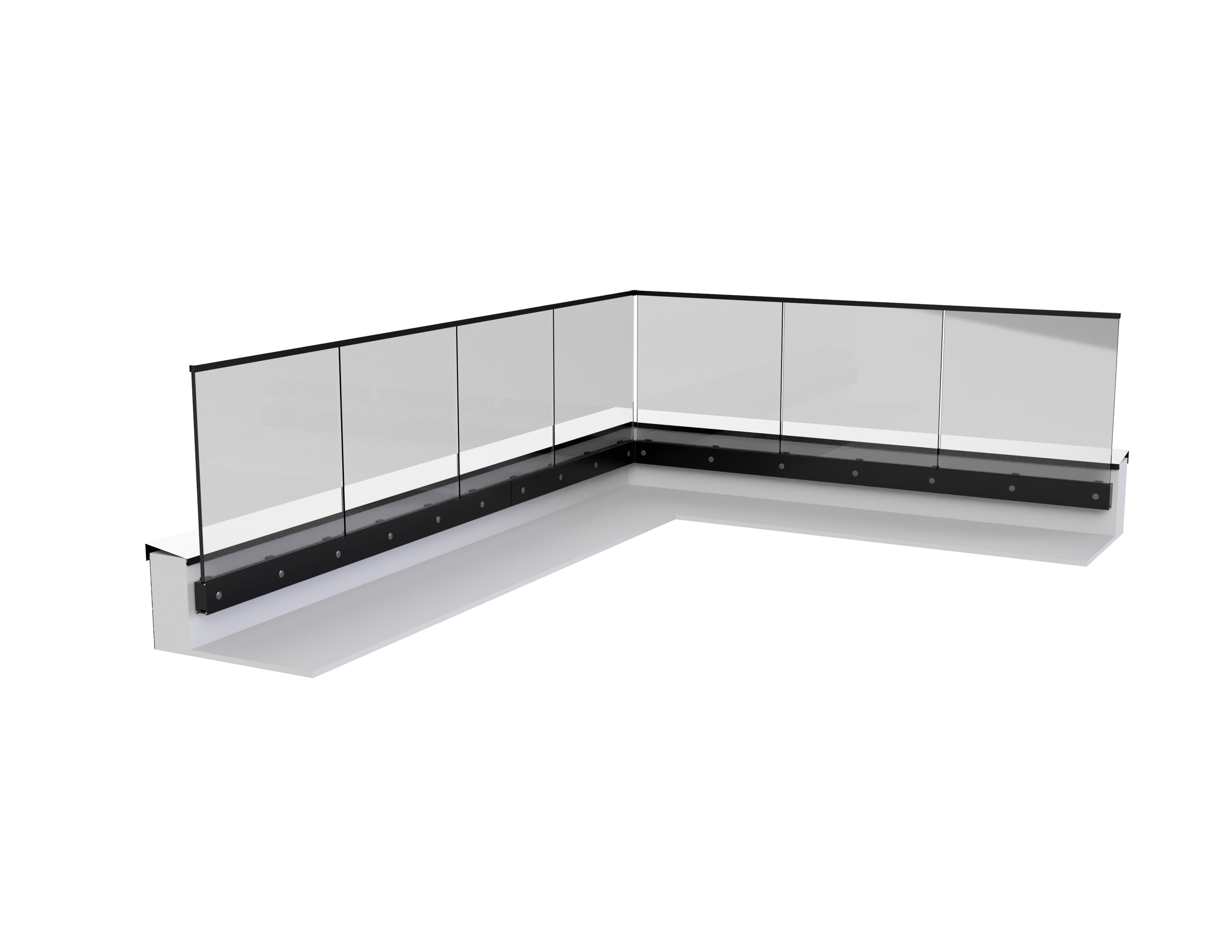

Parabet-mounted railing
-
Base structure: Concrete or timber
-
Minimum concrete class: C25/30 (EN 206)
-
Minimum concrete thickness: 180 mm
- Minimum concrete structure height: 270mm
-
Anchor type: Hilti HSA-R M10 (For fastening to concrete)
-
Minimum timber structure height: 180 mm
-
Timber structure thickness: 90 mm
-
Timber fixing set: Rothoblaas TBS EVO (For fastening to timber)
-
Compliance standards: EN 1991-1-1, EN 1999-1-1, EN 1990
-
Maximum line load (at handrail height): Qk = 1.0 kN/m
-
Maximum point load: Qk = 1.0 kN (NS 3510)
-
Pendulum impact resistance: 2(B)2 (EN 12600:2002)
The railing system arrives in wooden pallet designed specifically for safe transportation. Each component is individually secured and separated within the crate to minimize movement and protect against damage during shipping. Proper securing of all packages during transport is essential to prevent load shifting and potential harm to the products.
We recommend inspecting all packages upon arrival and following proper installation procedures to ensure the glass components remain intact and functional.
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
