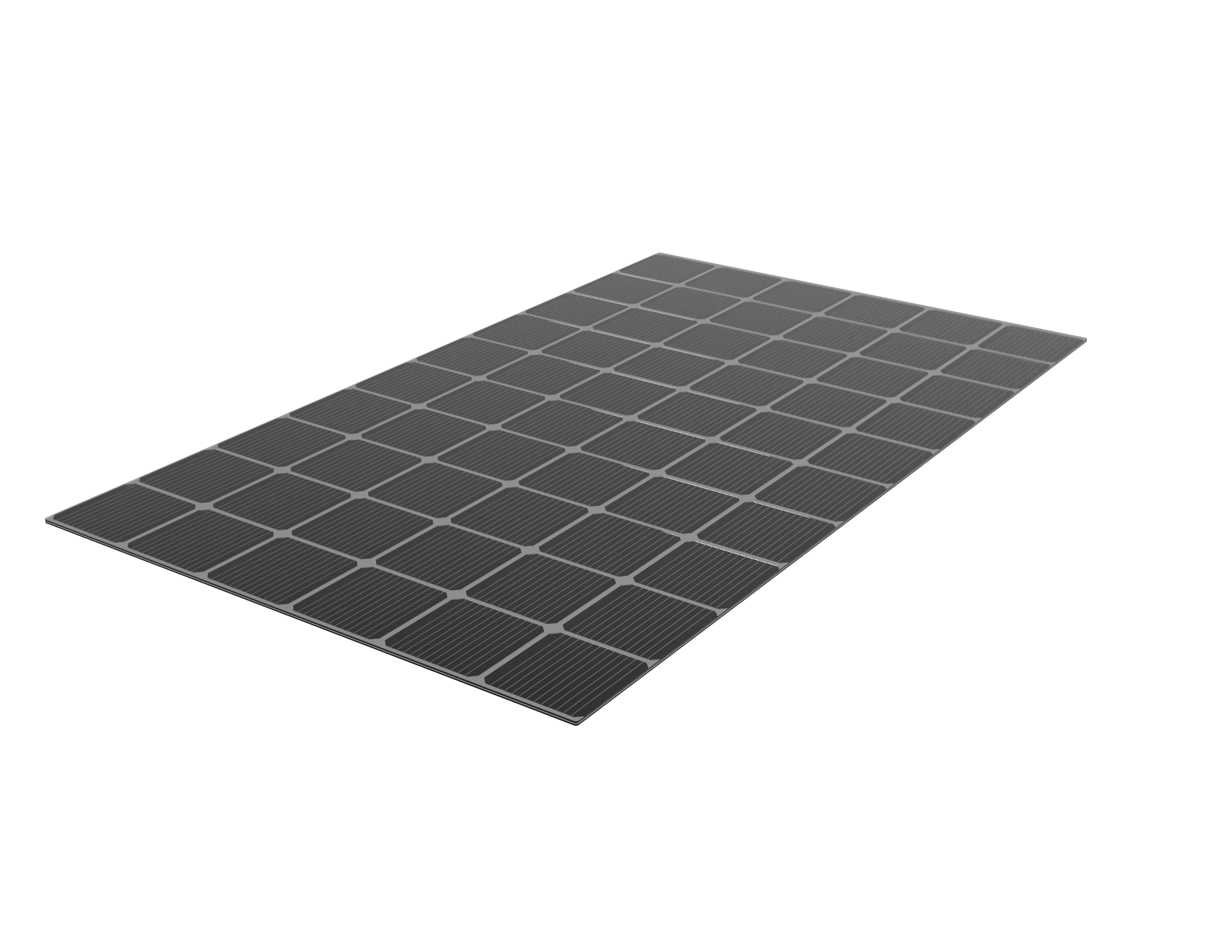

SOLEN Solar Panel
The SOLEN module is a high-performance, ultra-durable frameless glass–glass solar panel with bifacial technology, extreme load resistance, fire class A safety, and a 30-year warranty.
With 19.92% efficiency and Cradle-to-Cradle Gold certification, it combines premium design with exceptional sustainability.
299,00 €
- Description
- Technical Specifications
- Temperature Ratings
- Mechanical Data
- Certifications
- Warranty and manufacturer
The SOLEN panel 370 W module is a premium, frameless glass–glass solar panel engineered for high performance, long-term durability, and aesthetic uniformity. With Bifacial cell technology, extreme load resistance, and superior environmental protection, this module is designed for both residential and commercial installations requiring top-tier reliability and visual consistency. The panel is produced using 100% renewable energy and contains 35% recycled glass, ensuring a low environmental footprint.
-
370 W front-side power output with positive sorting up to +5 W
-
Bifacial technology enabling additional rear-side energy generation
-
Frameless glass/glass construction for maximum strength & durability
-
Self-cleaning surface & salt mist and ammonia resistance
-
Extreme load resistance up to 10,500 Pa (snow/wind)
-
Fire class A & hail resistance class 4 (39 mm hailstone tested)
-
98% recyclable, Cradle-to-Cradle Gold certified
-
Maximum power (Pmax): 370 W
-
Open circuit voltage (VOC): 40.50 V
-
Short circuit current (ISC): 11.18 A
-
Voltage at max power (Vmpp): 34.86 V
-
Current at max power (Impp): 10.62 A
-
Module efficiency: 19.92%
-
Power tolerance: 0 / +5 W
-
Max system voltage: 1000 V
-
Max series current: 20 A
-
Cell technology: Bifacial
-
Current Temp. Coefficient (α): +0.036% / °C
-
Voltage Temp. Coefficient (β): –0.265% / °C
-
Power Temp. Coefficient (δ): –0.362% / °C
-
Nominal Operating Temperature: 46 °C
-

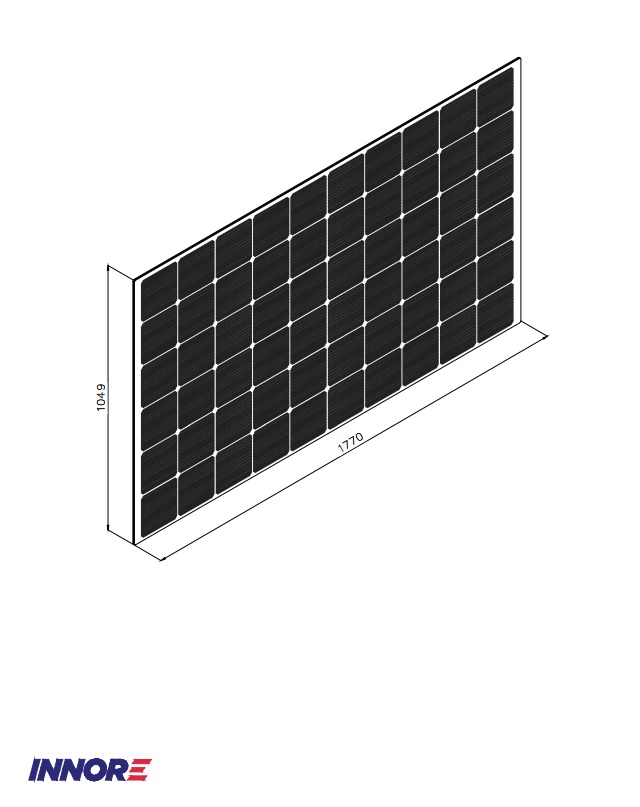

Dimensions: 1770 × 1049 × 7.1 mm
-
Dimensions with edge sealing: 1778 × 1057 × 7.1 mm
-
Weight: 30 kg
-
Front glass: 3 mm
-
Back glass: 3 mm (full black)
-
Cell size: 166 × 166 mm
-
Configuration: 60 cells (6 × 10 layout)
-
Frame: Frameless
-
Cables: 1.2 m length, 4 mm²
-
Bypass diodes: 3
-
Connector: MC4 compatible
-
Maximum load:
-
Snow/wind: 5400 Pa / 10,500 Pa
-
-
IEC 61215:2021 – Performance
-
IEC 61730:2016 / UL 61730:2017 – Safety
-
Cradle to Cradle (C2C) – Gold level
-
Ammonia corrosion testing (IEC 62716:2013)
-
Salt mist testing (IEC 61701:2020)
-
Hail resistance class 4 (39 mm hailstone)
-
ISO 9001:2015 (Quality Management)
-
ISO 14001:2015 (Environmental Management)
-
ISO 45001:2018 (Health and Safety)
-
Produced using 100% renewable energy
-
30-year product warranty
-
30-year efficiency warranty
-
First-year degradation: 2%
-
Annual degradation: 0.379%
-
Power after 30 years: 87%
Manufacturer – Solitek, https://www.solitek.eu/
