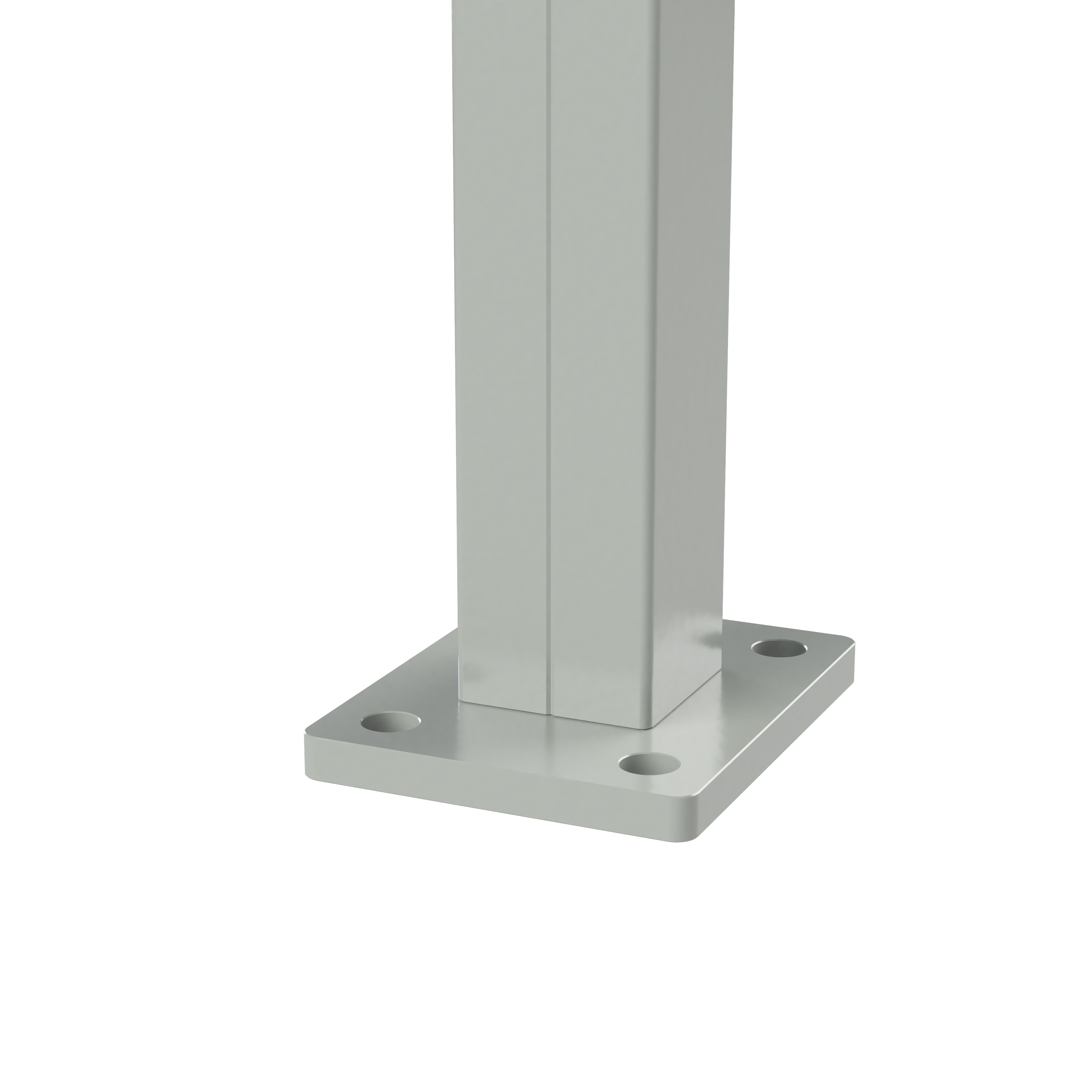

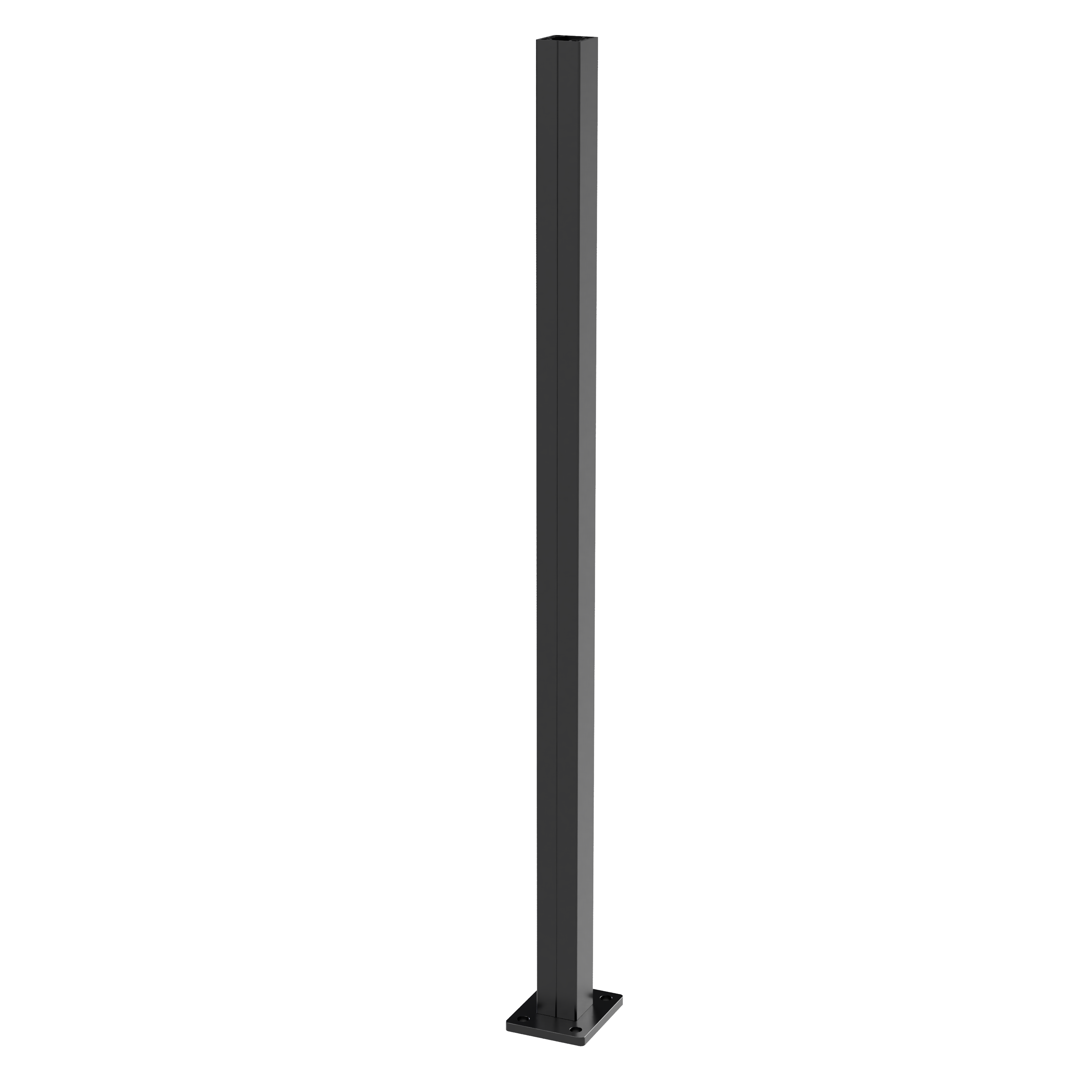

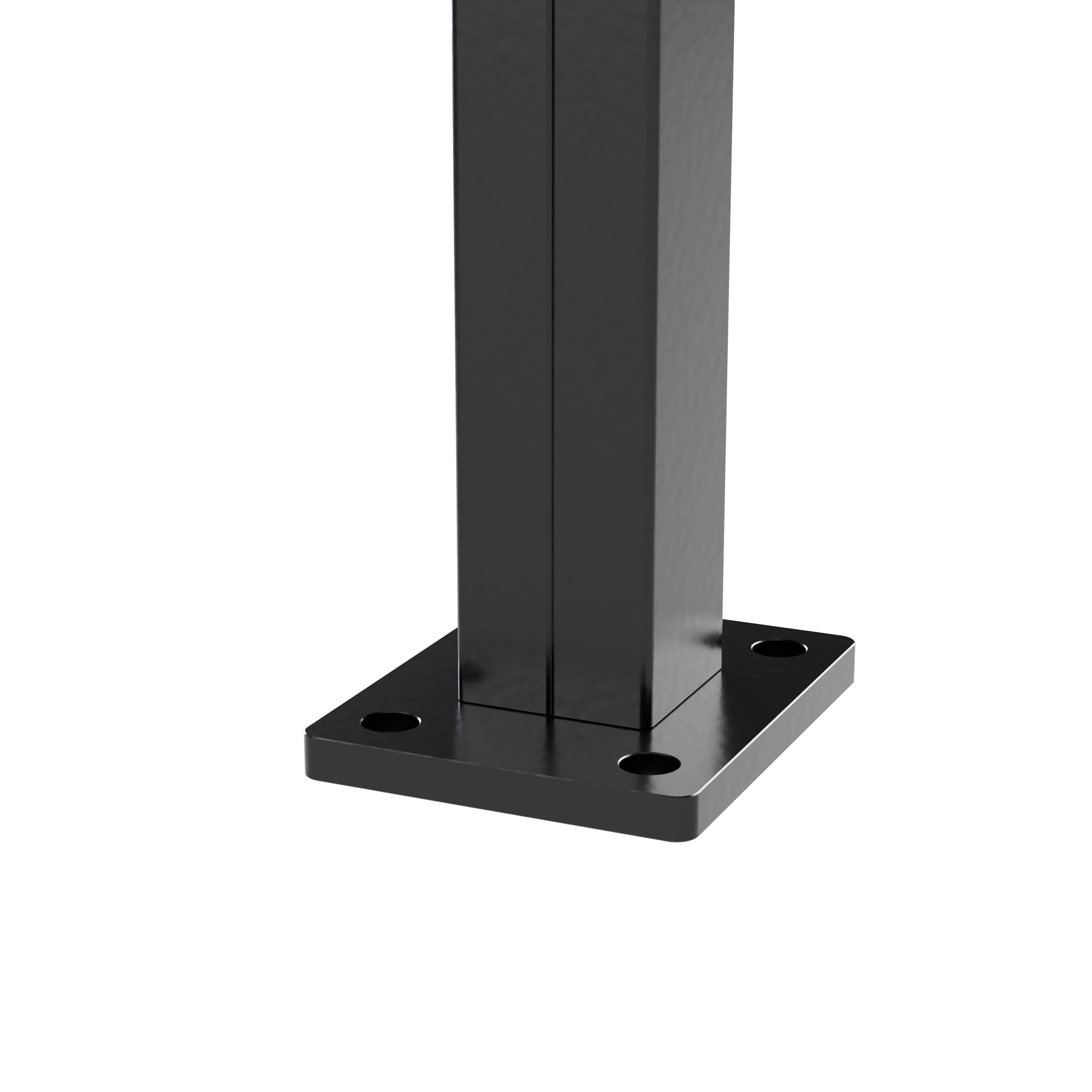

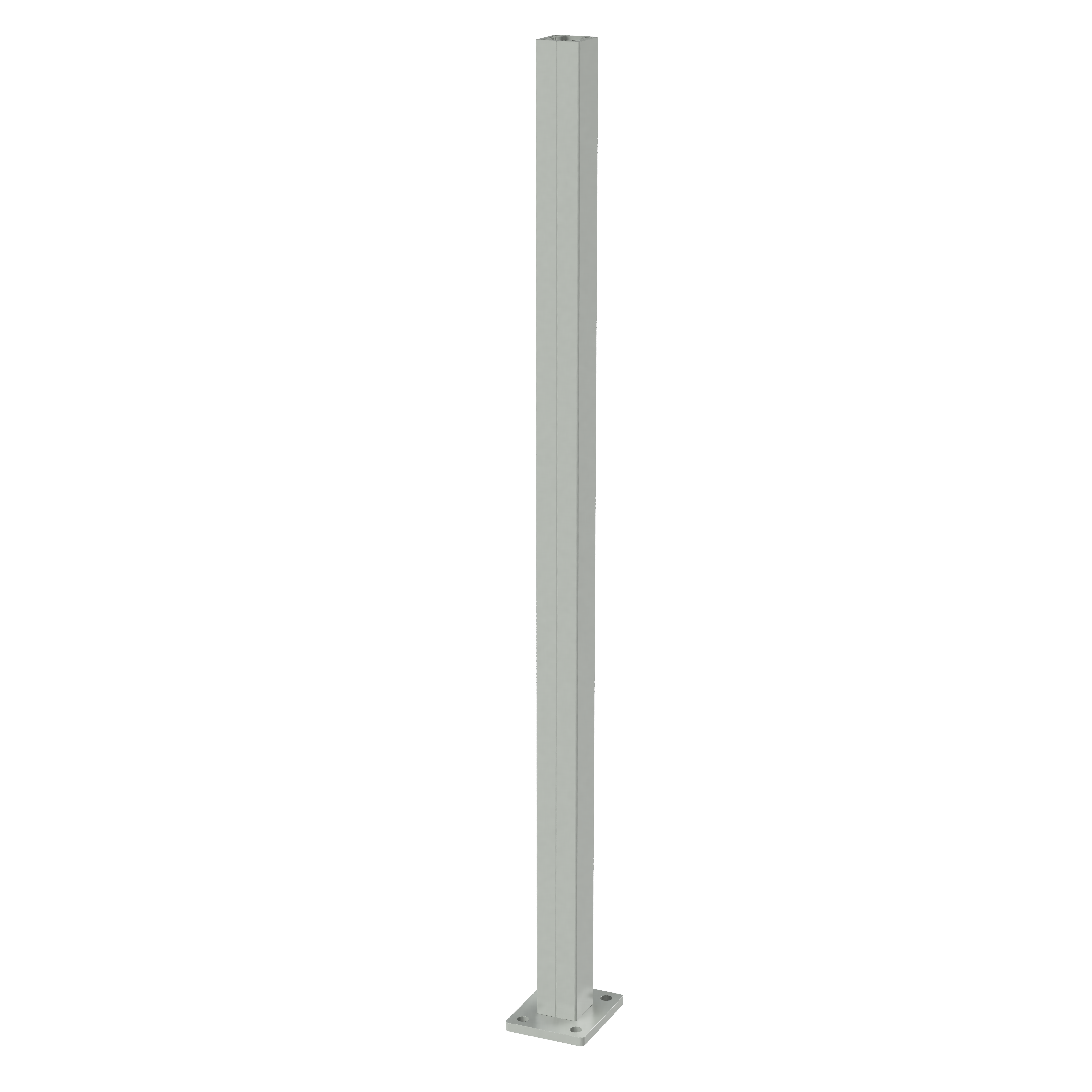

TOP-MOUNTED 46×46 COLUMN
The Top-Mounted Column 46×46 is a powder-coated aluminium post, ensuring precise glass alignment and strong structural performance for aluminium railing systems.
67,00 €
- Description
- Technical Specifications
- Function & Performance
- Standards & Safety
- Applications
- Packaging & Transport
The Top-Mounted Bodo Column 46×46 is a durable aluminium support post designed for the aluminium railing system. Engineered for strength, aesthetics, and easy installation. Aluminium surfaces are powder-coated in RAL colours, offering long-term corrosion resistance and visual consistency with the full railing system.
-
Profile dimensions: 46 × 46 mm
-
Installation type: Top-mounted
-
Material: Aluminium EN-AW 6005A-T6
-
Surface finish: Powder-coated (RAL colour range)
-
Designed to meet 1.0 kN/m line load requirements for residential and public settings
-
Suitable for indoor and outdoor applications
-
Delivers long-term rigidity and excellent impact resistance
-
Produced according to EN 1991-1-1, EN 1999-1-1, and EN 1990
-
Powder coating meets ISO 12944-2 corrosion protection categories (C3–C4 depending on colour and coating thickness)
- Balcony and terrace railing systems
- Each column is individually wrapped to prevent scratches
