TOP-MOUNTED OSLO COLUMN 46×46
The Top-Mounted Oslo Column 46×46 is a powder-coated aluminium post with an integrated Z-profile glass support, ensuring precise glass alignment and strong structural performance for Oslo glass railing systems.
77,00 €
- Description
- Technical Specifications
- Function & Performance
- Standards & Safety
- Applications
- Packaging & Transport

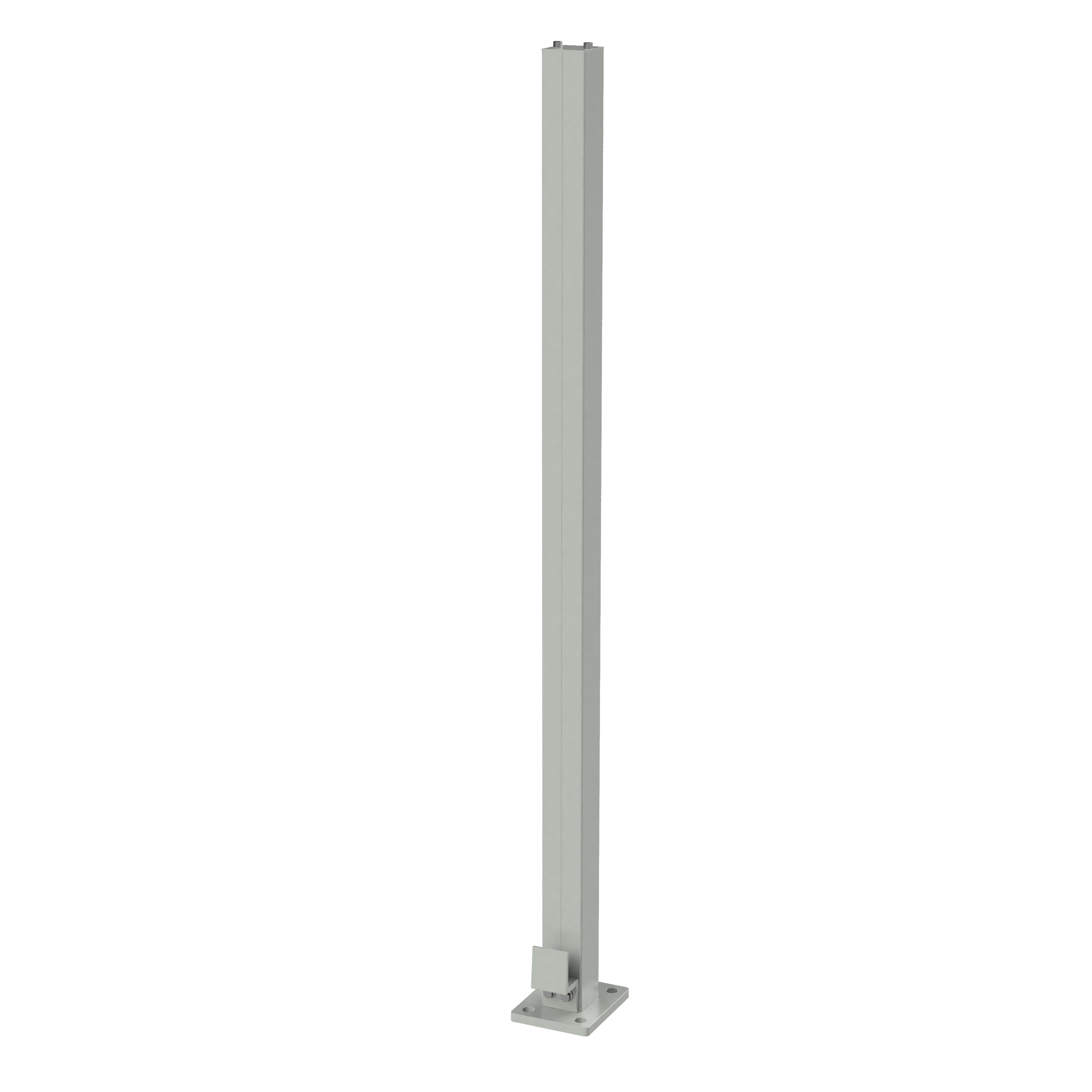

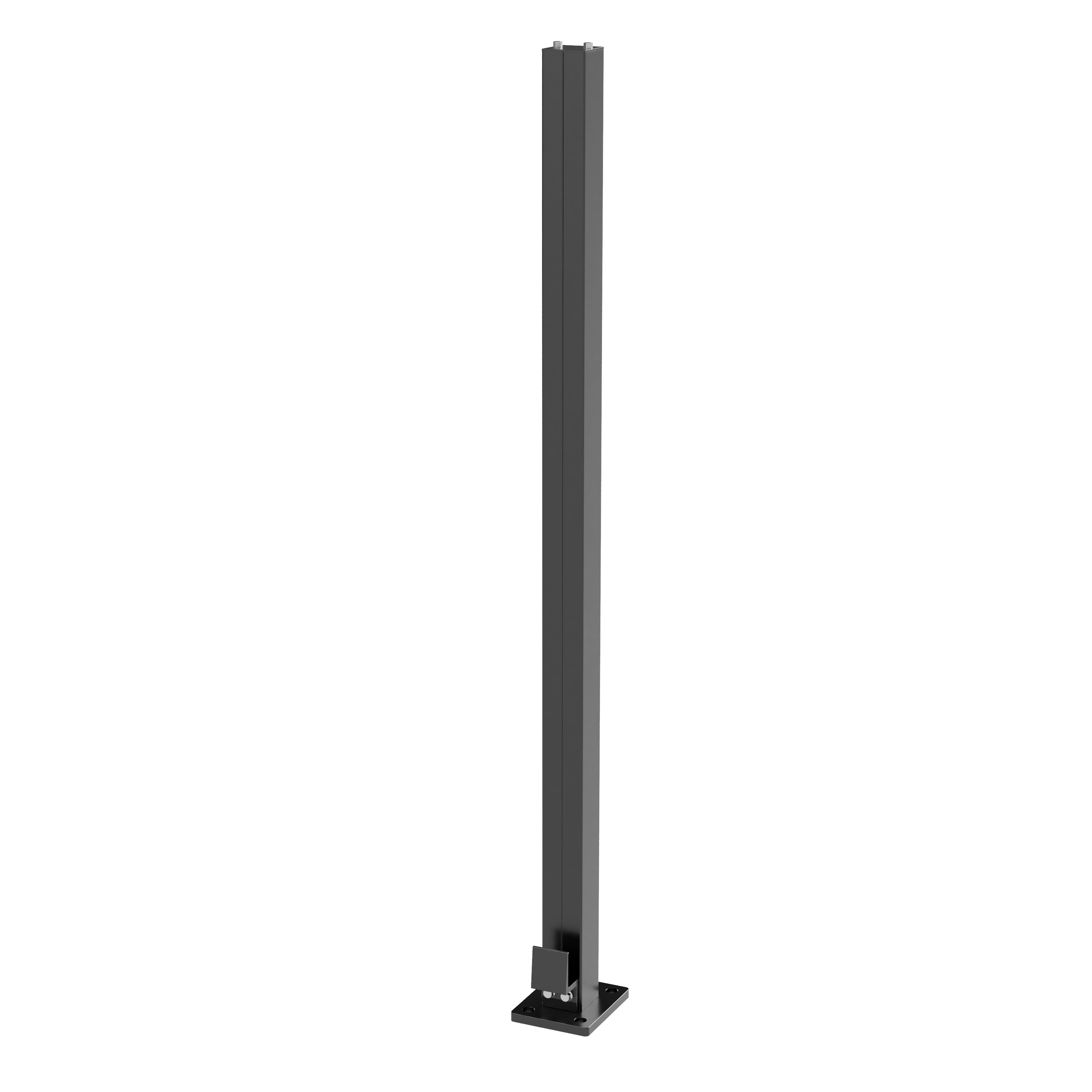

The Top-Mounted Oslo Column 46×46 is a durable aluminium support post designed for the G-Line Oslo railing system. Engineered for strength, aesthetics, and easy installation, this column features a 46×46 mm profile and an integrated Z-profile glass support located in the lower part of the post.
This Z-profile creates a secure resting point for the glass panel, simplifying alignment during installation and ensuring stable long-term performance.
All aluminium surfaces are powder-coated in RAL colours, offering long-term corrosion resistance and visual consistency with the full Oslo railing system.
-

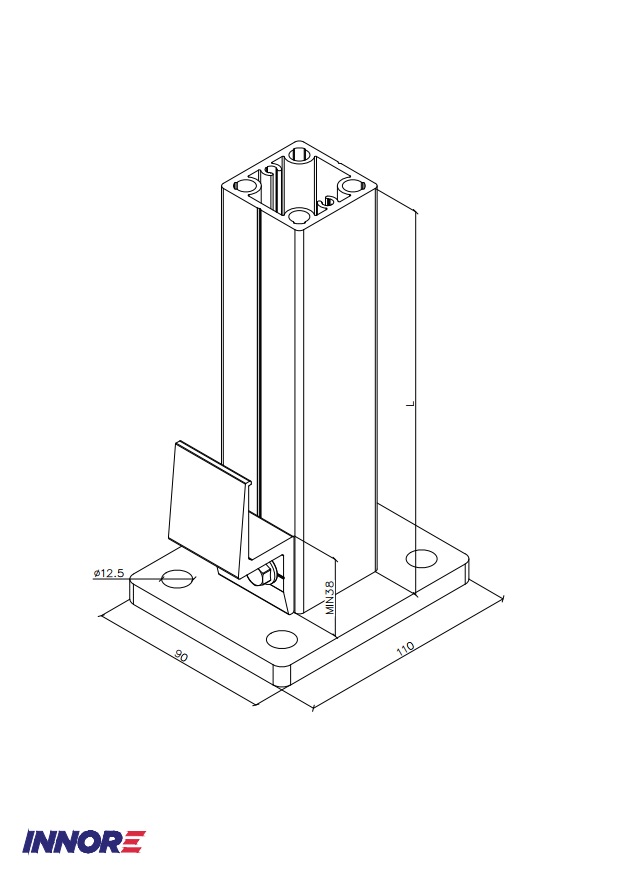

Profile dimensions: 46 × 46 mm
-
Installation type: Top-mounted
-

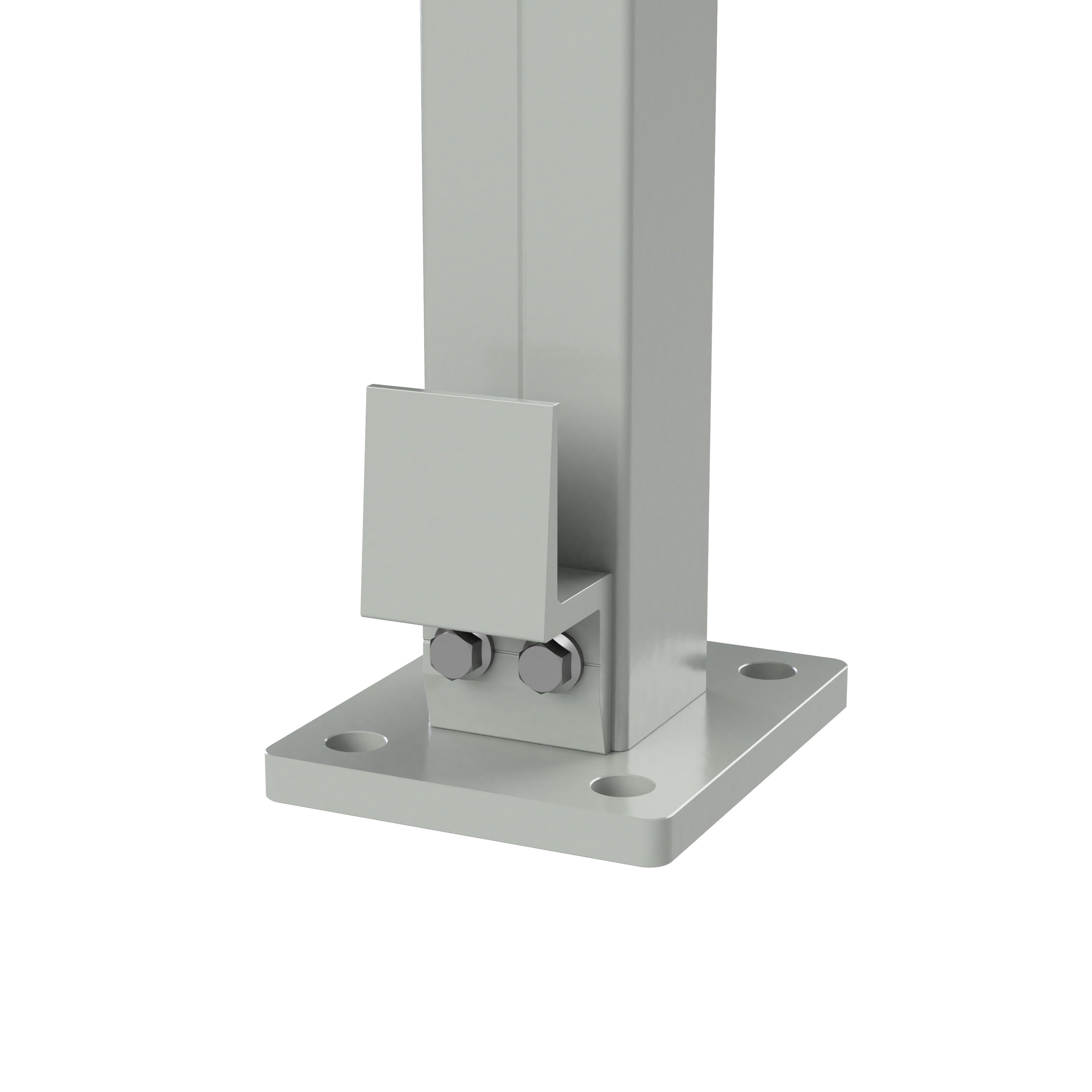

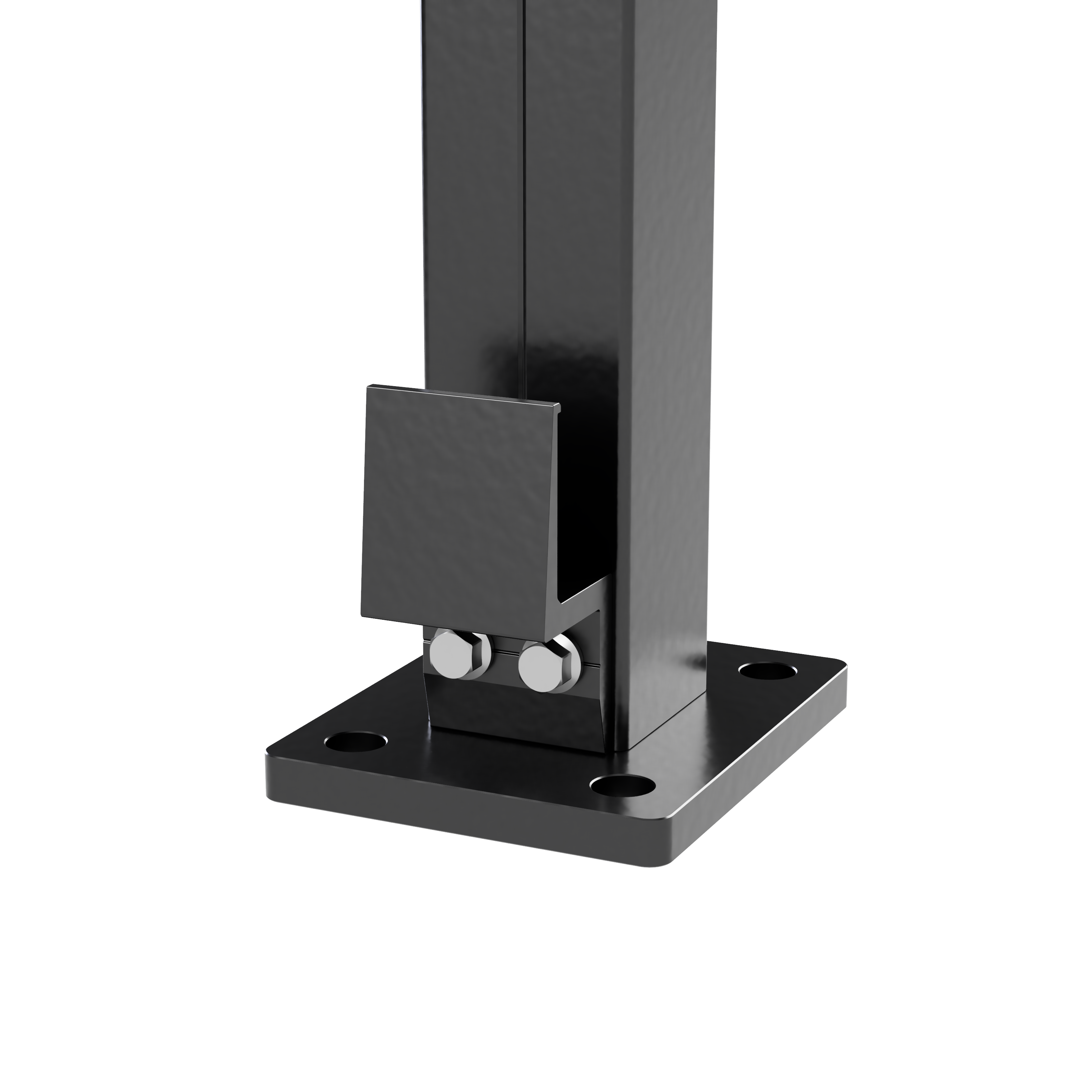

Glass support: Integrated Z-profile at lower section for precise glass positioning
-
Compatible glass: Laminated or laminated + tempered safety glass (e.g., 8.76 mm depending on system design)
-
Material: Aluminium EN-AW 6005A-T6
-
Surface finish: Powder-coated (RAL colour range)
-
Provides the main support for the Oslo glass railing
-
Integrated Z-profile ensures the glass rests securely and consistently during installation
-
Designed to meet 1.0 kN/m line load requirements for residential and public settings
-
Suitable for indoor and outdoor applications
-
Delivers long-term rigidity and excellent impact resistance
-
Produced according to EN 1991-1-1, EN 1999-1-1, and EN 1990
-
Compatible with safety glass meeting EN 14449 requirements
-
Powder coating meets ISO 12944-2 corrosion protection categories (C3–C4 depending on colour and coating thickness)
-
Balcony and terrace railing systems
The integrated Z-profile design assists installers in achieving fast, uniform, and precise glass alignment—reducing installation time and increasing system reliability.
-
Each column is individually wrapped to prevent scratches
-
Z-profile is packaged separately and clearly labelled
