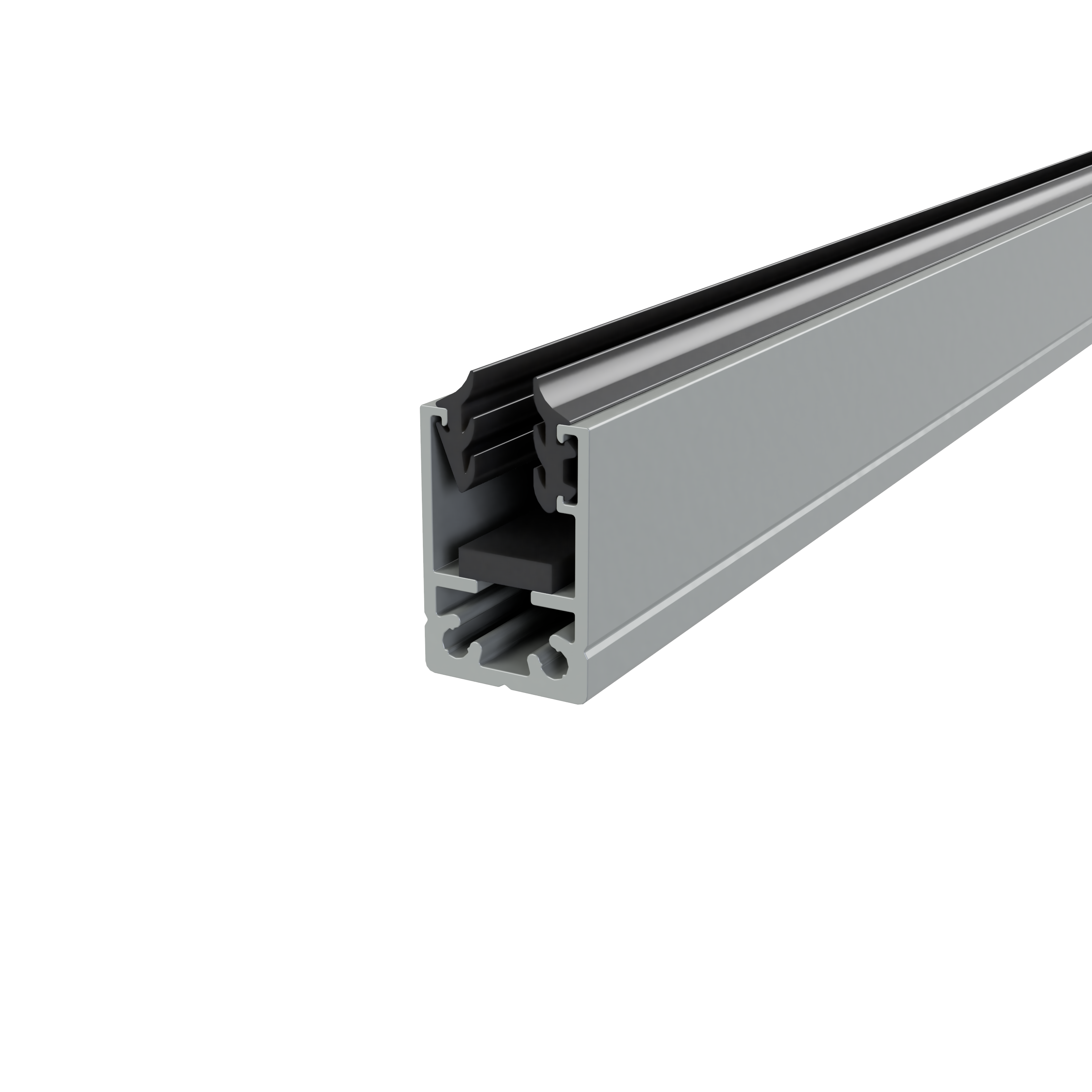

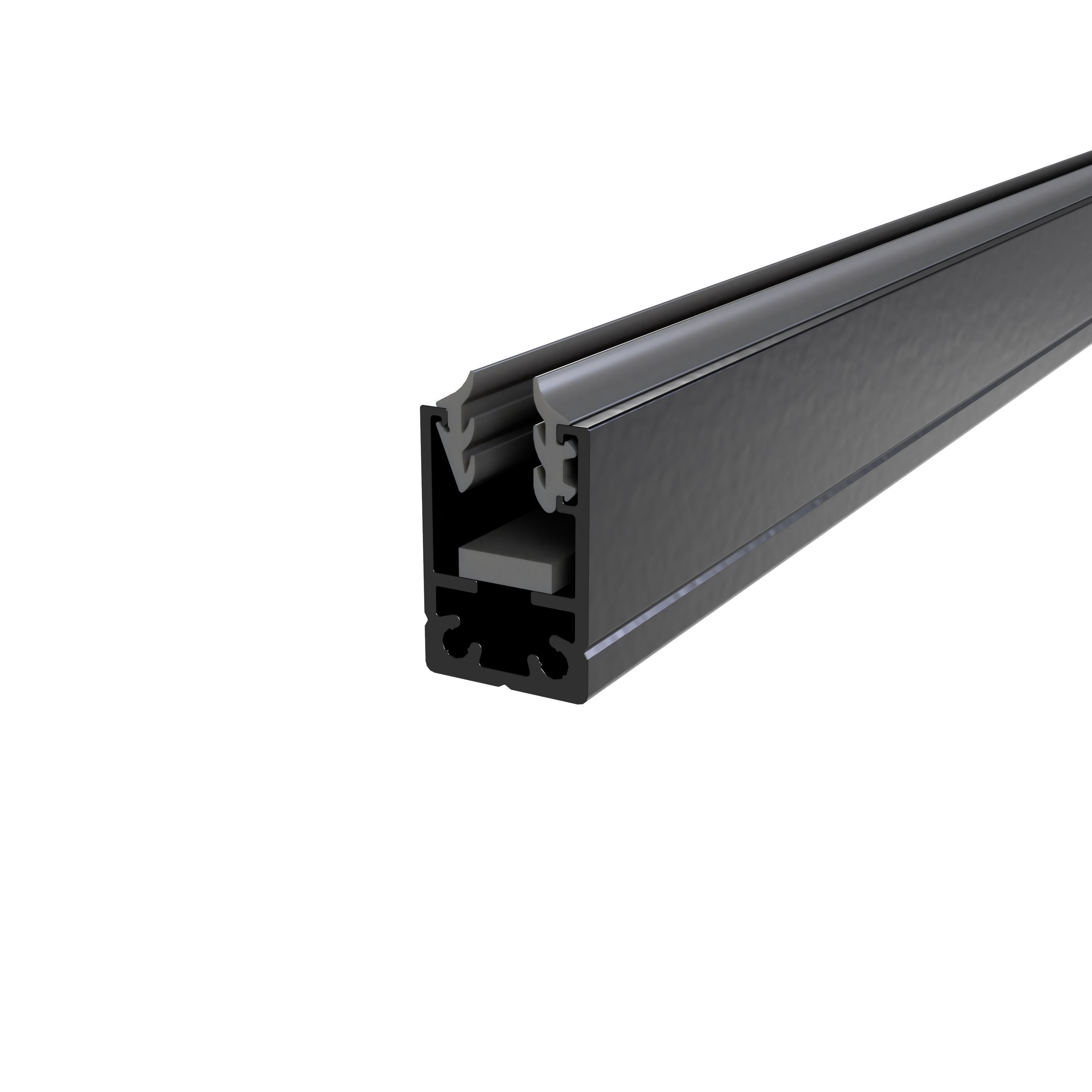

GLASSLATH with gasket
The GLASSLATH with gasket is an aluminium profile with an integrated seal, designed to securely hold glass panels in railing systems.
It provides a clean finish, protects glass edges, and ensures long-lasting performance indoors and outdoors. Profiles are supplied in 3.0 m lengths and can be cut to the required size on-site as needed.
34,00 €
The GLASSLATH with gasket is a precision-engineered aluminium profile designed for securing glass panels safely and efficiently in railing system.
Its integrated gasket ensures a tight fit and guarantees long-term performance in both indoor and outdoor environments.
Lightweight but structurally strong, the profile offers a clean and minimalistic finish that complements modern architectural designs.
-
Product type: Aluminium glass-supporting profile with integrated sealing gasket
-
Material: Aluminium alloy EN-AW (typically 6060/6063 series)
-
Gasket material: High-quality EPDM or thermoplastic rubber (UV-resistant)
-
Profile function: Secures and stabilises glass inside railing
-
Glass compatibility: Suitable for laminated or tempered glass (various thicknesses depending on project requirements)
-
Mounting method: Inserted into glass channels, handrails, or aluminium frames
-
Surface finish: RAL powder-coated
-
Corrosion resistance: C3–C4 (ISO 12944-2) depending on finish
-
Designed according to EN 1999-1-1 (aluminium structures)
-
Meets EN 12600 requirements when used with certified safety glass
-
Gasket material complies with EN 13501-1 (fire behaviour)
-
UV- and temperature-resistant, ageing-resistant sealing material
-
Ensures secure glass fixation without metal-to-glass contact
The GLASSLATH with gasket is ideal for:
-
Aluminium and glass railing systems
-
Balcony and terrace glass infills
Suitable for residential, commercial, and public buildings, offering reliable safety and a clean architectural finish.
-
Profiles are wrapped in protective film to avoid scratches
-
Gaskets are packed separately
-
Clearly labelled for easy identification on construction sites
