TOP-MOUNTED COLUMN 45×60
The COLUMN 45×60 (Top-Mounted) is an aluminium post (EN-AW 6005A-T6) for glass and railing systems.
Top-mounted design for easy installation, powder-coated in RAL colours, and tested for 1.0 kN/m line load — ideal for modern balconies and terraces.
89,00 €
- Description
- Technical Specifications
- Material and Finish
- Performance and Application
- Load Capacity
- Packaging and Delivery
The COLUMN 45×60 (Top-Mounted Option) is a strong and versatile aluminium post designed for use in glass and aluminium railing systems.
With its sleek rectangular profile and top-mounted base, it provides a clean, modern look while offering excellent stability and load performance.
Engineered for balconies and terracces, this post ensures quick installation and long-term durability in demanding environments.
-

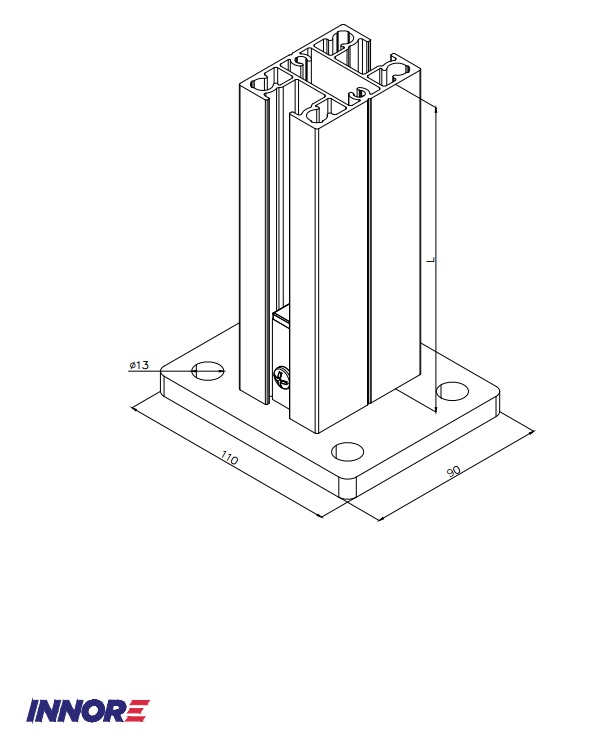

Profile dimensions: 45 × 60 mm
-
Mounting type: Top-mounted (base plate installation)
-
Height: Product height is 1.5m which can cut to the right size on the site
-
Material: Aluminium EN-AW 6005A-T6
-
Wall thickness: Optimized for structural rigidity and lightweight performance
-
Fixing hole spacing: designed for compatibility with standard anchor layouts
-
Compatible handrails: 51×43 mm rectangular or Ø42.4 mm round
-
Compatible glass thickness: 8.76 mm laminated safety glass (EN 14449)
Made from high-strength aluminium alloy EN-AW 6005A-T6, ensuring superior corrosion resistance and stability.
Available in a range of durable finishes:
-
Powder-coated (RAL colour range) – customizable tones for architectural harmony
All finishes are tested for C3–C4 corrosion resistance (ISO 12944-2).
-
Designed for top-mounted installation on concrete or timber substructures
-
Provides high rigidity and structural load capacity
-
Compatible with rubber and plastic sealing accessories for glass fixation
-
Ideal for balconies and terraces
-
Easy to install and maintain, reducing on-site installation time
-
Post bending resistance: Rd = 2.15 kNm
-
Complies with standards: EN 1991-1-1, EN 1999-1-1, EN 1990
Each post is packed in protective wrapping to prevent scratches during handling and transport.
Top-mount base plates, anchor bolts, and accessories are supplied according to project requirements.
