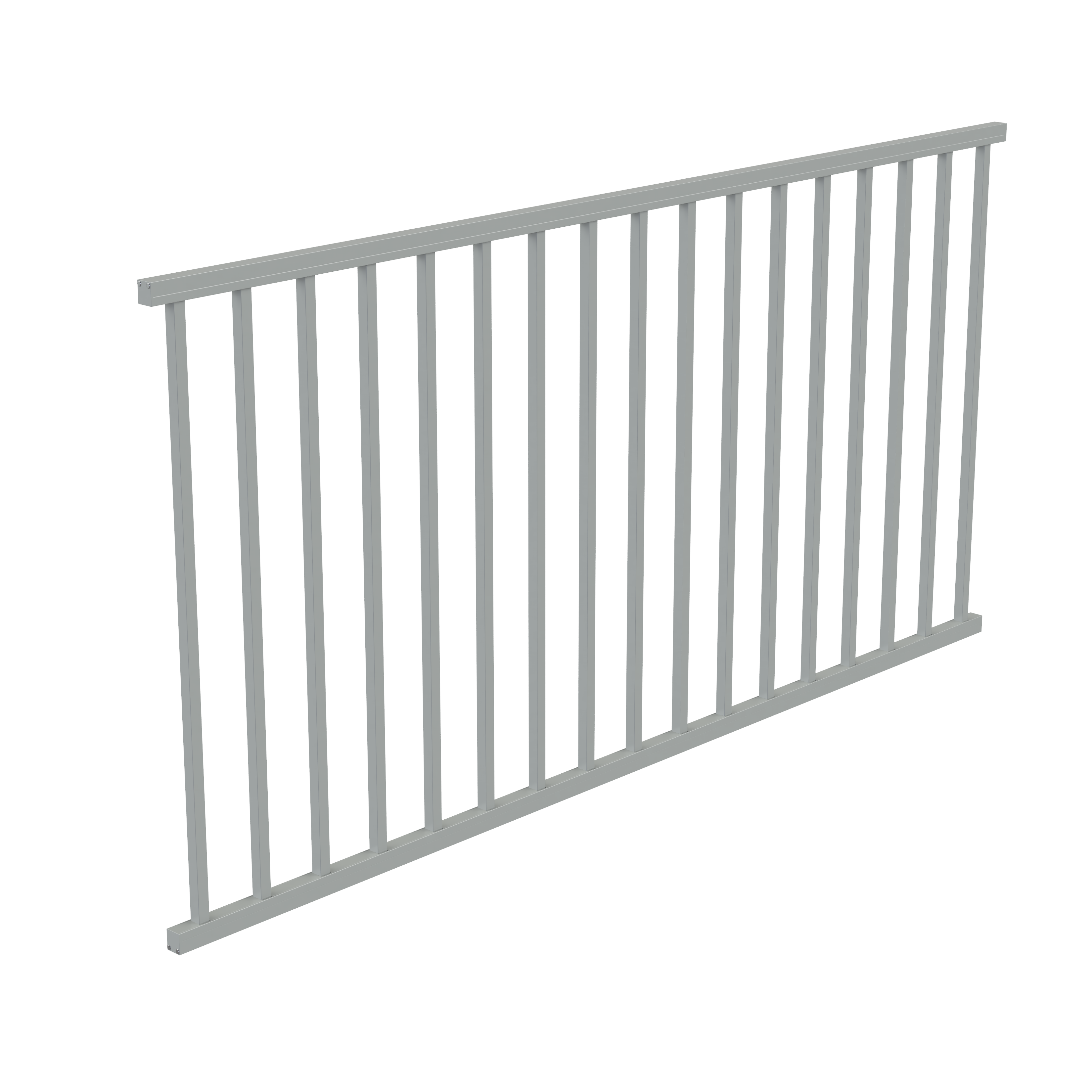

A-LINE BODO FRAME 2.0m x 1.0m
The A-Line Bodo Frame 2.0 × 1.0 m is a preassembled aluminium baluster railing panel that is easy to cut to the required length, ensuring perfect fit on any balcony or terrace. Lightweight, durable, and powder-coated, it delivers modern aesthetics with fast installation.
399,00 €
The A-Line Bodo Frame 2.0 m × 1.0 m is a fully assembled aluminium railing panel, designed for fast installation and long-term durability. This railing section features evenly spaced vertical aluminium pickets integrated within a rigid rectangular frame, providing a safe and visually clean solution for balconies and terraces.
Constructed from high-strength architectural aluminium profiles, the Bodo Frame maintains excellent rigidity across its 2-meter lenght, while its 1-meter height aligns with common handrail regulations.
Key Features
- Preassembled railing panel (vertical bar system)

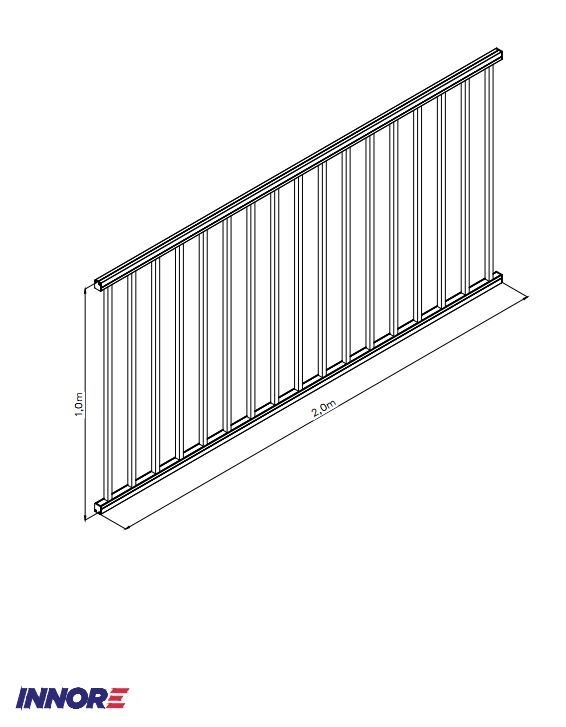

- Dimensions: 2.0 m width × 1.0 m height
- Easily cut to the required length for perfect on-site fit
- Strong aluminium frame with integrated vertical bars
- Lightweight and easy to install
All aluminium components are powder-coated for long-lasting corrosion protection, while the fasteners remain uncoated for serviceability.
-
Frame profile: Structural aluminium rectangular profile
-
Vertical pickets: 20×20 mm (or system-specific dimension)
-
Material: Aluminium EN-AW structural series (e.g., 6005A-T6)
-
Surface finish: Powder-coated (RAL colour selection)
-
Load performance: Meets typical balcony and terrace line load requirements depending on system configuration
-
Corrosion-resistant aluminium suitable for coastal and Nordic climates
-
Powder-coating protects against UV radiation, moisture and abrasion
-
No rotting, warping or repainting required
-
High rigidity even at full 2-meter width
-
Low maintenance over lifetime
