SIDE-MOUNTED COLUMN 45×60

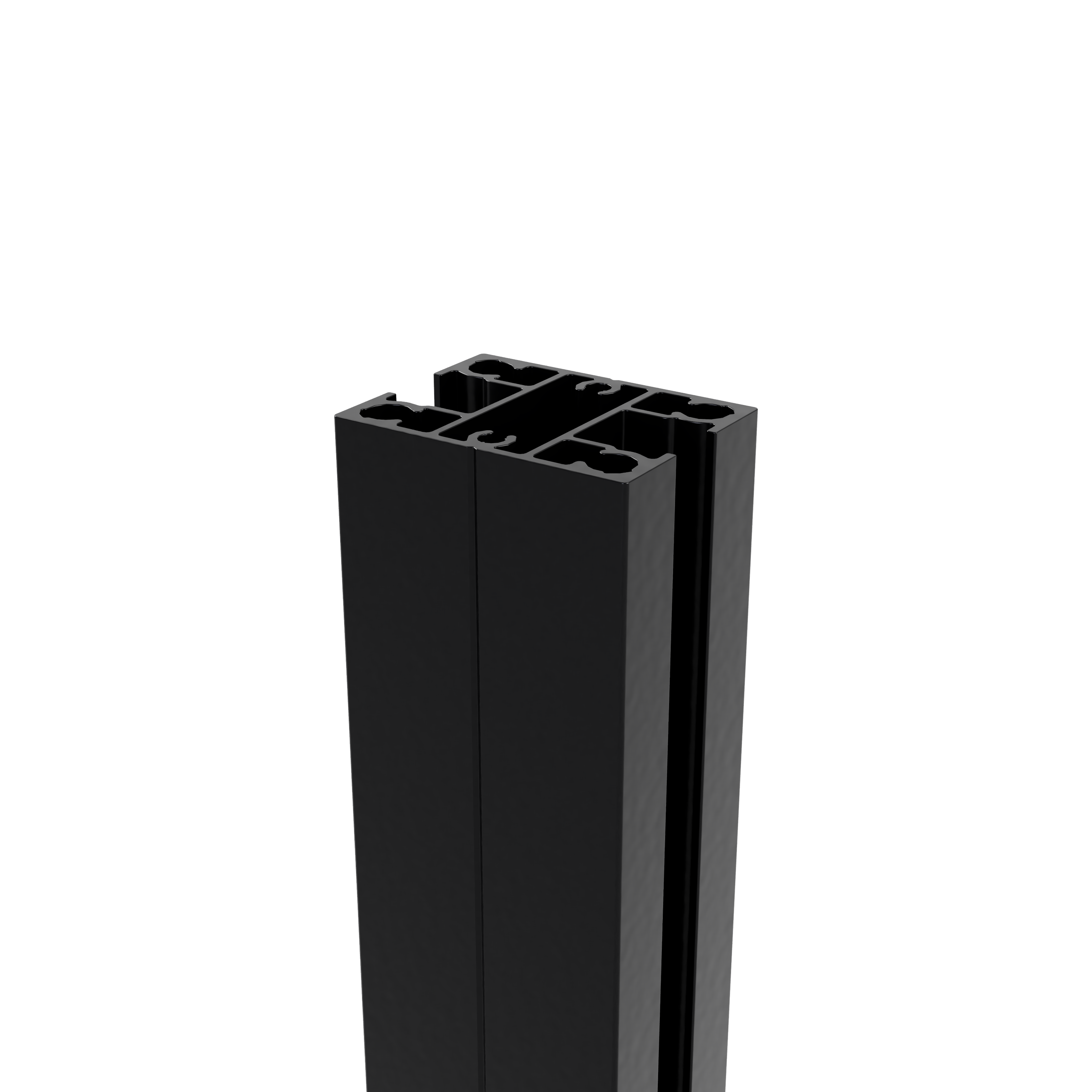

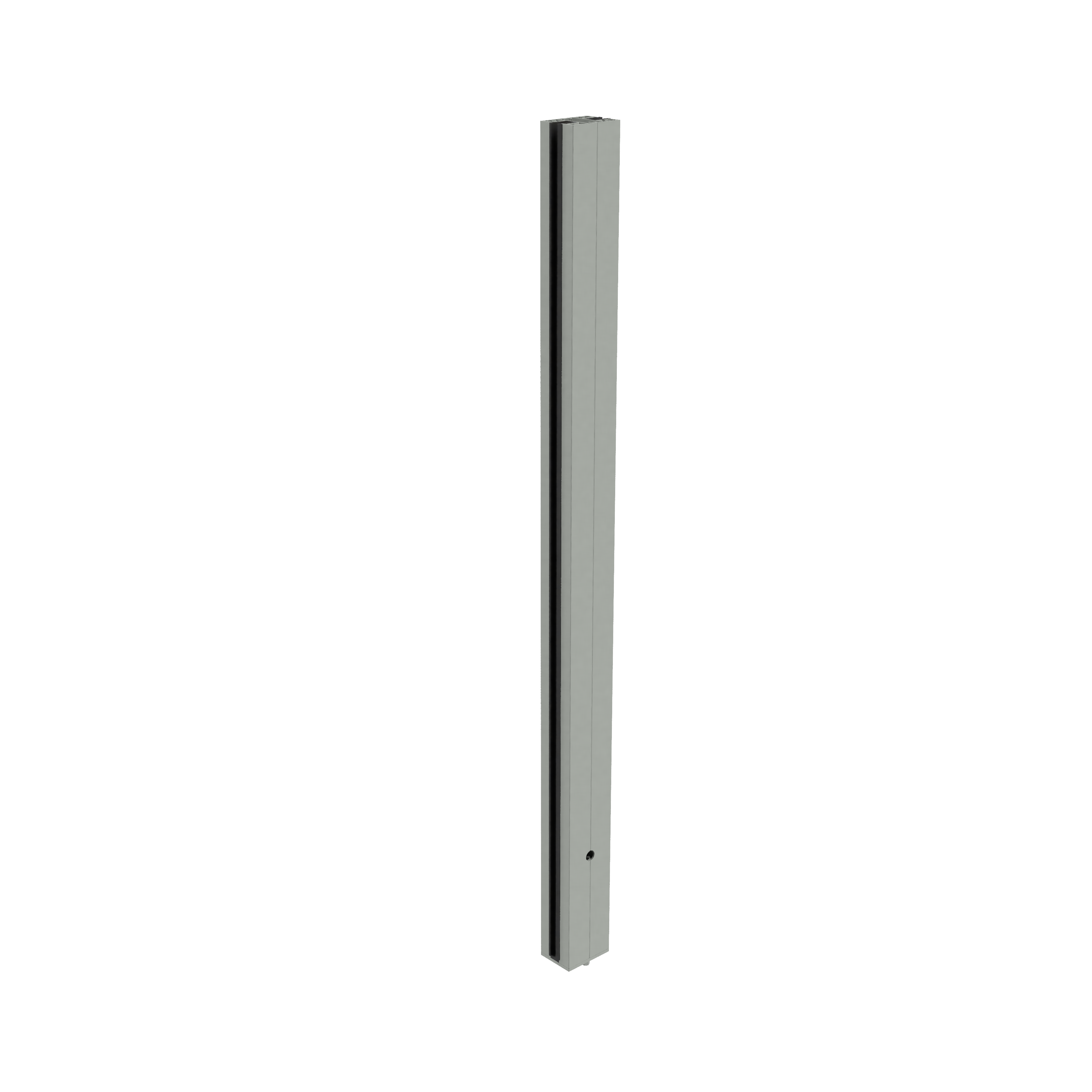

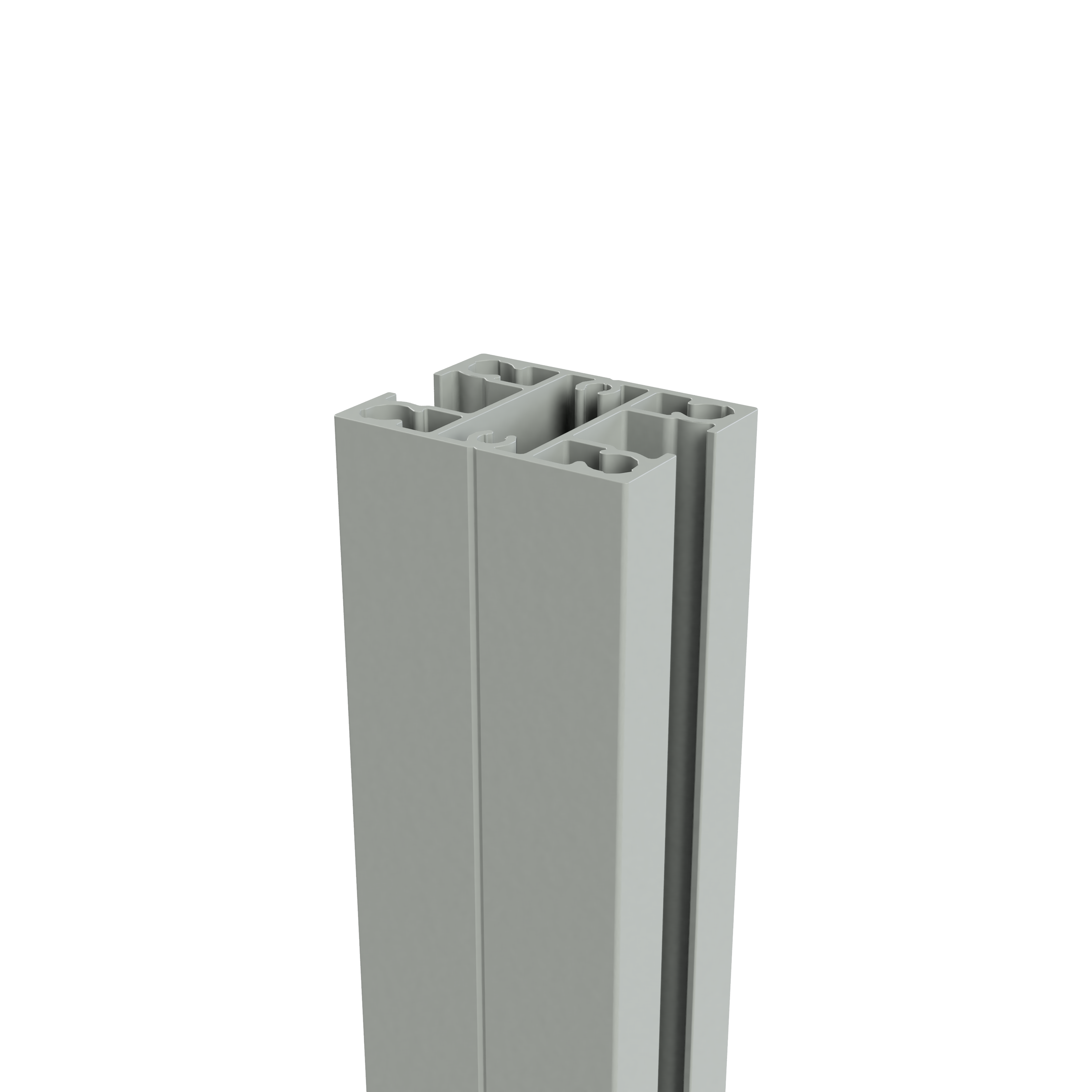

The 45×60 mm aluminium post is a structural component designed for aluminium glass railing systems. It provides excellent strength, stability, and compatibility with various glass infill and handrail configurations.
The post is suitable for mounting on concrete or timber substructures, ensuring versatility for balconies and terraces railings.
67,00 €
- Description
- Technical Specifications
- Material and Finish
- Performance and Application
- Mounting and Compatibility
- Load Capacity
- Packaging and Delivery
The 45×60 mm aluminium post is a robust and elegant structural element designed for modern glass railing systems. Manufactured from high-strength EN-AW 6005A-T6 aluminium, it delivers excellent load capacity and long-term durability.
Each post is precision-engineered and powder-coated for superior corrosion protection and a smooth finish that withstands harsh weather conditions.
-

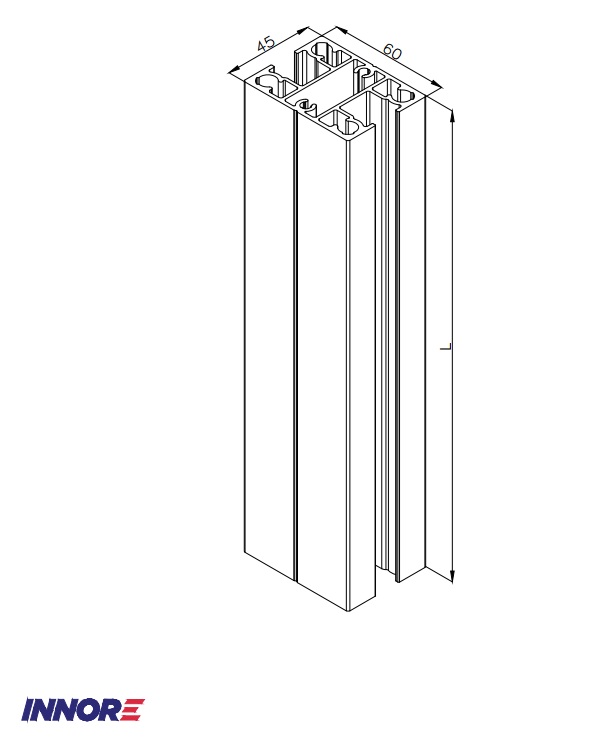

Profile dimensions: 45 × 60 mm
-
Height: Product height is 1.5m which can cut to the right size on the site
-
Wall thickness: Optimized for structural rigidity and lightweight performance
-
Fixing hole spacing: designed for compatibility with standard anchor layouts
Made from high-strength aluminium alloy EN-AW 6005A-T6, ensuring superior corrosion resistance and stability.
Available in a range of durable finishes:
-
Powder-coated (RAL colour range) – customizable tones for architectural harmony
All finishes are tested for C3–C4 corrosion resistance (ISO 12944-2).
-
Designed for side-mounted installation on concrete or timber substructures
-
Provides high rigidity and structural load capacity
-
Compatible with rubber and plastic sealing accessories for glass fixation
-
Ideal for balconies and terraces
-
Easy to install and maintain, reducing on-site installation time
-
Base structure: Concrete or timber
-
Mounting type: Side installation
-
Anchor for concrete: HILTI HSA-R M12×145 mm (1 pc per post)
-
Alternative timber mounting: Rothoblaas HBS PLATE EVO 10×140 mm + M12 A4 washers (3 pcs per post)
-
Post bending resistance: Rd = 2.15 kNm
-
Complies with standards: EN 1991-1-1, EN 1999-1-1, EN 1990
Each post is packed in protective wrapping to prevent scratches during handling and transport.
Top-mount base plates, anchor bolts, and accessories are supplied according to project requirements.
