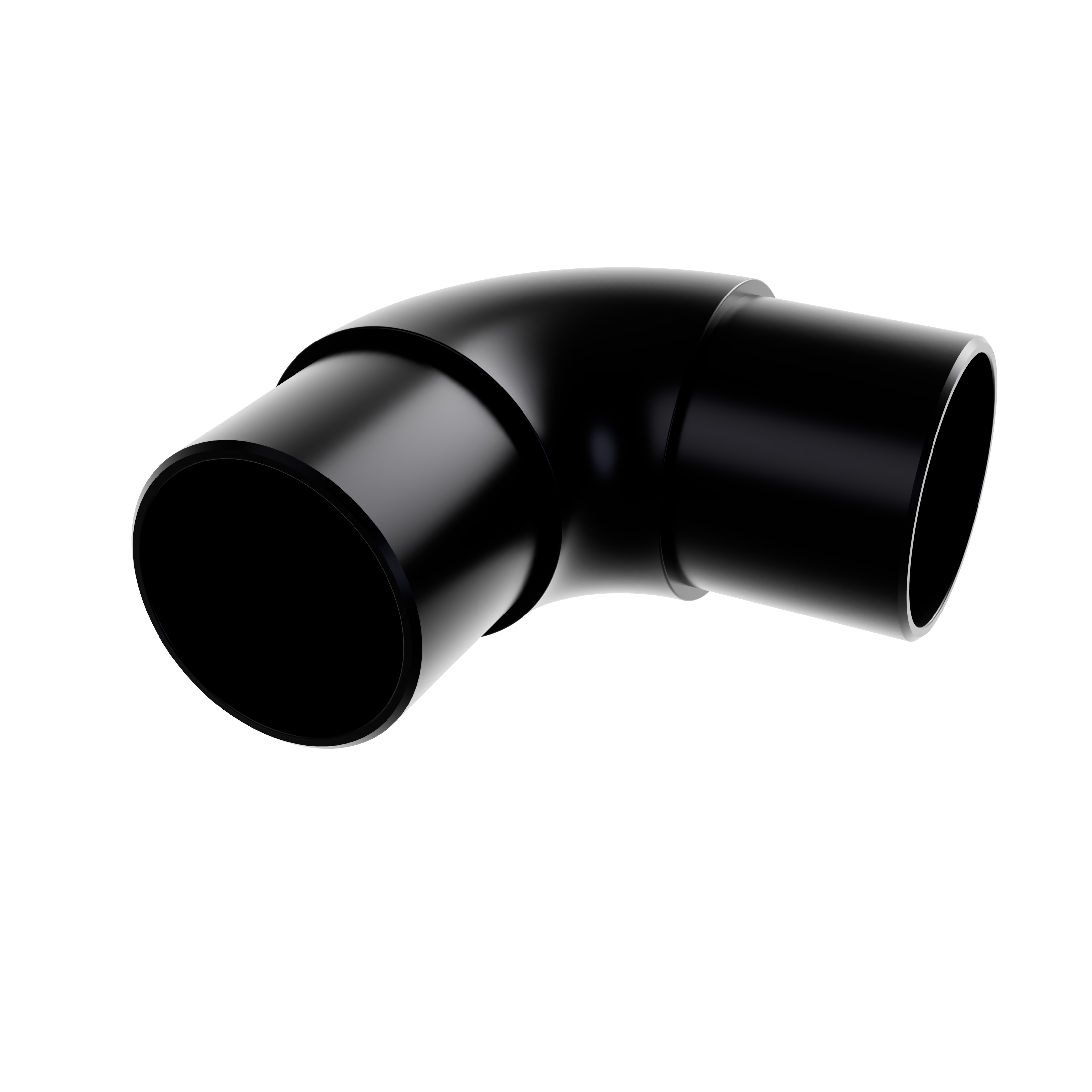

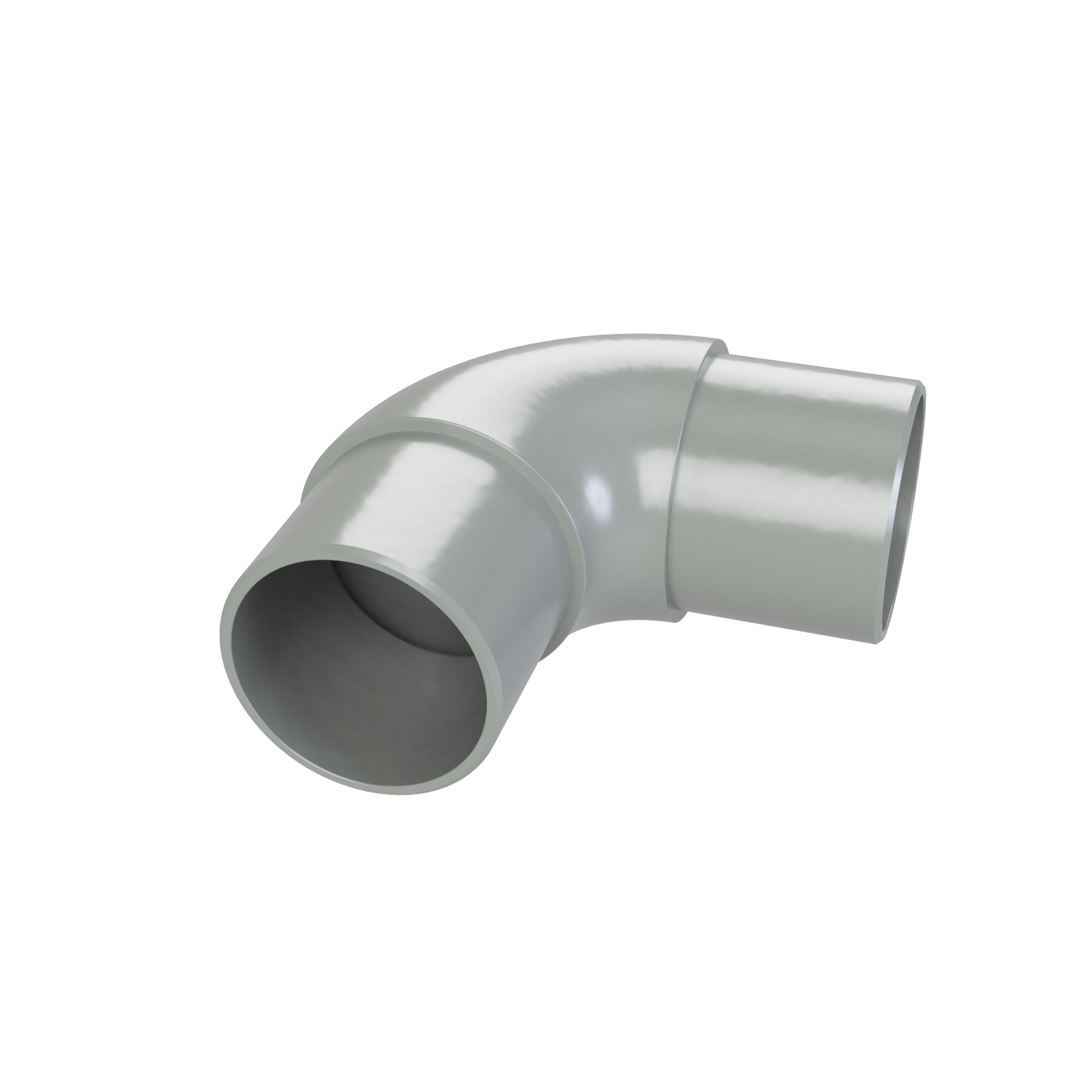

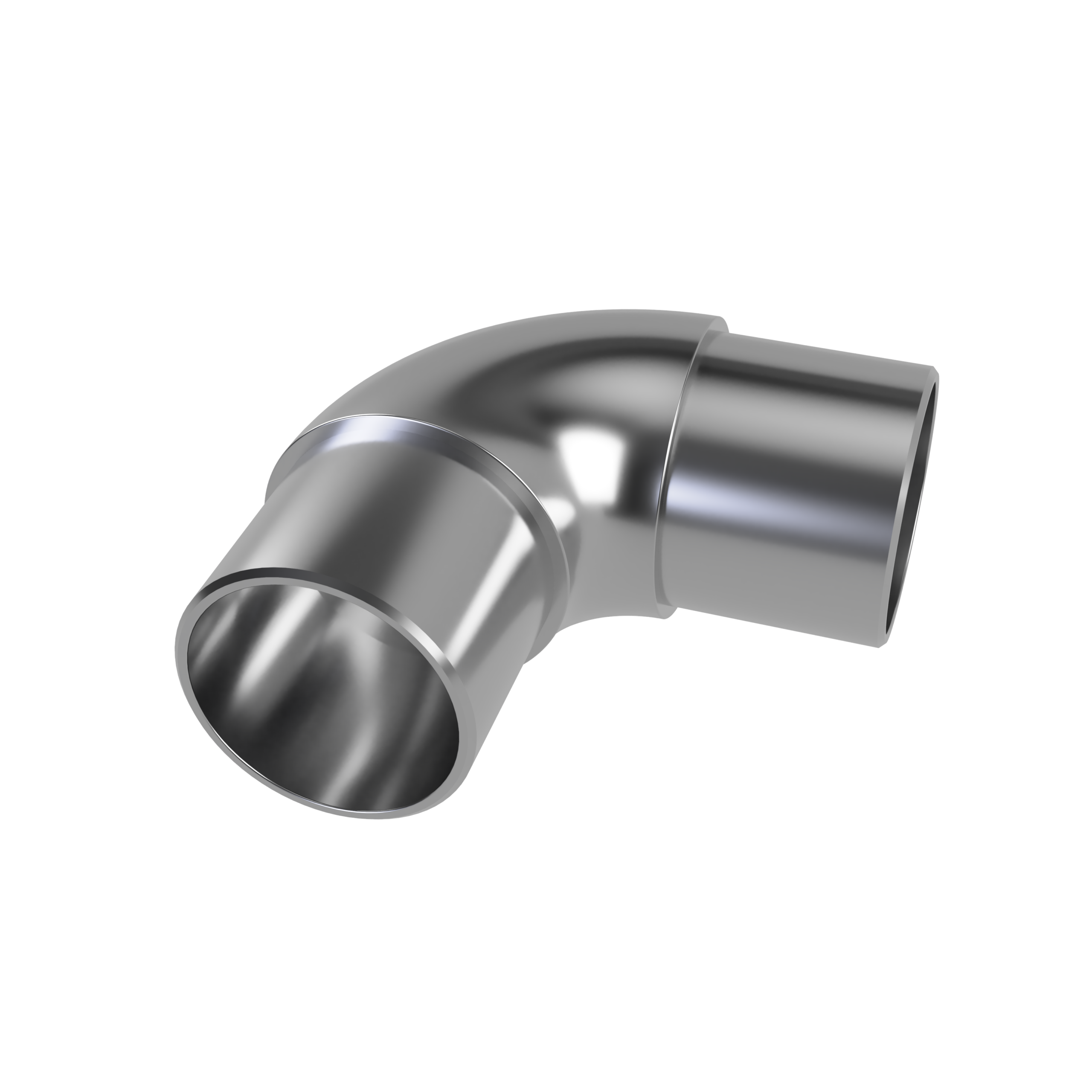

KM115 – non-rotative elbow 90 degree angle connector
The KM115 Connector (Ø42.4×2.0 mm) is a stainless steel curved corner fitting with a option to have an powder-coated RAL finish. Designed for connecting two round handrails seamlessly, it combines elegant design, excellent corrosion resistance, and easy installation for modern railing systems.
Estimated production time is 5 weeks.
Price range: 13,99 € through 26,99 €
- Description
- Technical Specifications
- Material and Finish
- Performance and Application
- Maintenance Information
- Packaging and Delivery
The KM115 Connector is a high-quality 90° curved corner fitting designed for handrails with a 42.4 mm diameter and 2.0 mm wall thickness. Made from stainless steel, it provides both strength and a refined aesthetic, ensuring smooth transitions between handrail sections while maintaining the modern look of the railing system.

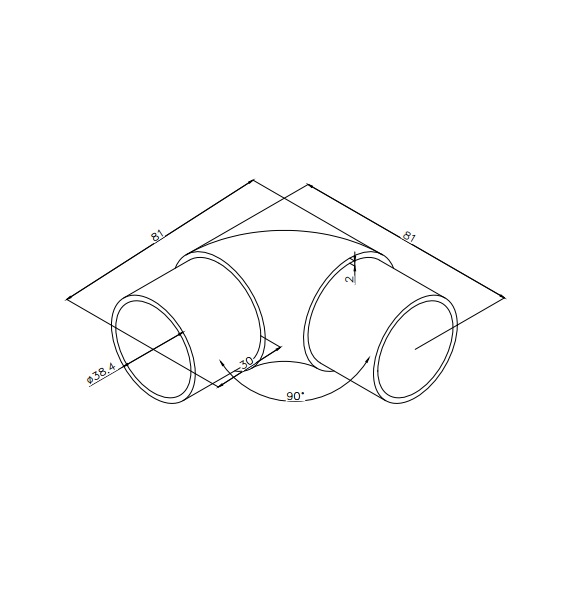

- Dimensions: Ø 42.4 mm × 2.0 mm wall thickness
-
Material grade: Stainless steel(AISI 304 or AISI 316)
-
Surface finish: 320 GRIT, option to have powder-coated finish(available in all RAL colour tones)
-
Diameter: Ø 42.4 mm
-
Wall thickness: 2.0 mm
-
Net weight: 0.23 kg
Manufactured from high-quality stainless steel, the KM115 Connector combines excellent mechanical strength. Optional powder-coated surface (available in RAL colors).
The finish provides both corrosion protection and design flexibility — perfectly matching aluminium or stainless steel railing systems.
-
Suitable for sloped or irregular stair sections
-
Designed for round handrails Ø42.4×2.0 mm
-
Provides secure and precise alignment between handrail elements
-
Ideal for indoor and outdoor applications such as balconies, staircases, and ramps
-
Corrosion protection: C3 (ISO 12944-2) – suitable for outdoor and coastal environments
-
Maintenance: Easy to clean with a soft cloth and mild detergent
Each connector is individually protected to prevent scratches and damage during transport.
