Stainless steel handrail end bend
KM166 - Handrail End Bend 90° - Image 2
KM166 - Handrail End Bend 90° - Image 3

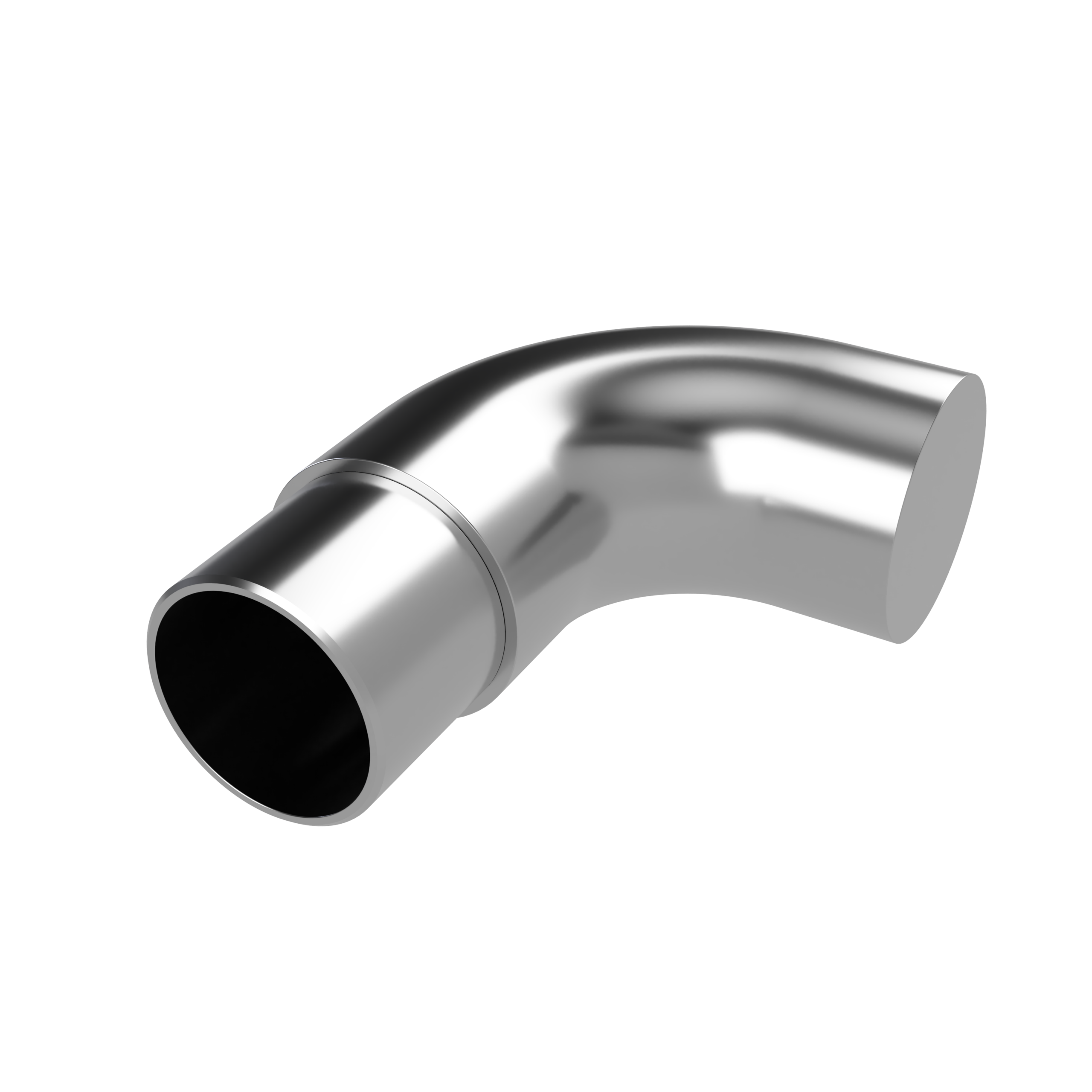

KM166 – Handrail End Bend 90°

The KM166 End Bend (Ø42.4×2.0 mm) is a stainless steel handrail termination fitting with an option for a powder-coated RAL finish. Its smooth 90° curve provides a clean, safe end to handrail runs on staircases, balconies, and ramps. Strong, elegant, and easy to install — ideal for modern railing systems.

Estimated production time is 5 weeks.

Price range: 17,99 € through 27,99 €

Amount

The KM166 Handrail End Bend is a precision-formed stainless steel fitting designed to terminate 42.4×2.0 mm round handrails with a clean 90° downward curve. Its smooth radius provides a safe, finished end to handrail runs on staircases, balconies, and ramp installations.

Engineered for both durability and aesthetics, the KM166 ensures a seamless transition at handrail endings in any architectural application.

  • Material: Stainless steel AISI 316

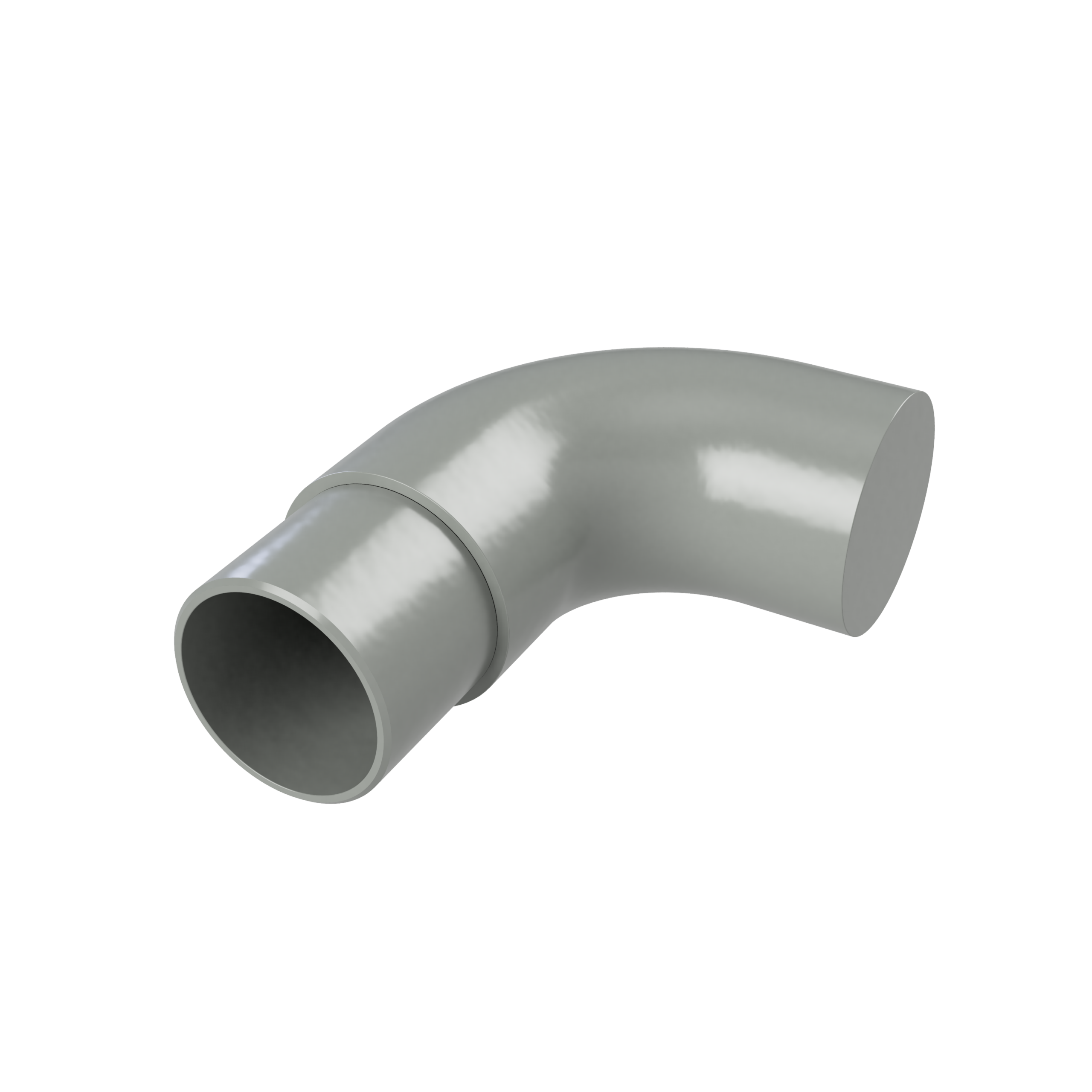

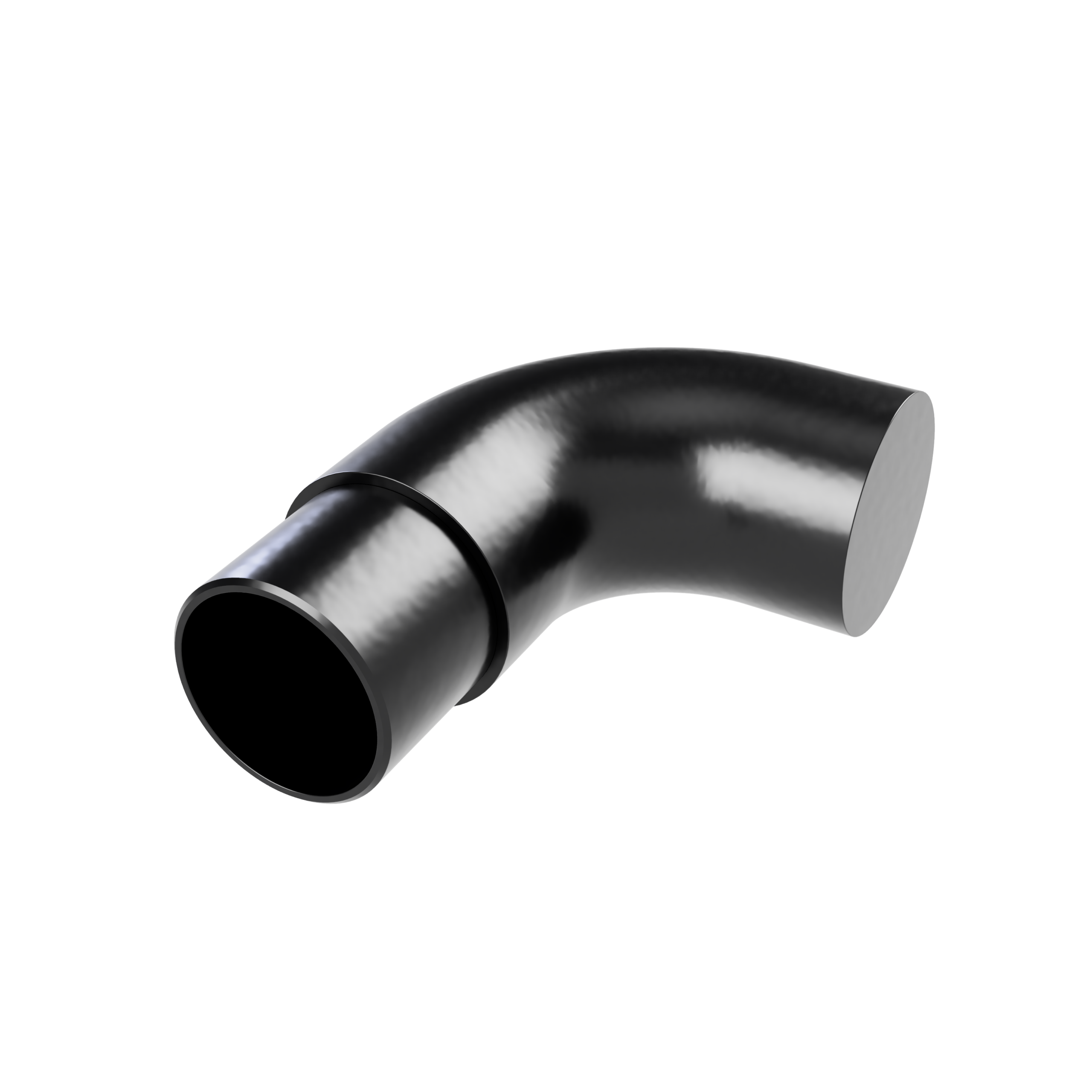

  • Surface finish: 320 GRIT, option to have powder-coated finish(available in all RAL colour tones)

  • Diameter: Ø 42.4 mm

  • Wall thickness: 2.0 mm

  • Range: 90°

  • Net weight: 0.47 kg

Manufactured from high-quality stainless steel, the KM166 Connector combines excellent mechanical strength. Optional powder-coated surface (available in RAL colors).

The finish provides both corrosion protection and design flexibility — perfectly matching aluminium or stainless steel railing systems.

  • Finishing handrail runs with a clean 90° downward curve
  • Designed for round handrails Ø42.4×2.0 mm
  • Provides a safe, finished end to handrail sections
  • Ideal for indoor and outdoor applications such as staircases, balconies, and ramps

  • Corrosion protection: C3 (ISO 12944-2) – suitable for outdoor and coastal environments

  • Maintenance: Easy to clean with a soft cloth and mild detergent

Each connector is individually protected to prevent scratches and damage during transport.
