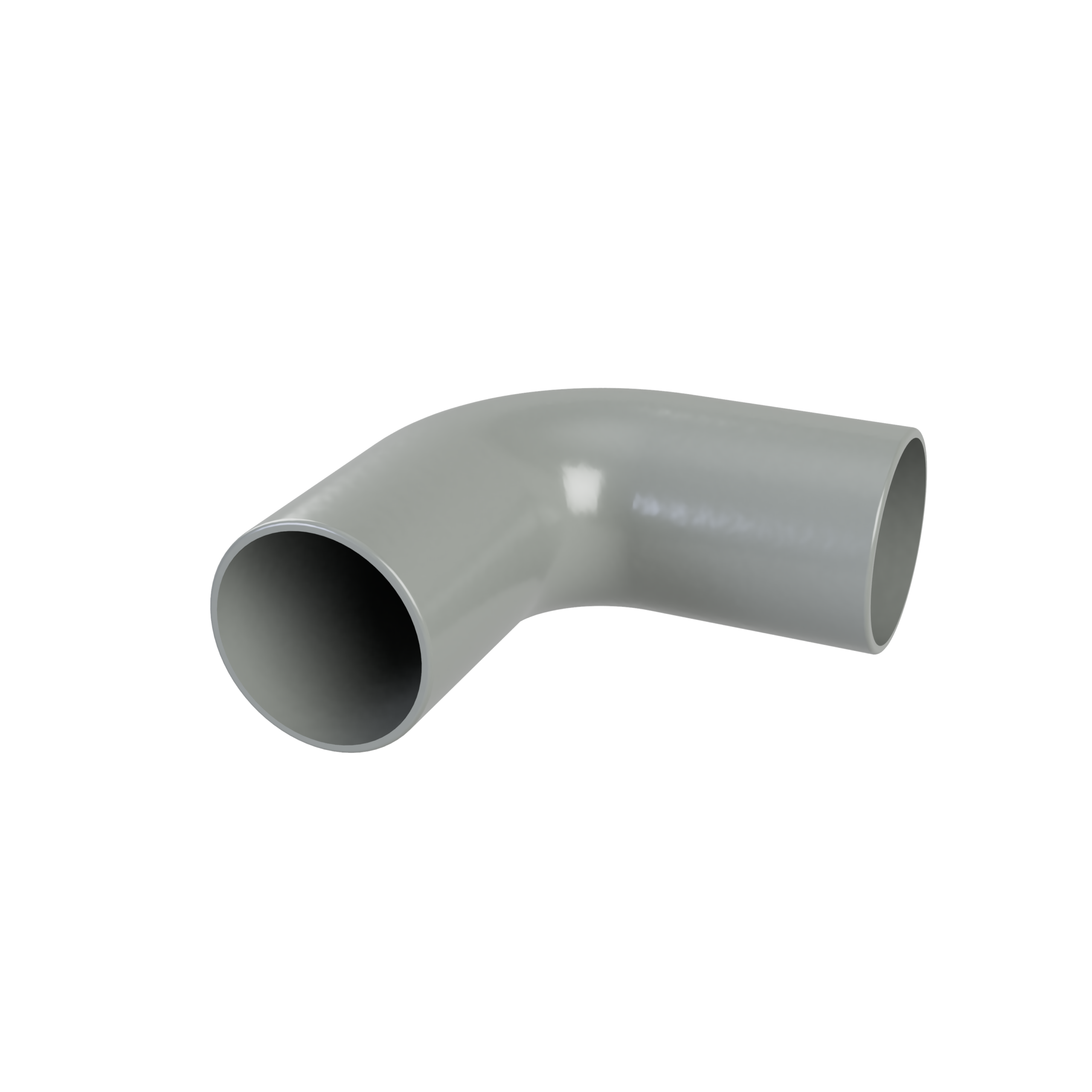

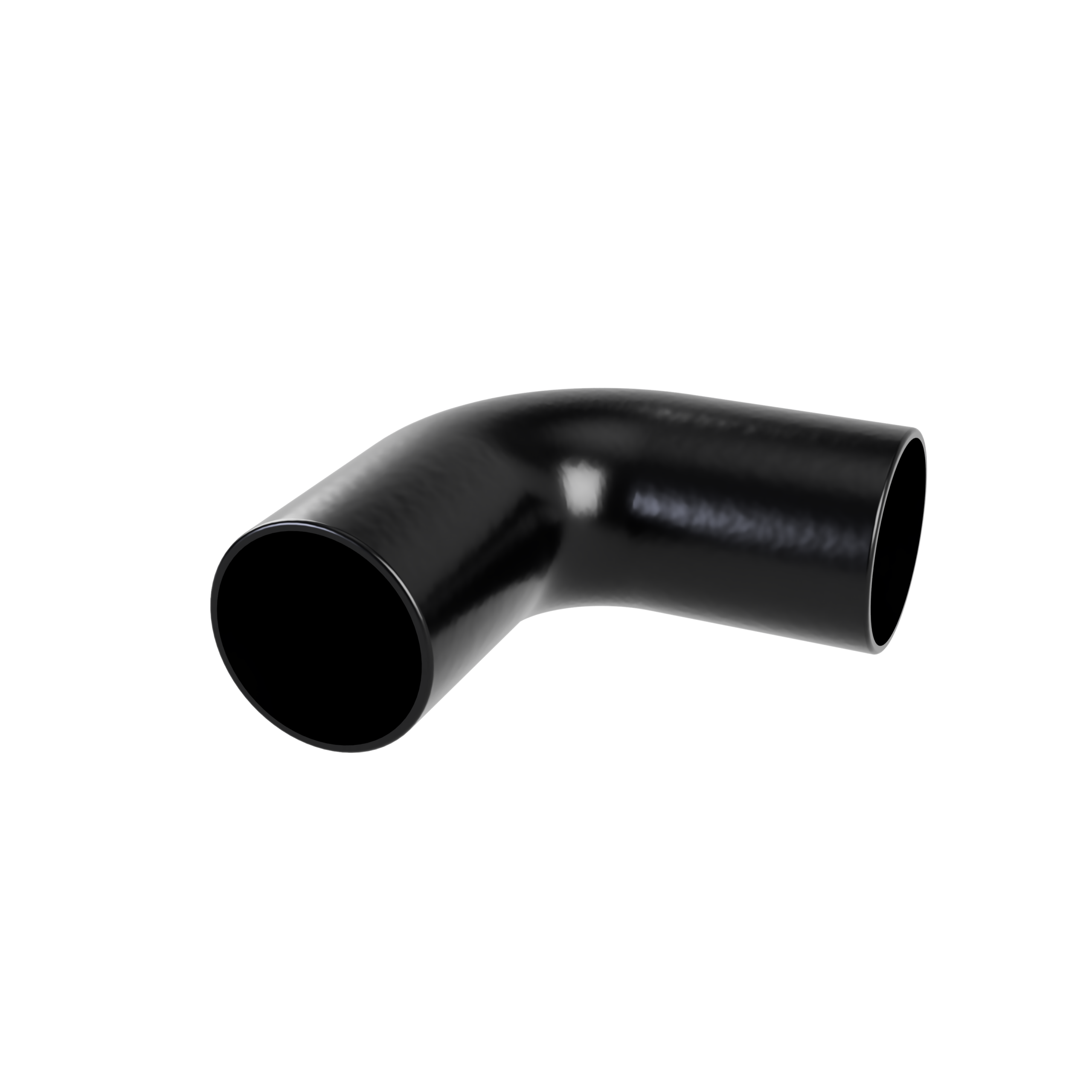

Aluminium 90° Corner Connector for Ø42.4 mm Handrail
Powder-coated aluminium 90° corner connector for Ø42.4 mm round handrails.
The fitting slides over the ends of both handrail sections, creating a clean, curved transition. Each handrail is inserted approximately 40 mm into the fitting and secured with self-drilling screws.
Estimated delivery time: 3 weeks.
16,90 € +VAT
- Description
- Technical Specifications
- Performance and Application
- Maintenance Information
- Packaging and Delivery
The aluminium Corner Connector is a high-quality 90° curved corner fitting designed for handrails with a 42.4 mm diameter. Made from aluminium, it provides both strength and a refined aesthetic, ensuring smooth transitions between handrail sections and adding extra installation tolerances while maintaining the modern look of the railing system.

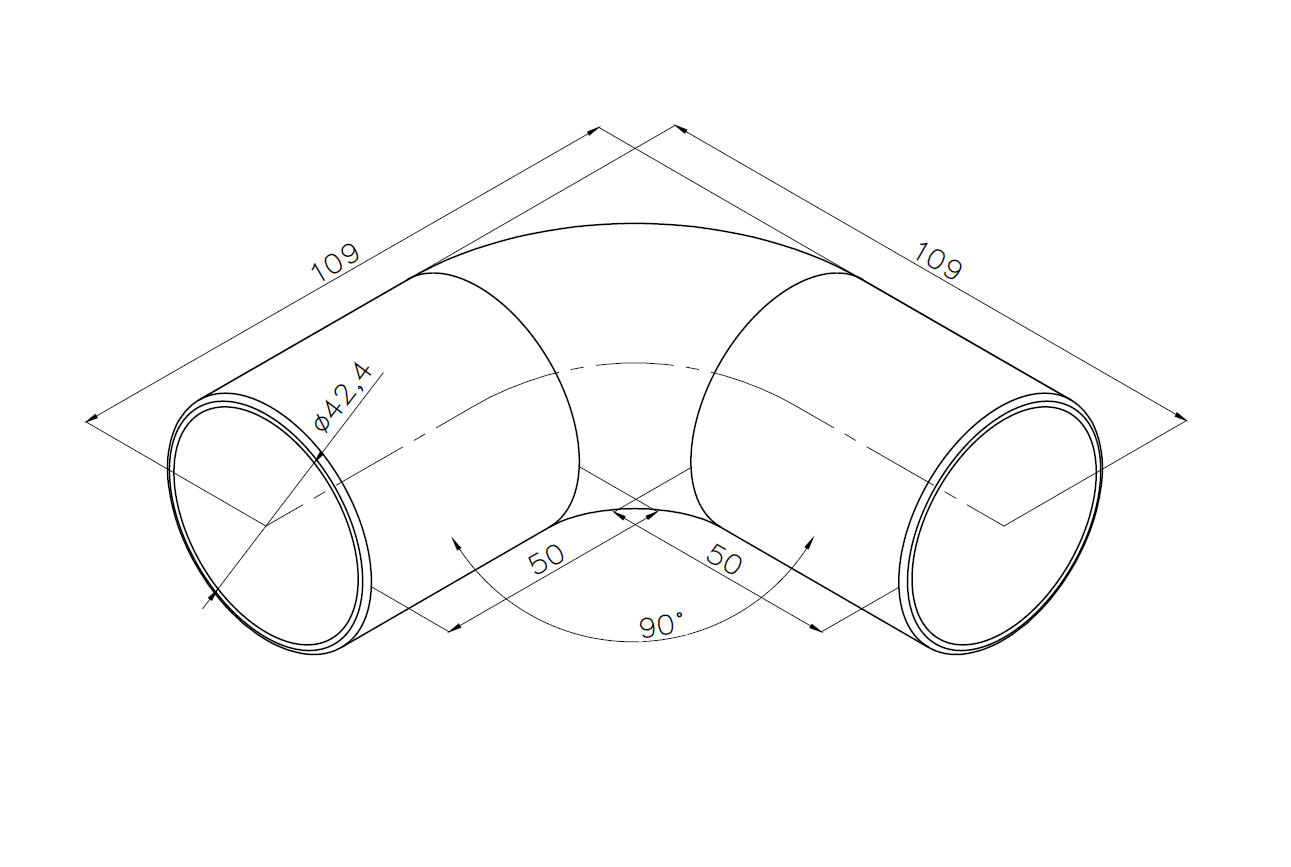

- Overall dimensions: 109 × 109 mm
- Inner diameter: Ø42.4 mm
- Outer diameter: Ø47 mm
- Angle: 90°
- Material: Aluminium
- Surface finish: Powder-coated with a standard gloss finish (75 GU)
- Shape: Curved corner connector
- Connection type: External sleeve connection
- Handrail insertion depth: Approximately 40 mm at each end
- Fixing method: Round-head self-drilling screws, SD 4.8 × 16 mm (not included)
- Quantity: 1 pc
- Download isometric drawing (PDF)
- Designed for joining two Ø42.4 mm round handrail sections at a 90° angle.
- The fitting slides over the ends of both handrail sections, providing an overlap of approximately 40 mm at each end.
- The handrails are secured to the fitting with self-drilling screws.
- Creates a smooth, curved transition between adjoining handrail sections.
- Suitable for indoor and outdoor railing systems, including stairways, balconies and terraces.
- Clean the powder-coated surface periodically using water, a soft cloth and a mild detergent. Do not use abrasive cleaners or tools that could damage the surface finish.
- The fixing screws and the connection between the fitting and the handrails should be inspected periodically and tightened if necessary.
- Each connector is individually packed in protective material to prevent scratches during handling and transport.
- Estimated delivery time: 3 weeks.
