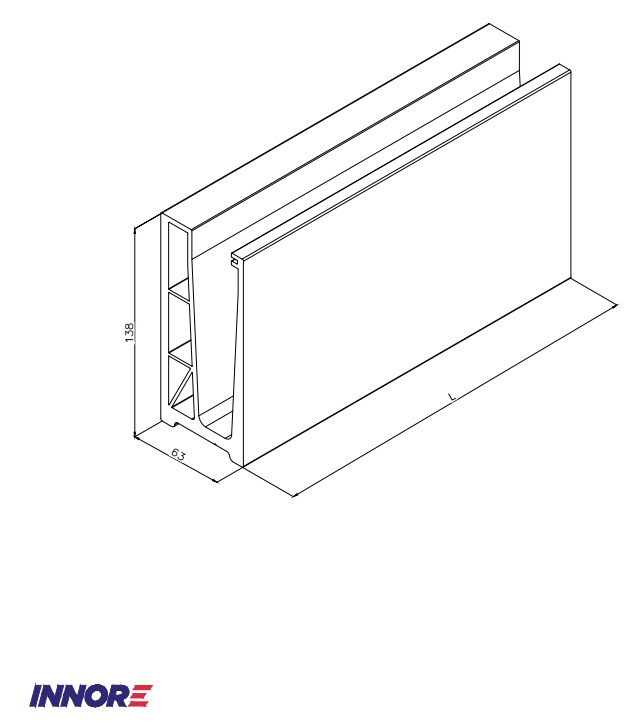

INSPENT Concrete profile
The INSPENT Concrete is a high-quality aluminium base channel for glass railings. Available in RAL powder-coated finishes. Supplied with rubber seals and plastic components for easy mounting.
Profiles are supplied in 3.0 m lengths and can be cut to the required size on-site as needed.
268,79 €
- Description
- Additional information
- Technical Specifications
- Material and Finish
- Performance and Application
- Maintenance Information
- Packaging and Transport
The INSPENT Concrete profile is a high-performance aluminium base profile designed forglass railing systems. Its innovative design allows for precise glass levelling within the profile, significantly reducing installation time and ensuring perfect alignment.
Suitable for balconies, terraces and public spaces where safety, speed, and design are equally important.
| Glass thickness | 1010.4 glass, 88.4 glass |
|---|
-
Unit: per piece
-
Glass thickness range: 88.4 and 1010.8
-
Profile length: 3.0 m (custom lengths available)
-
Integrated drainage channel: yes
-
System tested line load: 2.25 kN/m
-
Includes: rubber gaskets and plastic fixing components for glass installation
-
Material: Aluminium extrusion (high-strength structural grade)
-
Available surface finishes:
-
Brushed stainless-look anodized finish
-

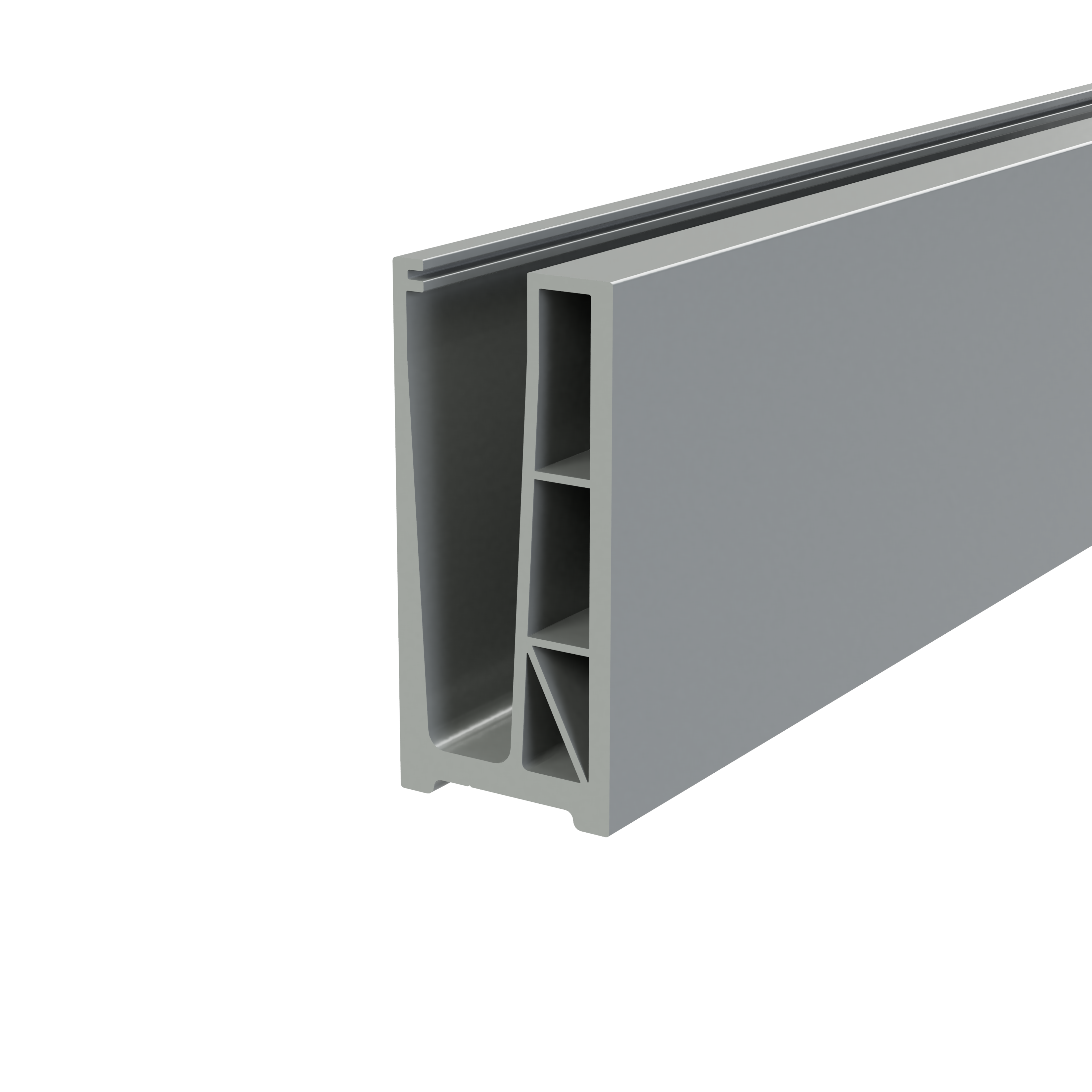

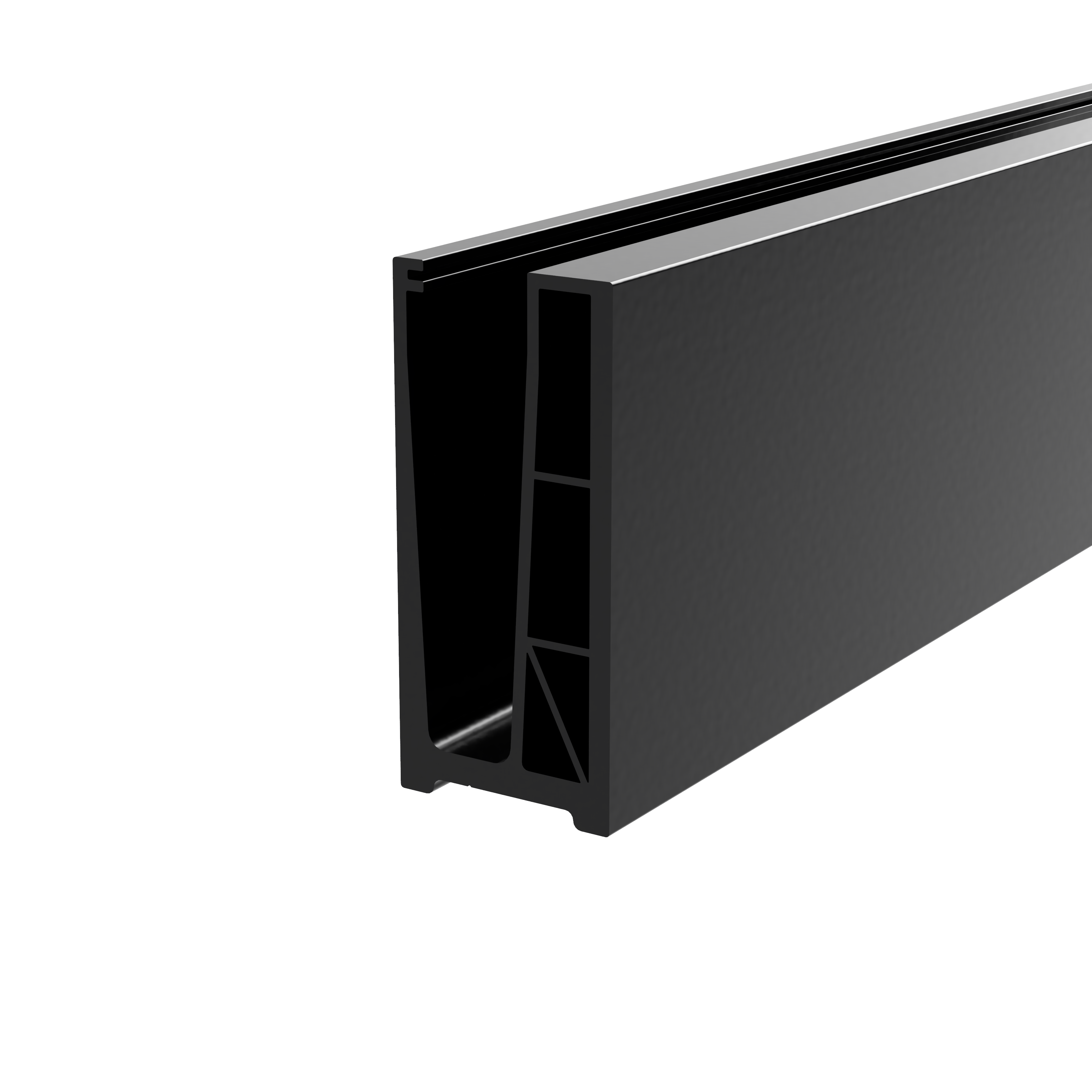

RAL powder-coated finish (custom colours available)
-
Each finish ensures corrosion resistance, long-term durability, and compatibility with modern architectural designs.
-
Designed for glass railings and bottom-mounted installations
-
Allows precise vertical glass adjustment inside the profile for easy alignment
-
Compatible with laminated and tempered safety glass
-
Ensures fast installation and clean aesthetics without visible screws or clamps
-
Suitable for indoor and outdoor environments
-
Corrosion protection: Depending on finish, corresponds to C3–C4 classification (ISO 12944-2)
-
Maintenance: Periodic cleaning recommended; inspect drainage channel regularly
-
Expected service life: >25 years under standard conditions
Profiles are supplied in 3.0-meter bars, individually protected with wrapping film or wooden crate packaging.
Custom lengths available upon request. All packages include rubber seals and plastic accessories required for glass fixation.
