F-LINE Nordkapp

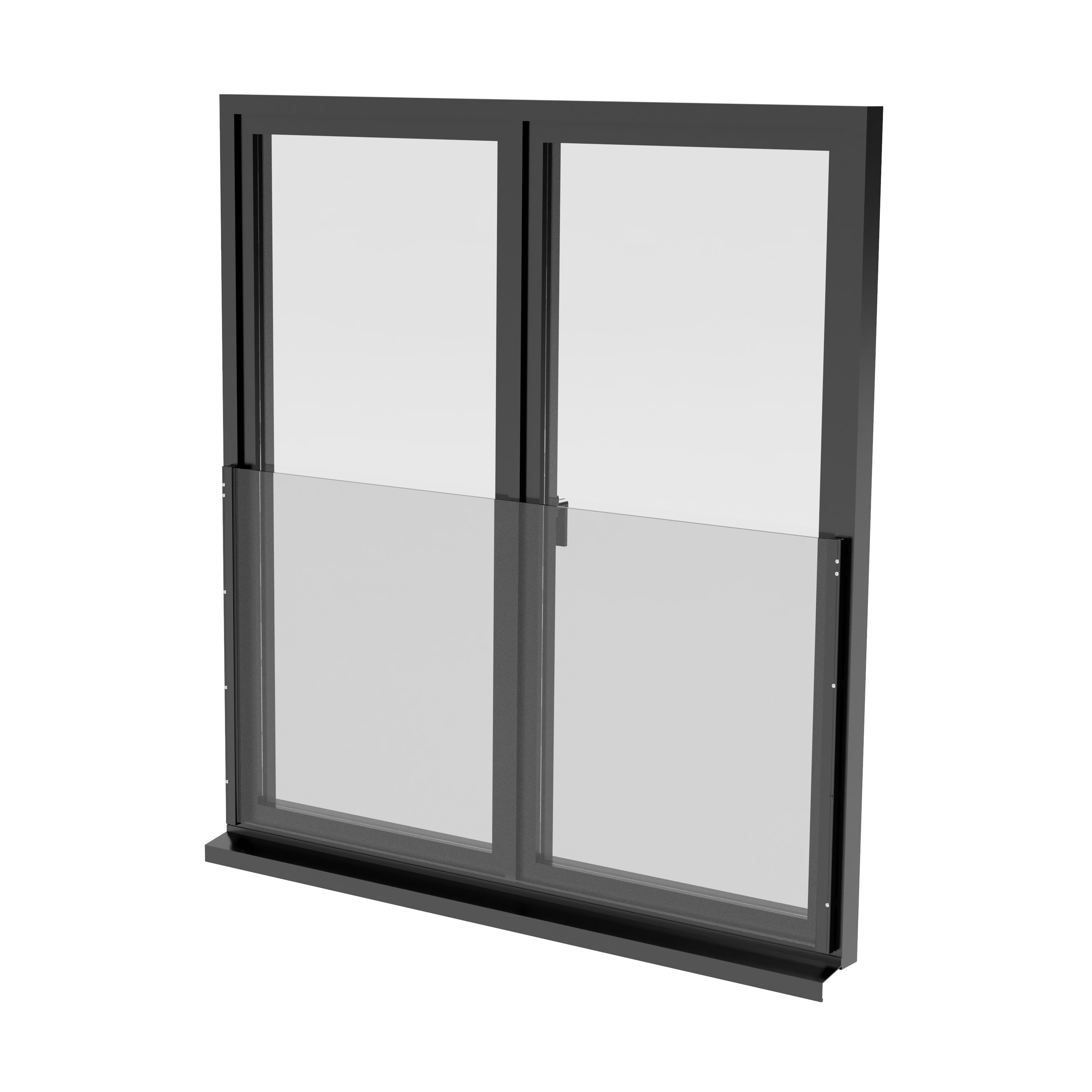

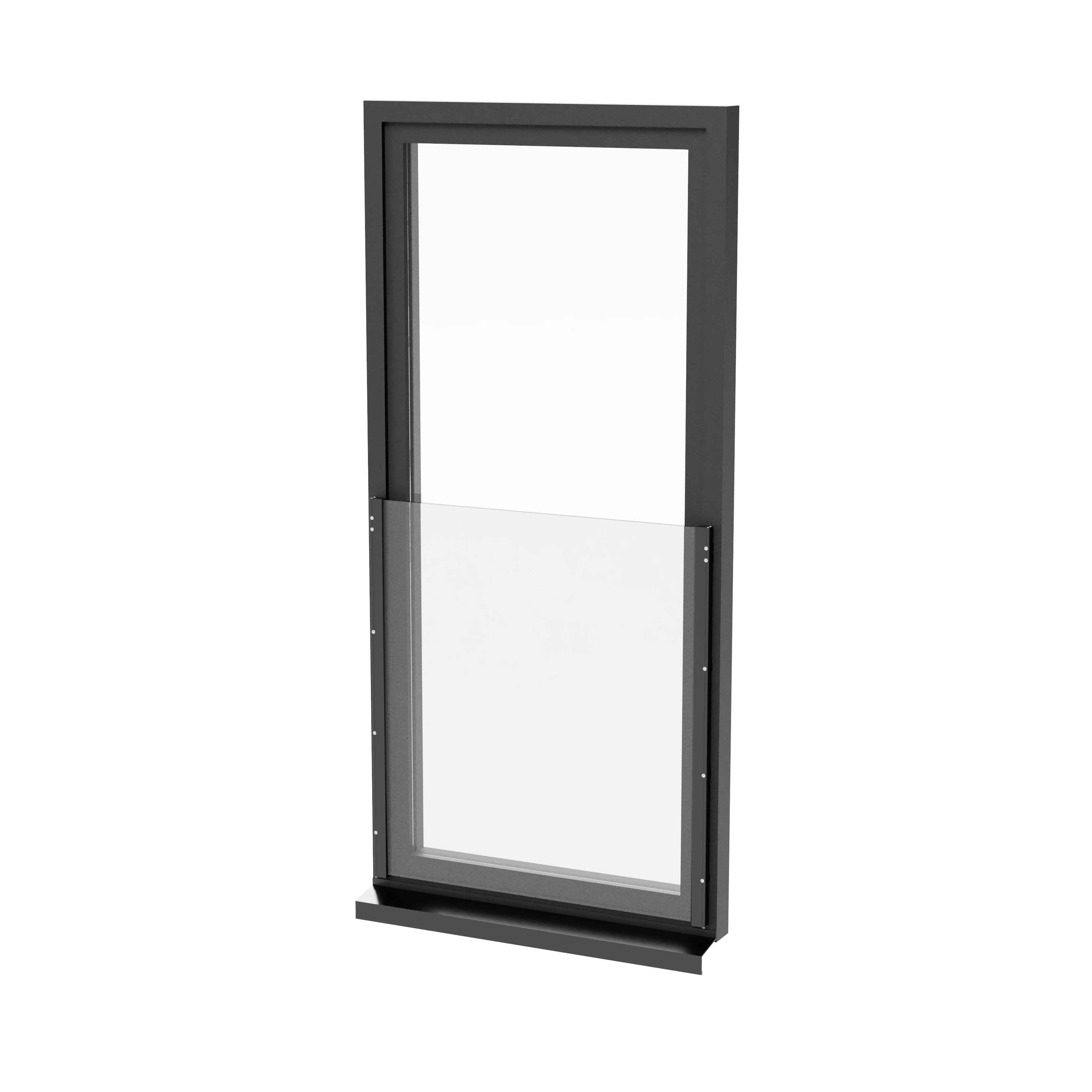

The F-Line Nordkapp is a powder-coated aluminium French balcony system where laminated safety glass is mounted between vertical 25×37 mm profiles.
Designed for installation onto window frames, it provides modern aesthetics, strong fall protection, and high corrosion resistance.
- Description
- Technical Specifications
- Materials
- Mounting System
- Load-Bearing Capacity
- Documents and manuals
The F-Line Nordkapp is a French-style balcony railing system installed directly onto the window frame. Designed for quick and reliable installation, the system allows mounting either into wood or into aluminium+wood structures using high-grade corrosion-resistant fasteners.
Laminated safety glass is mounted between vertical aluminium profiles (25×37 mm), creating an elegant and secure fall-protection solution for full-height windows.
All aluminium profiles are powder-coated, ensuring excellent durability and a clean architectural appearance suitable for modern residential and commercial facades.
-
Standard height: depends on national regulations; minimum 1.0 m above the walking surface
-
Profile dimensions: 25×37 mm aluminium profiles
-
Glass placement: installed between vertical profiles
-
Aluminium profiles: EN-AW 6063-T66
-
Glass: laminated or laminated/tempered safety glass (EN 14449)
-
Aluminium profile coating: powder-coated (RAL colours)
-
Corner caps: powder-coated
-
Fasteners: uncoated
Option to be mounted onto aluminium–wood window frames or solid wood window frames.
-
Fastener options:
-
For aluminium + wood: HBS PLATE EVO 5×80 mm (5 pcs per side)
-
For wood only: HBS PLATE EVO 5×70 mm (5 pcs per side)
-
-
Requirements: substrate must meet required structural load capacity
Complies with: EN 1991-1-1, EN 1999-1-1, EN 1990
-
Post bending resistance: Rd = 2.5 kNm
-
Maximum line load at handrail height: Qk = 1.0 kN/m
-
Maximum point load (glass): Qk = 1.0 kN (NS 3510)
-
Pendulum impact resistance: 2(B)2 (EN 12600:2002)
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
