F-Line Gotland

The F-Line Gotland offers a discreet and stylish French balcony solution, combining slim aluminium framing with secure safety glass to protect full-height windows without altering the building’s architecture.

Its lightweight construction, weather-resistant materials, and clean, frameless appearance make it an excellent choice for modern homes and apartments where safety must blend seamlessly with design.

⚙ Configure your own product

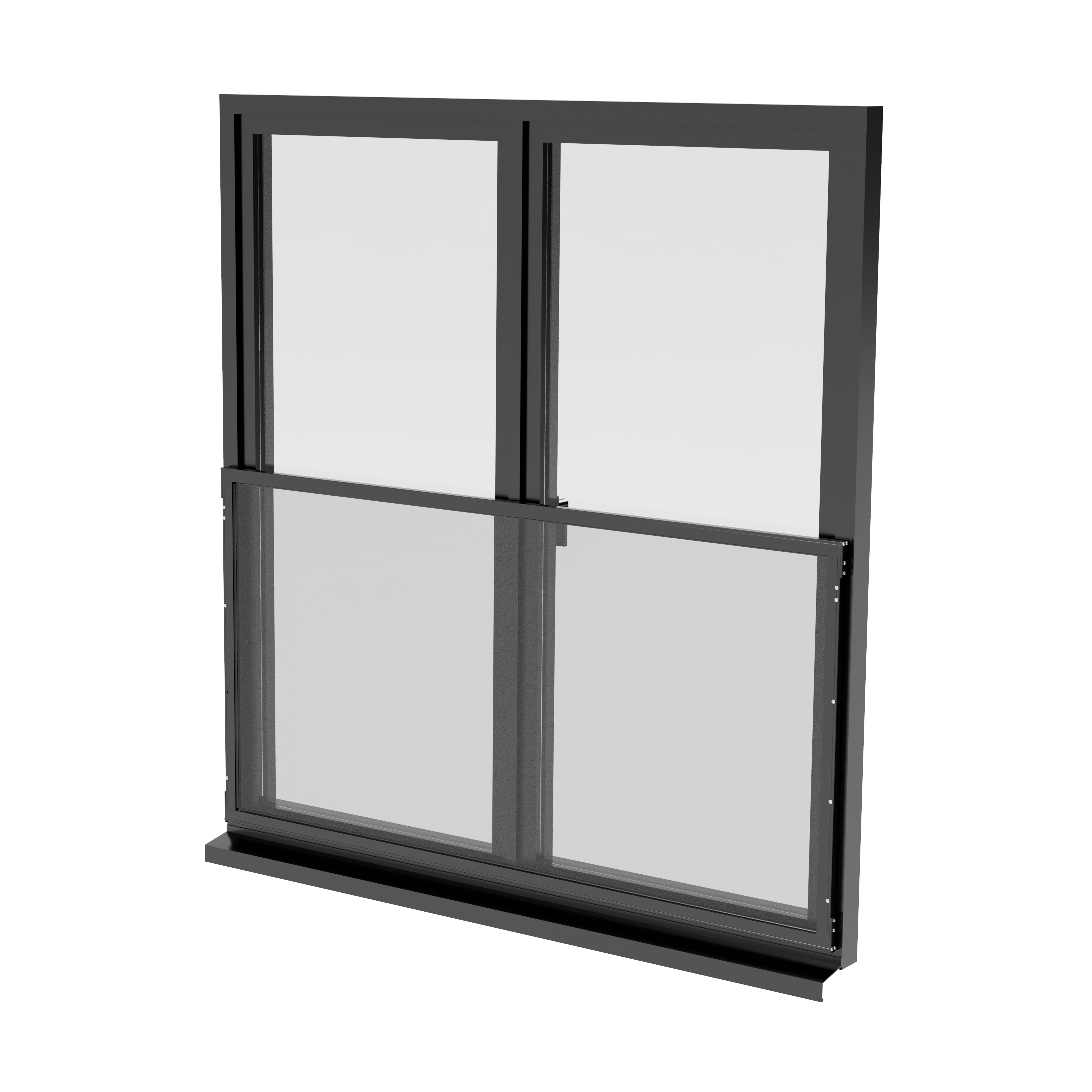

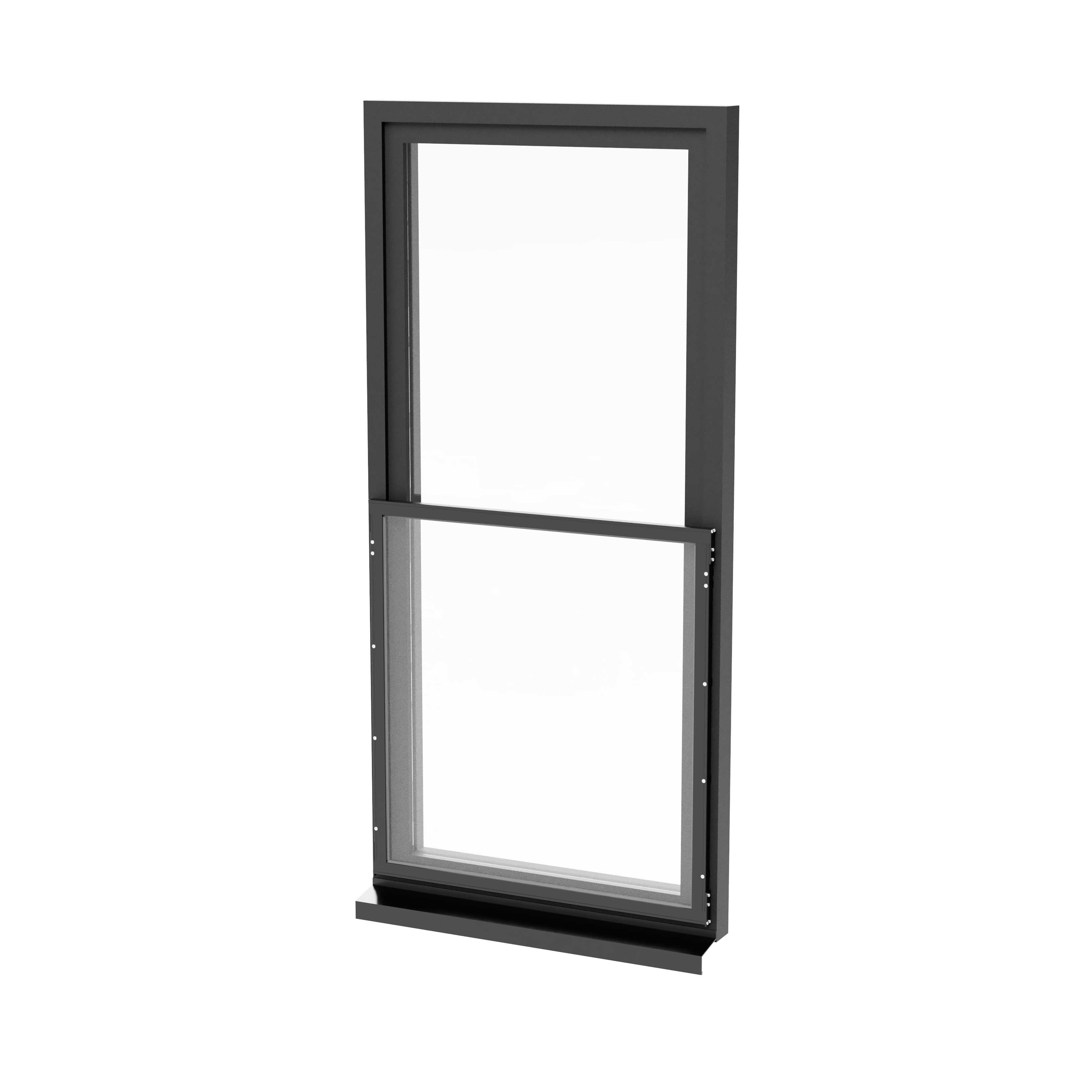

The F-Line Gotland is a slim and elegant aluminium railing system designed to be mounted directly onto window frames.

The system features a protective safety glass element supported by 25×37 mm aluminium profiles, creating a lightweight yet secure French balcony solution. All aluminium components are powder-coated for long-lasting durability, while the system uses no visible external fastening elements, preserving a clean and minimalistic façade appearance.

All aluminium components are finished with durable RAL powder coating, ensuring excellent weather resistance, colour retention, and seamless integration with the building’s exterior.

  • Standard height: depends on national regulations; minimum 1.0 m above walking surface

  • Profile dimensions: handrail / frame profile 25×37 mm

  • Glass position: mounted behind aluminium profiles

  • Aluminium profiles: EN-AW 6063-T66

  • Fasteners (wood): hardened stainless EVO screws, C4 corrosion class

  • Fasteners (aluminium + wood): Ruspert-coated screws, corrosion class C3

  • Glass: laminated/laminated+tempered safety glass (EN 14449)

  • Aluminium profiles: powder-coated (RAL colour selection)

  • Handrail corner caps: powder-coated, colour-matched

  • Fasteners: uncoated (for serviceability)

  • Option to be mounted onto aluminium–wood window frames or solid wood window frames.

    Fastener options:

    • Aluminium + wood: HBS PLATE EVO 5×80 mm (5 pcs per side)

    • Wood only: HBS PLATE EVO 5×70 mm (5 pcs per side)

    Requirements: the substrate must meet the required structural load capacity.

Complies with: EN 1991-1-1, EN 1999-1-1, EN 1990

  • Post bending resistance: Rd = 2.5 kNm

  • Maximum line load (handrail height): Qk = 1.0 kN/m

  • Maximum point load: Qk = 1.0 kN (NS 3510)

  • Pendulum impact test: 2(B)2 (EN 12600:2002) – suitable for fall protection

All technical documentation and installation manuals related to this product are available on our documentation page.

Please follow the link below to access the latest versions of product-specific documents
