F-LINE Molde

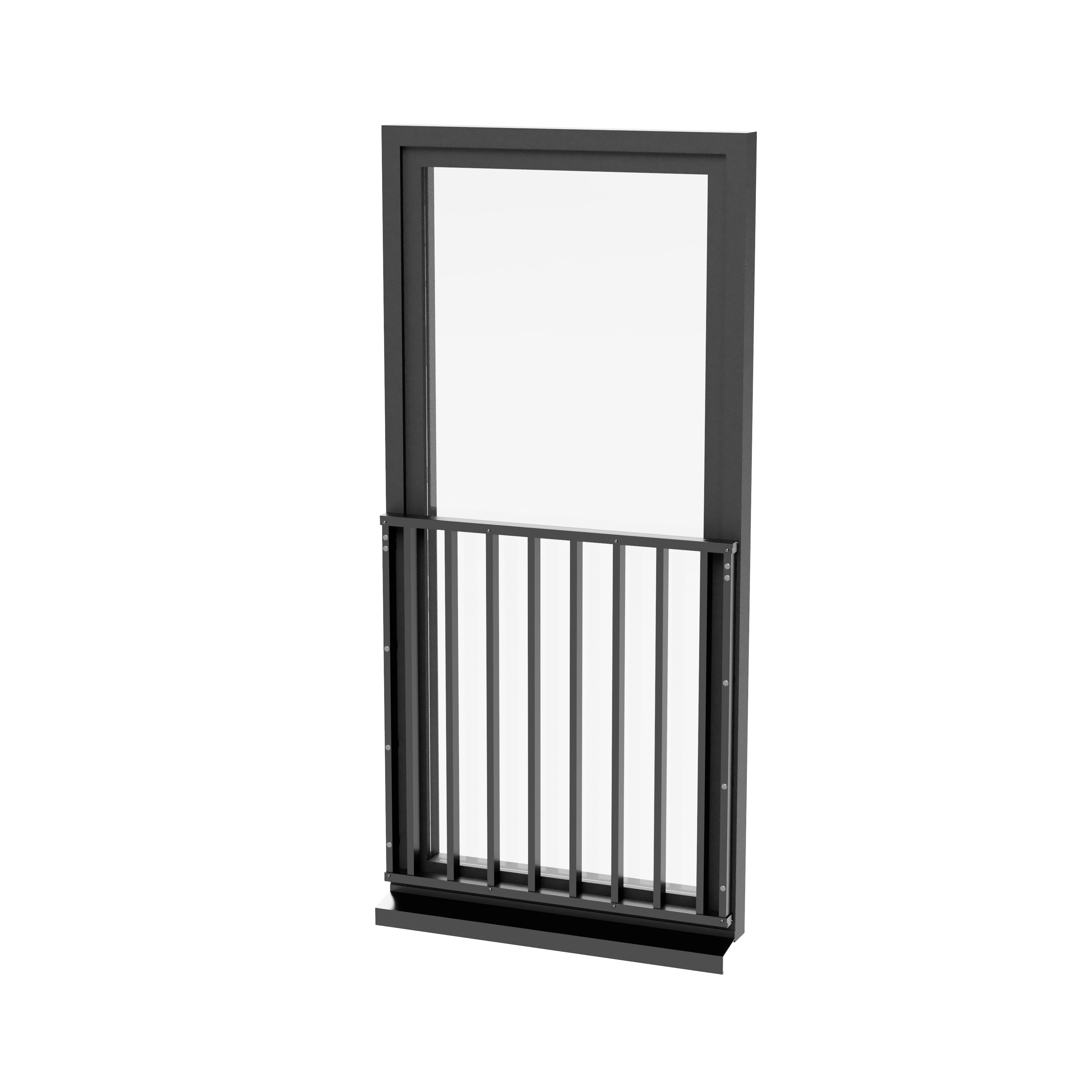

The F-Line Molde is a powder-coated aluminium French balcony system featuring vertical 20×40 mm profiilid mounted behind 26×48 mm horizontal profiles.
Designed for installation onto window frames, the system provides reliable fall protection with a classic aesthetic and high corrosion resistance.
- Description
- Technical Specifications
- Materials
- Surface Finish
- Mounting Options
- Load-Bearing Capacity
- Transport
- Documents and manuals
F-Line Molde is a French-style balcony railing designed to be installed directly on the window frame. Vertical steel bars (20 × 40 mm) are attached to horizontal aluminum profiles measuring 26 × 48 mm. The system is designed for quick and reliable installation on both wooden substrates and combined aluminum and wooden frames.
This solution gives the railing a strong and classic look, while ensuring compliance with modern safety requirements. All aluminum profiles are powder-coated for long-term durability, while the steel bars and fasteners are equipped with corrosion-resistant coatings, suitable for use in demanding outdoor conditions.
Optional Features
-
Aluminium profiles: RAL powder-coating colours available
-
Standard height: Follows national safety regulations; minimum 1.0 m above the walking surface
-
Aluminium profile dimensions: 25×37 mm
-
Vertical profiles: 20×40 mm,
-
Aluminium profiles: EN-AW 6063-T66
-
Fasteners (wood): Carbonsteel screws, C4 corrosion class
-
Fasteners (aluminium + wood): Ruspert-coated screws, corrosion class C3
-
Aluminium profiles: Powder-coated (RAL colour range)
-
Fasteners: Not powder coated
Option to be mounted onto aluminium–wood window frames or solid wood window frames.
Fastener options:
-
Aluminium + wood: HBS PLATE EVO 5×70 mm (5 pcs per side)
-
Wood only: HBS PLATE EVO 5×60 mm (5 pcs per side)
Requirements: the substrate must meet the required structural load capacity.
Complies with: EN 1991-1-1, EN 1999-1-1, EN 1990
-
Maximum line load at handrail height: Qk = 1.0 kN/m
-
Maximum point load: Qk = 1.0 kN (NS 3510)
-
Pendulum impact test: 2(B)2 (EN 12600:2002)
The fence system arrives on wooden pallets that are specially designed for safe transportation. Proper securing of all packages during transportation is essential to prevent load shifting and possible damage to the products.
We recommend that all packages be inspected upon arrival and proper installation procedures be followed to ensure integrity and functionality.
All technical documentation and installation manuals related to this product are available on our documentation page.
Please follow the link below to access the latest versions of product-specific documents
