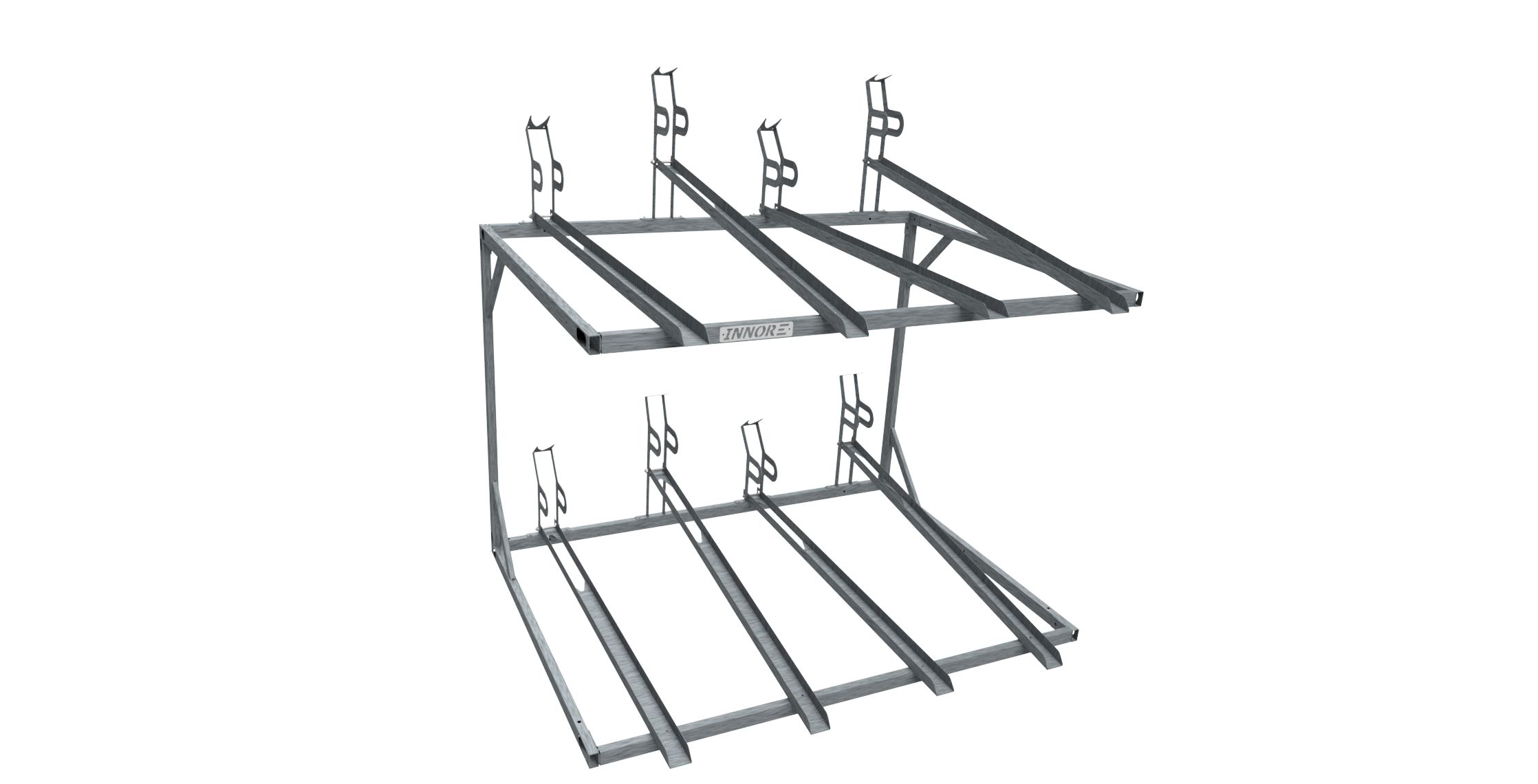

BICYCLE RACK 01/08 – Double‑tier 8-space bike rack
BICYCLE RACK 01/08 is a double‑tier stationary bike rack with 8 parking spaces, fixed to the ground with chemical anchors. The hot‑dip galvanized steel frame with integrated U‑channels supports bikes up to 30 kg each, with tyre widths up to 54 mm and wheel diameters from 20 to 29 inches. Designed and manufactured according to EN 1991‑1‑1, EN 1993 and EN 1090‑2, it offers a durable C3‑class corrosion‑protected solution for indoor and outdoor bike parking in residential, commercial and public projects.
824,99 €
- Description
- Technical Specifications
- Performance and Application
- Maintenance Information
- Packaging and Delivery
The BICYCLE RACK 01/08 is a double‑tier stationary bicycle rack with 8 parking spaces, designed for efficient and organized parking in commercial and residential environments. The system is fixed to the ground with chemical anchors and provides secure support for multiple bikes while optimizing use of available floor space.
The rack accommodates bicycles with 20–29 inch wheels and tyre widths up to 54 mm, with a maximum load of 30 kg per parking space. All structural parts are hot‑dip galvanized according to ISO 1461 and combined with C3‑class coated fasteners for durable corrosion protection in typical outdoor conditions. The system is top‑fixed to concrete or asphalt using specified anchors and is designed and manufactured in accordance with EN standards.
The rack is designed for installation on concrete or asphalt substrates using a top‑fix anchoring system. Minimum concrete class is C12/15 according to EVS‑EN 206, and minimum asphalt specification follows EN 13108‑1. Recommended anchoring includes HUS4‑HF 10 × 130 concrete screw anchors for concrete and 10 × 140 wood screws with CorrSeal CE coating for asphalt/wood substrates
-
Model: BICYCLE RACK 01/08
-
Parking spaces: 8.
-
Bicycle wheel size: 20–29 inches.
-
Tyre width: up to 54 mm.
-
Maximum load per space: 30 kg.
-
Standard height to upper tier: 1294 mm.
-
Recommended spacing: 375 / 400 / 450 mm.
-
Module weight: approx. 64–67 kg.
The rack is suitable for residential, commercial and public bicycle parking areas, including bike rooms, parking garages and covered outdoor spaces. Its double‑tier layout helps save floor space while keeping bicycles easy to park and retrieve. The front fixing detail and shaped U‑channel help prevent the bicycle from rolling back.
All main steel components are hot‑dip galvanized in accordance with ISO 1461 for long‑term corrosion resistance. The rack is suitable for typical outdoor conditions, and the C3-class coated fasteners further improve durability. Maintenance requirements are minimal, making the system a practical solution for everyday use.
The rack is delivered on a fixed wooden pallet and wrapped in protective film. Padding and reinforcement are used during transport to reduce the risk of damage.
