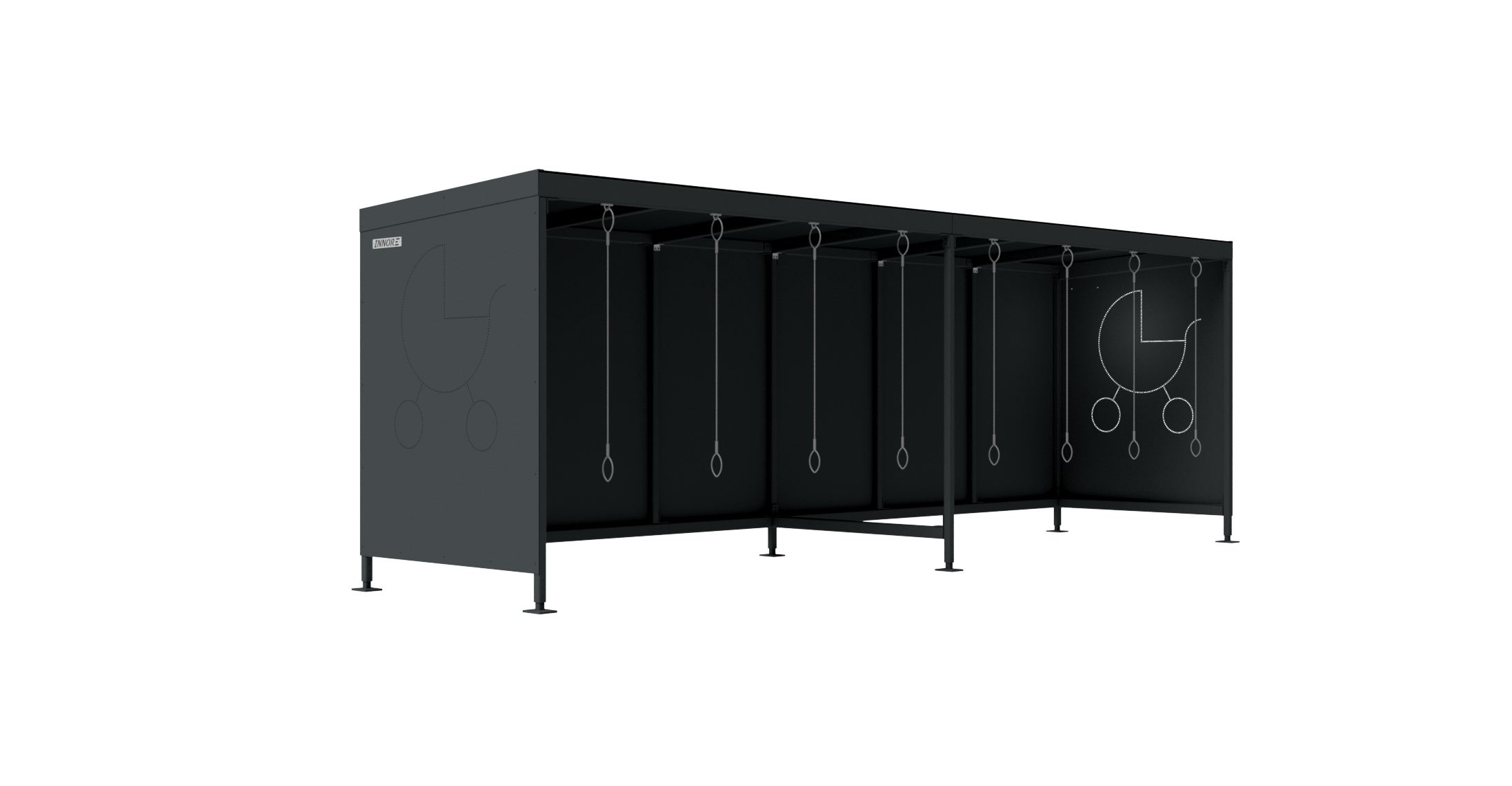

L8 – Modular 8-place stroller shelter
Safe and weatherproof modular stroller shelter for apartment buildings, kindergartens and public spaces. Powder-coated aluminum construction, expandable modular system and high-quality materials ensure a long service life and minimal maintenance.
8780,99 €
- Description
- Technical Specifications
- Material and Finish
- Performance and Application
- Maintenance Information
- Packaging and Delivery
L8 Innore modular stroller shelter is 8-place shelter designed to provide a safe, weatherproof and long-lasting storage solution for apartment buildings, kindergartens, hospitals and other public buildings.
The entire structure is made of high-quality powder-coated aluminum, which ensures excellent corrosion resistance and a long service life even in difficult weather conditions. Thanks to the modular construction, the system can be easily expanded according to the needs of the site.
An additional modules can be added for larger solutions. Adjustable legs allow for precise leveling even on uneven surfaces, and the top-mounted structure is suitable for concrete, asphalt and wooden bases.
Special attention has been paid to safety in the design of the stroller shelter. Rounded edges reduce the risk of injuries, and the height of the structure is designed so that small children cannot climb onto the roof without assistance. If desired, each parking space can be locked with a conventional padlock.
Powder-coated aluminum panels with EPDM seals ensure a weatherproof construction that requires minimal maintenance and retains its appearance for years.
- Standard height: 1710 mm (height may vary slightly depending on levelling)
- Standard width: 8-stroller module 5006 mm with additional sections addable to the 8-stroller module (+2478 mm per section)
- Standard depth: 1222 mm (1290 mm including base plates)
- Free space per section: 2380 mm wide, 1600 mm high, 1180 mm deep
- Module weight: 8-stroller 209 kg
- Frame profiles: 40×40×4 mm, 30×30×3 mm, 60×40×4 mm, 100×40×4 mm (front and partial roof)
- Base plates: 10 mm aluminium, welded to the 30×30×3 frame profile
- Material grade: Aluminium, EN-AW 6060 (all structural profiles and base plates)
- Panel thickness: Side and rear panels 2 mm aluminium, roof panels 4 mm aluminium
- Panel-to-frame seal: EPDM rubber gasket between panel and profile
- Edge treatment: No sharp edges or corners
- Surface finish: Powder-coated, corrosion class C3 (ISO 12944‑2); optional RAL colour from catalog included in the price
- Fastener finish: Corrosion class C3 (ISO 12944‑2)
- Suitable for: All stroller types
- Application: Residential and public environments, indoor and outdoor
- Security: Compatible with standard padlocks for secure stroller storage
- Child safety: Roof height is designed so kindergarten-age children cannot climb onto the roof without help
- Design standards: Designed per EN 1991‑1‑3; aluminium frame design per EN 1999; production per EN 1090‑3
- Maximum distributed load: Pq = 4.5 kN/m²
- Maximum point load: Pk = 0.7 kN
- Corrosion protection: Class C3, suitable for outdoor conditions (ISO 12944‑2), applies to both the structure and fasteners
- Cleaning: Clean the powder-coated surface with mild soap and water; avoid abrasive cleaners or solvents that could damage the finish
- Inspection: Periodically check fasteners, and ground anchoring, especially after winter or storm conditions
- Packaging: Fixed on a wooden pallet, wrapped in plastic film
