E-LINE SOLEN

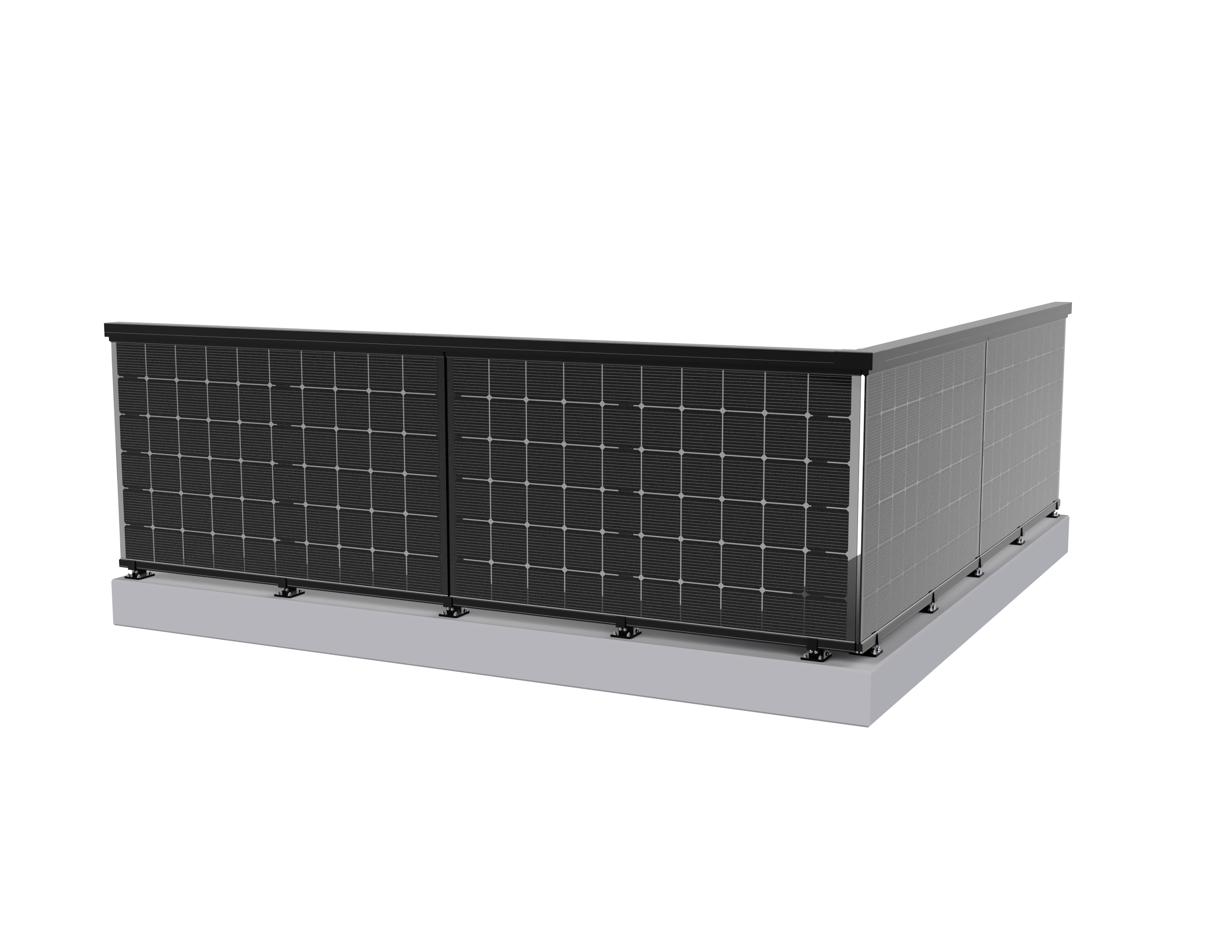

• Installation type: Side or top-mounted

• Standard height: depends on national regulations; minimum 1.0 m above walking surface

• Maximum structural height: 0.89 m

• Post profile dimensions: 46×46 mm

• Handrail dimensions: 97×64 mm

• Horizontal profile dimensions: 25×37 mm

• Glass type: Laminated / laminated and tempered (EN 14449)

• Glass thickness: Nominal 8.76 mm

• Total railing thickness: 51 mm

• Post spacing: determined by national requirements and load class

• Posts: Aluminium EN-AW 6005A-T6

• Handrail 97×64 mm: Aluminium EN-AW 6060-T66

• Horizontal profile 25×37 mm: Aluminium EN-AW 6063-T66

• Glass: Laminated or laminated & tempered safety glass (EN 14449)

• Anchors: Acid-resistant stainless steel A4

• Screws: Stainless EVO screws, corrosion class C4

• Mounting components: Ruspert-coated steel components, corrosion class C3

• Aluminium profiles: Powder-coated

• Handrail end caps: Powder-coated

• Glass edge finish: Visible edges polished; remaining edges factory-ground

• Fasteners: Uncoated for easier serviceability

• Base structure: Concrete or timber

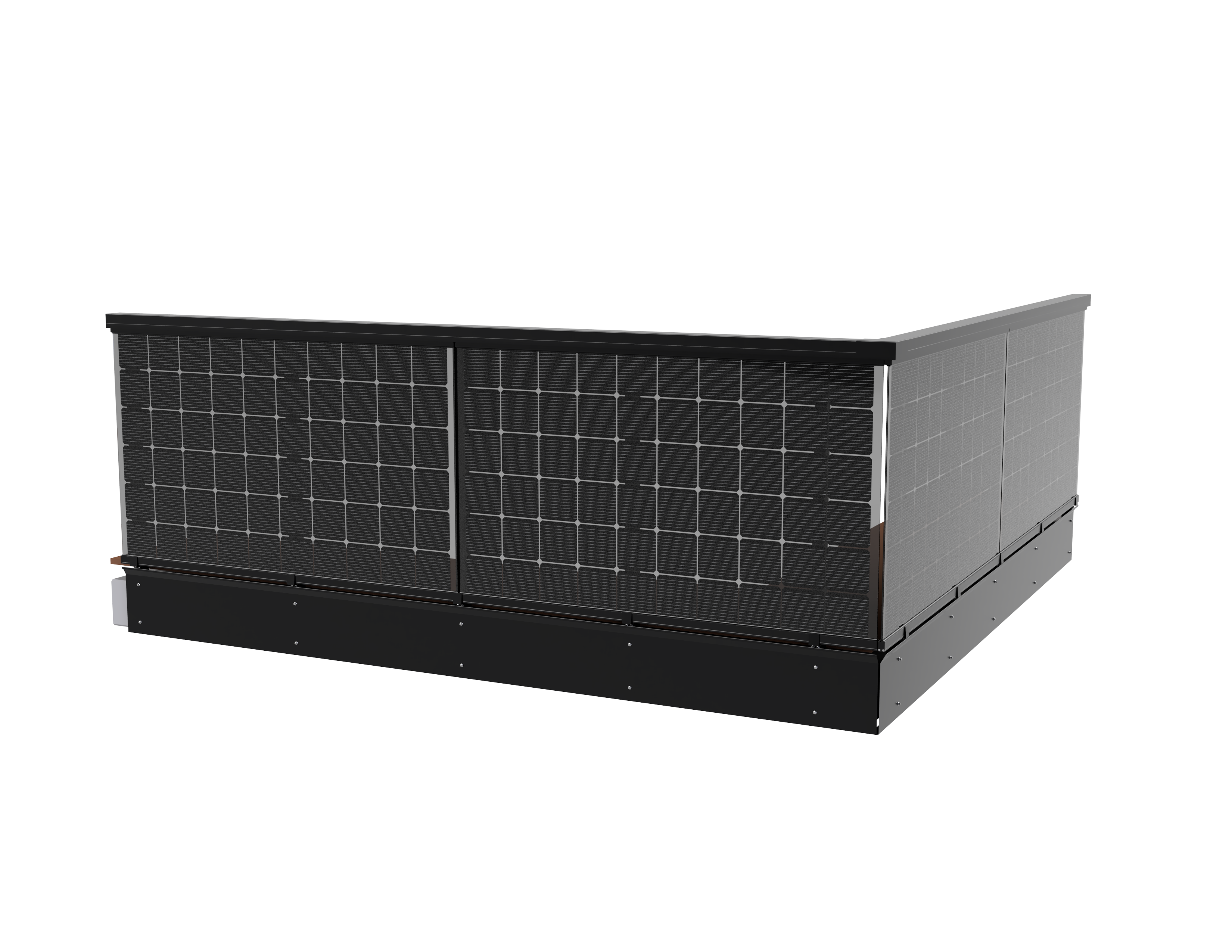

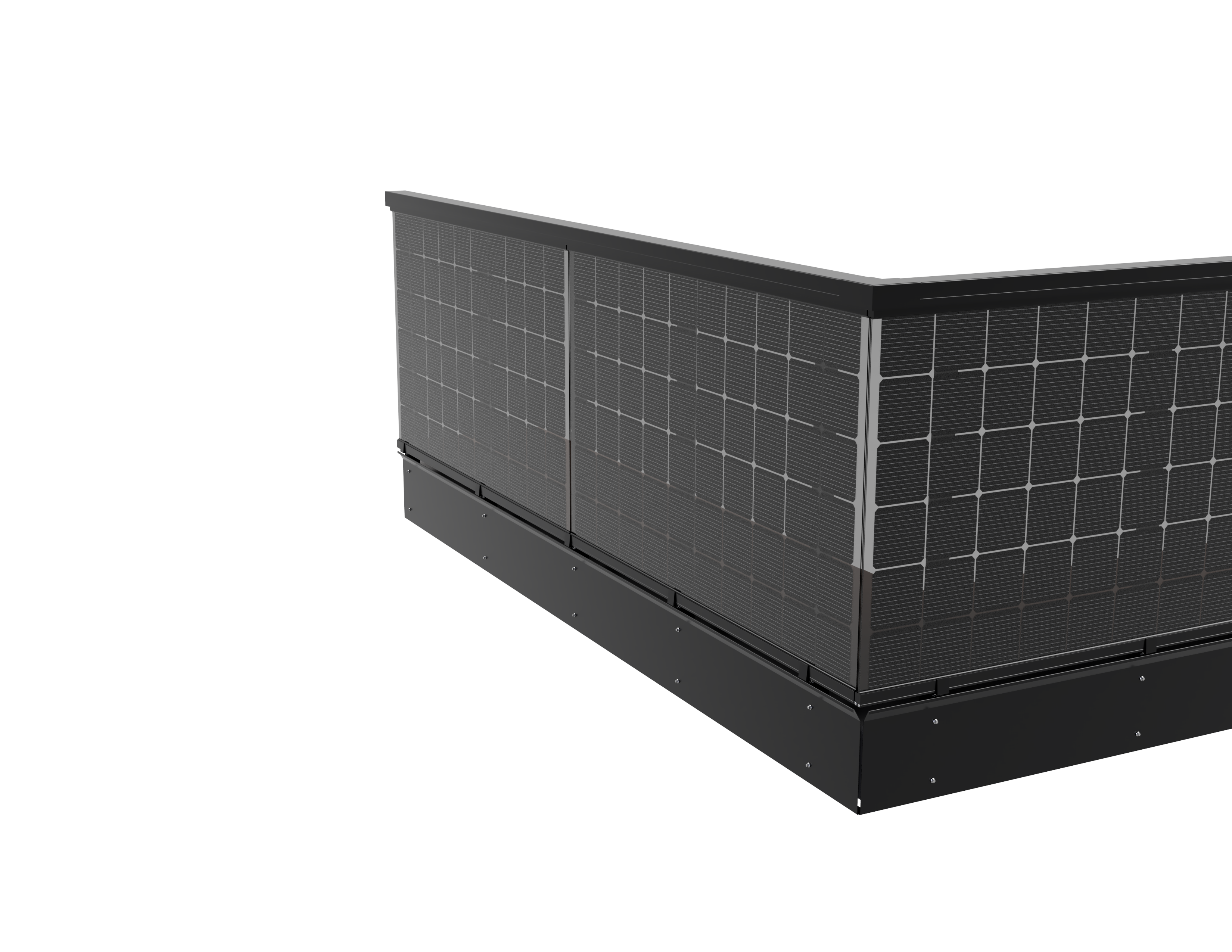

• Installation method: Side-mounted

• Concrete class: C25/30 (EN 206)

• Minimum concrete thickness: 160 mm

• Minimum embedment depth: 180 mm

• Anchor type: Hilti HSA-R M12×145 mm (1 pc per post)

• Minimum timber structure height: 180 mm

• Timber structure thickness: 90 mm total

• Timber fixing set: Rothoblaas VGS EVO 11×110 mm + HU510 washers (3 pcs per post)

• Compliance standards: EN 1991-1-1, EN 1999-1-1, EN 1990

• Post bending resistance: Rd = 2.5 kNm

• Maximum line load (handrail height): Qk = 1.0 kN/m

• Maximum point load (glass): Qk = 1.0 kN (NS 3510)

• Pendulum impact resistance: 2(B)2 (EN 12600:2002)
