BICYCLE WASH STATION
A space-saving bicycle wash station with a stabilising wheel channel and drain basin for clean, controlled bike cleaning.
2888,59 €
- Description
- Technical Specifications
- Material and Finish
- Performance and Application
- Maintenance Information
- Packaging and Delivery

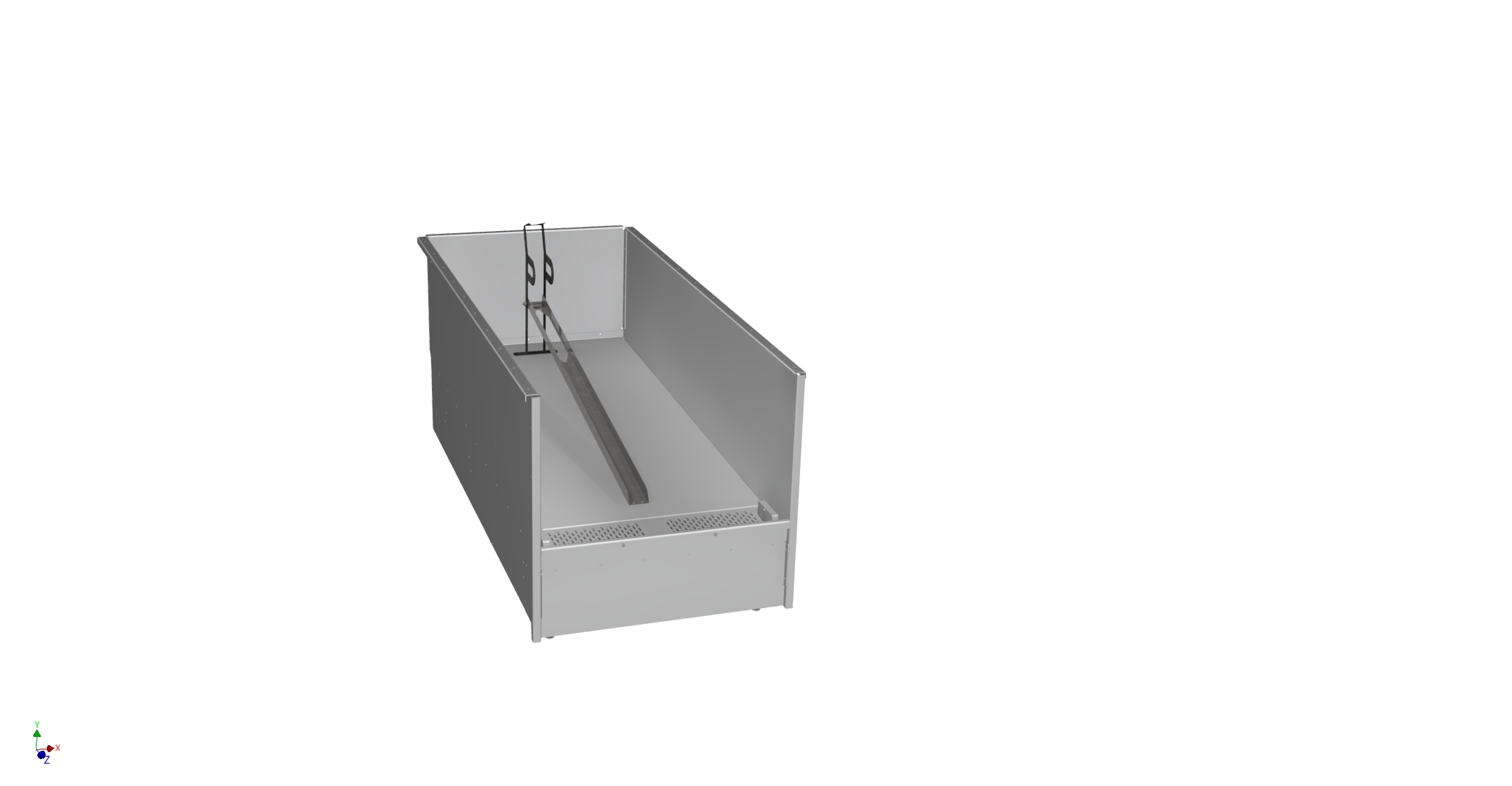

A space-saving bicycle wash station built from bent aluminium panels, riveted and bolted together with a wheel-stabilising channel running through the centre. An overflow drain basin and easily removable maintenance hatches make routine cleaning and upkeep straightforward.
The base version can be extended with a roll-in ramp and raised side and end walls to keep the surrounding area cleaner. The station stands freestanding on six adjustable feet.
- Standard height: 840 mm (1340 mm with raised side/end panels)
- Standard width: 870 mm
- Standard depth: 1930 mm
- Add-ons: Roll-in ramp; raised side and end walls
- Weight: 72 kg without ramp and raised walls
- Support: Freestanding on six adjustable feet
- Frame/channel: Wheel channel in DC01 steel; channel ears and fixing in S355 steel
- Material grade: Aluminium, EN AW 5754
- Profile: 20×20 mm, EN‑AW 6060
- Edge treatment: No sharp edges or corners
- Surface finish: Untreated (raw) aluminium — not powder-coated
- Fastener finish: Corrosion class C3 (ISO 12944‑2)
- Panel joining: Aluminium rivets and butyl tape between side and base plates
- Application: Bicycle cleaning and maintenance in residential, commercial and public environments
- Stability: Wheel channel keeps the bicycle steady during washing and maintenance
- Water containment: Drain basin collects water, dirt and debris during washing
- Access: Optional front ramp for easy roll-in/roll-out and raised side and end walls
- Design standards: Designed per EN 1991‑1‑3; aluminium frame design per EN 1999; production per EN 1090‑3
- Corrosion protection: Class C3 on fasteners, suitable for outdoor conditions (ISO 12944‑2)
- Maintenance access: Hatches open easily for cleaning the drain basin and channel; upper panels can be removed when needed
- General care: Untreated aluminium does not require recoating; rinse the basin regularly to prevent debris build-up in the drain channel
- Packaging: Fixed on a wooden pallet, wrapped in plastic film
- Transport protection: Padding and reinforcement used between the package and securing straps to prevent damage during transport
